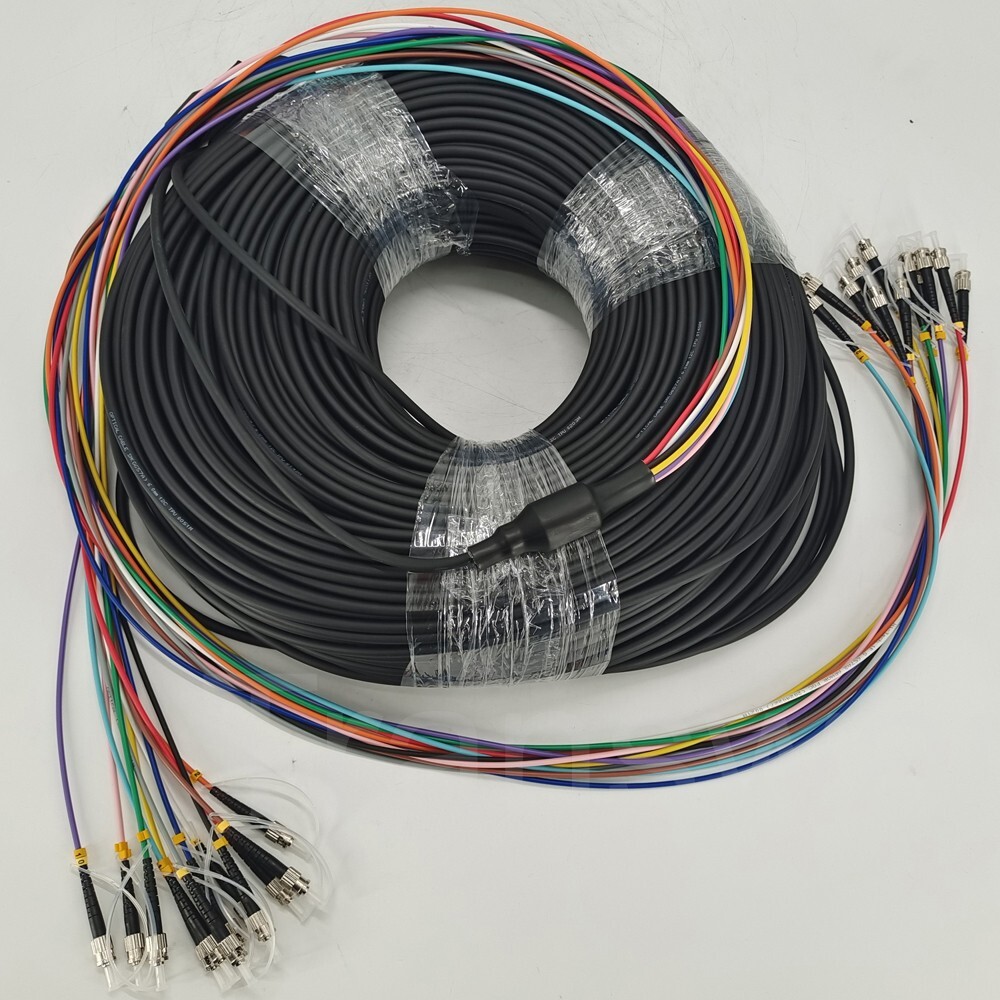

Features:
- Connectors with Individual colored PVC Tubes and Numbers for easy identification
- Heat Shrinkable Sleeve protects the Breakout Connectors
- Armord cableswith Excellent crush resistance to withstand crowd and vehicle traffic for stadium and arena venues; LSZH Jacket, Outdoor, field proven cables are easily deployed and retrieved for remote news gatherings and sporting events
- 8 to 12 Single-mode fibers, higher fiber counts are available on request; Different Composed Fiber Connectors are available.
- Distribution Broadcast fiber optic cables are immune to electro-magnetic and radio frequency interference
Specs:Connector Type: ST/PC, FC/PC, SC/PC, LC/PC, different Composed Connectors are available.Fiber Mode: OS29/125μm SinglemodeFiber Grade: G.657.A1Fiber Strands:: 8 or 12 FibersJacket Material: LSZHFiber Diameter: 6.0mmConnectors' Breakout Length: 100.00 MM
Minimal Bending radius: >30DTensile Load: 1200/800N (Short/Long Term)Compression resistant strength: ≥3000N/100MMInsertion Loss: ≤0.1dB
Return Loss:≥52dB
Jacket Type: Indoor/OutdoorOperating Temperature: -40 to 85°CStorage Temperature: -40 to 85°CFiber Cords Structure: Outer Jacket + Aramid Yarn + Steel Tube + Fiber
Optical Branching Device (Aluminium alloy)Sleeve Protect the breakout partsWe provide the customized Cables with the different Fiber Strands, Fiber Types, Connector Types & Cable length etc..............so if you can not find what you need, please feel freel to contact us at
