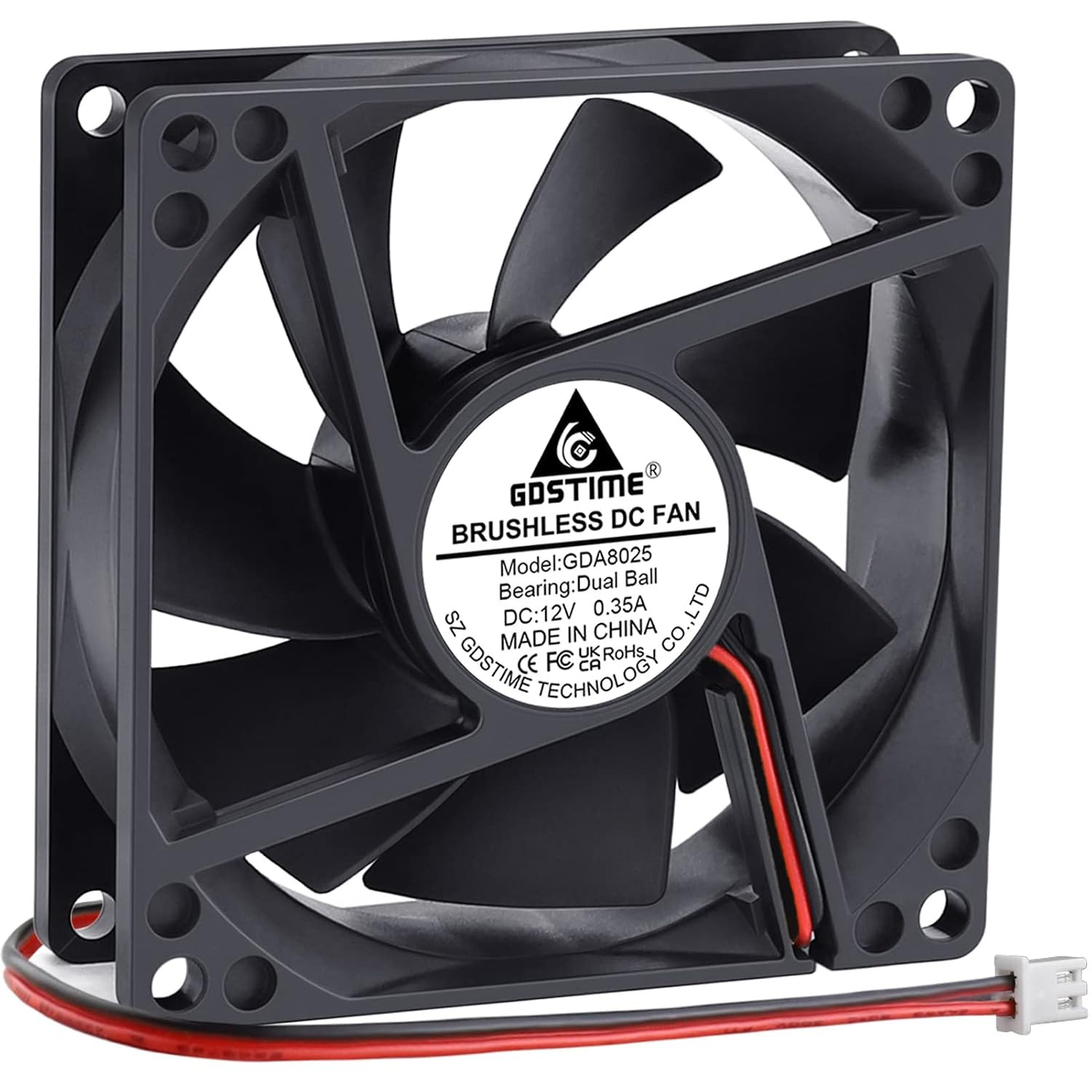

Product description Dual Ball Bearings 4500RPM 80mm fan

8cm format is ideal for compact PC cases (HTPC, ITX, Small Form Factor) and other chassis (intake & exhaust), replacement fan for NAS and other devices, etc.

• Package include: 1pcs fan include fan grill and mounting screws
• Operating Temperature: -10℃ - 75℃; Storage Temperature: -40℃ - 80℃
• Dimension of outer the frame is 80mm(L) x 80mm(W) x 25mm(H)
• The size of fan in inch is 3.15in(L) x 3.15in(W) x 1in(H)
• The center to center distance beween the mountiong holes is 71.5mm/2.81in.
• Operating Voltage Range：5.5V to 13.8V.; Start up voltage is 3.9V.
• Rated Current: 0.35Amp; Speed: 4500RPM; Air flow: 59CFM; Noise:43dBA
• Connector: XH2.54-2Pin; Lead wire: UL Type (+): Red wire ; (-): Black wire. This is a two wire cooling fan;
• Bearing Type: Dual Ball Bearings ; Life: working up to 50000h at 25 degrees.
• Please Comfirm the Fan Size, Voltage, Connector and other parameters before purchase.

Dual Ball Bearings

• Working up to 50000h at 25 degrees.

Metal Fan Grill

• Protect your Fingers and keep cable damage from blades.

Screws

• 4* Fan Screws

Connector

• 2PIN (Red: "+"; Black: "－")
• 2.54mm Connector

Add to Cart Add to Cart Add to Cart Customer Reviews 4.3 out of 5 stars 72 4.4 out of 5 stars 1,289 4.7 out of 5 stars 78 4.4 out of 5 stars 5 4.6 out of 5 stars 221 — Price — no data $11.99$11.99 $12.99$12.99 — no data $14.99$14.99 — no data Connector 2-PIN 2-PIN 2-PIN 2-PIN 4-PIN 2-PIN Speed 2800RPM 4500RPM 2800RPM 4500RPM 5000RPM 3500RPM Airflow 43.6CFM 59CFM 43.6CFM 59CFM 64CFM 50.2CFM Noise 31dBA 43dBA 31dBA 43dBA 44.8dBA 37dBA Voltage 12VDC 12VDC 24VDC 24VDC 12VDC 48VDC Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.4 out of 5 stars 152 4.1 out of 5 stars 43 4.3 out of 5 stars 72 4.4 out of 5 stars 1,289 4.4 out of 5 stars 1,289 4.4 out of 5 stars 1,289 Price $10.99$10.99 — no data — no data $12.99$12.99 $13.99$13.99 $16.99$16.99 Connector 2-PIN 2-PIN 2-PIN 2-PIN 2-PIN 2-PIN Speed 4500RPM 4500RPM 2800RPM 2500RPM 2500RPM 2200RPM Airflow 26.2CFM 22.7CFM 43.6CFM 54.8CFM 83.2CFM 121CFM Noise 34dBA 36dBA 31dBA 31.2dBA 35.7dBA 32dBA Size in inch 2.36x2.36x0.79in 2.36x2.36x1in 3.15x3.15x1in 3.62x2.62x1in 4.72x4.72x1in 5.51x5.51x1in

• Dimension of outer the frame is 80mm(L) x 80mm(W) x 25mm(H) / The size of fan in inch is 3.15in(L) x 3.15in(W) x 1in(H); The center to center distance beween the mountiong holes is 71.5mm/2.81in.
• Operating Voltage Range：5.5V to 13.8V. (overtake to 13.8V, it can also work. but not safe, and seriously affects lifespan of fan.); Start up voltage is 3.9V.
• Rated Current: 0.35Amp; Speed: 4500RPM ; Air flow: 59CFM ; Noise: 43dBA
• Connector: XH2.54-2Pin; Lead wire: UL Type (positve): Red wire ; (negative): Black wire. This is a two wire cooling fan; Bearing Type: Dual Ball Bearings ; Life: working up to 50000h at 25 degrees.
• Package include: 1 x 80mm cooling fan; 1x 80mm metal grill; 4pcs M4x35mm screws and nuts( The metal grill is separate with fan and it is mounted by screws)
