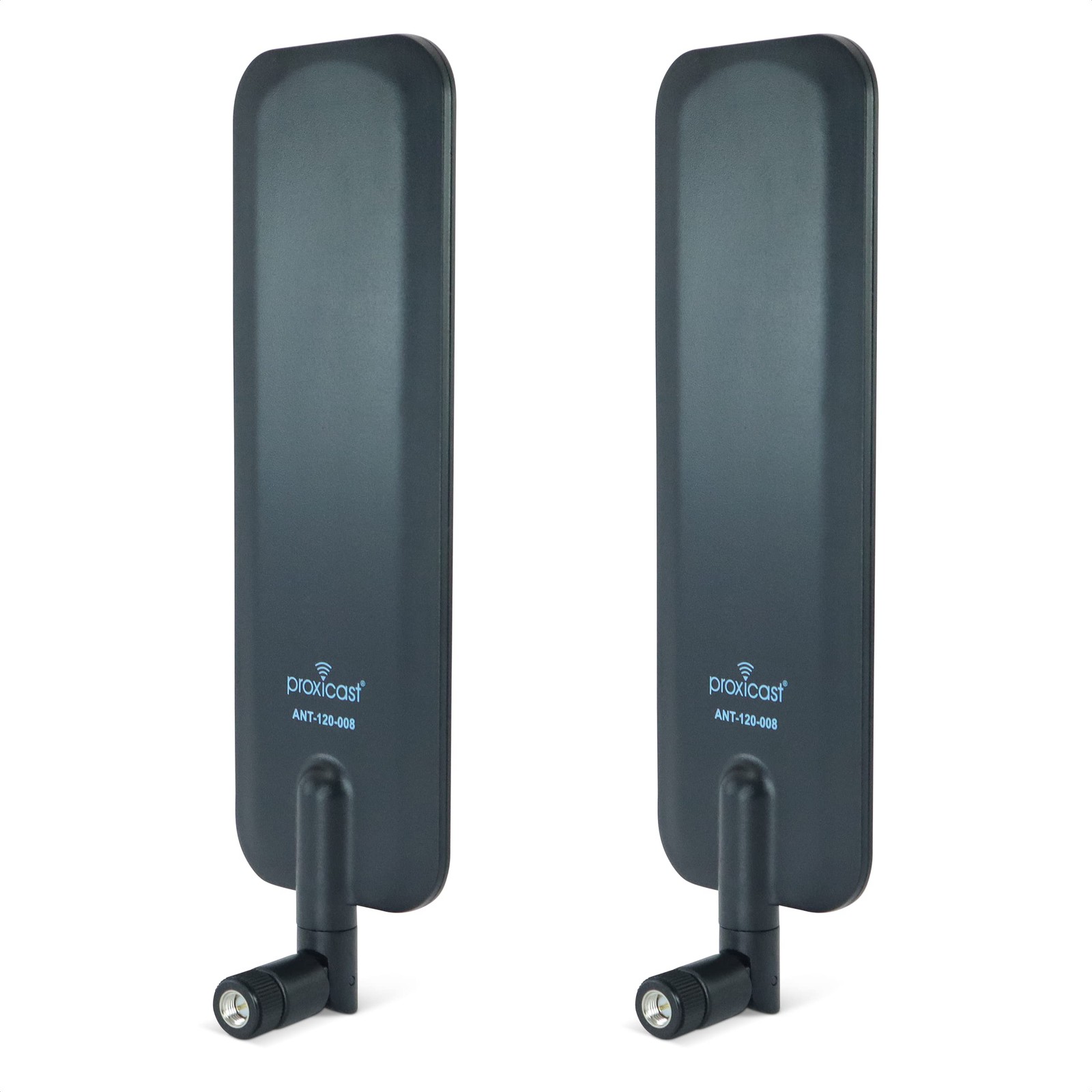

The Flat Swivel Antenna is a high-efficiency mid-gain 4G/5G omnidirectional antenna. The "rubber-duck" style antenna is an 8.7 inch (220 mm) omni-directional antenna that provides up to 6 dBi of gain and supports all 4G & 5G sub 6 frequency bands (600-6000 MHz) used by cellular carriers such as Verizon Wireless, AT&T Wireless, T-Mobile, Rogers, Bell Mobility and Telus as well as most other cellular operators worldwide.
The polycarbonate antenna swivels 90 degrees and rotates 360 degrees for optimal positioning and maximum signal reception and has an integrated SMA male plug connector and ground-plane. This antenna is a smart choice for mobile or stationary applications where extra gain is required.
Compatible with all SMA-based equipment including modems and routers from Cisco, Cradlepoint, Digi, Pepwave, , Sierra Wireless, Sixnet/Red Lion and many others.
Electrical Properties
• Frequency Range: 600-6000 MHz
• mpedance: 50 ohms
• Gain: 3-6 dBi
• Radiation: Omni
• Polarization: Vertical
• VSWR: ADGP < 2.0:1
• Ground Plane: Integrated
Mechanical Properties
• Connector: SMA Male Swivel
• Material : Polycarbonate / Brass - RoHS compliant
• Operation Temp.: -40C to +60C
• Height: 8.7 inches / 22 cm
• Diameter: 2.3 inches / 57 mm
NOT for use with Wi-Fi (RP-SMA) devices
Note: LTE devices should use 2 identical antennas for best results.
USA-based has been designing and building innovative electronic products since 2000.
DIRECT for low gain antennas included with many cellular products
BOOSTS SIGNAL STRENGTH and UPLOAD / DOWNLOAD DATA SPEEDS on AT&T, Verizon, T-Mobile, USCellular, Bell, Telus, Rogers, Telcel, Movistar and most other cellular carriers
COMPATIBLE WITH ANY 4G/5G Sub-6 broadband router, modem, trail camera or amplifier / booster with an SMA antenna jack
Supports all 4G/LTE bands and 5G NR FR1 low frequency bands n71 (T-Mobile), n5 (AT&T, Verizon), n2 (Verizon), n66 (Verizon) and mid frequency C-bands n41 (T-Mobile) and n77 (AT&T, Verizon)
USE ON FirstNet & Citizens Broadband Radio Service (CBRS) equipment
