4G 5G NR LTE 2X2 MIMO Entry-Level Antenna 700-6000MHz for T‐Mobile Verizon AT&T
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
4G 5G NR LTE 2X2 MIMO Entry-Level Antenna 700-6000MHz for T‐Mobile Verizon AT&T
Price: US $59.90
Maswell 4G 5G Antenna Outdoor - 2X2 MIMO External Aerial Cross-polarized Cellular 700-6000MHz for Vodafone Three EE O2 4G LTE 5G Router Modem
  • 4G/5G Full Band: 5G MIMO Antenna is a cross-polarized omni-directional MIMO antenna offers entry-level gain capabilities, with a maximum gain of up to 4.5 dBi. Its broadband frequency is 700-6000 MHz and covers all 4G, LTE, 4G+, 5G NR and 5G Cellular bands around the world. The 2X2 MIMO design enables optimal throughput and quality improvements, resulting in better performance, suitable for outdoor with good signal coverage.
  • Note: 1. Entry-level gain Not for speed competitions. 2. After connecting the antenna, please turn on the external antenna mode of router and restart the router. 3. Outdoor mount at premier locations is strongly preferred to avoid signal blockage by walls, as shown in A+ content. 4. MIMO antenna is suitable for routers with two LTE interfaces. A 4X4 router will need two 2X2 antennas or one 4X4 LTE antenna.
  • Easy Installation: This antenna is designed for Screw or pole mounting. Benefited frm omnidirectional design, it does not need to be aimed at cell towers, making installation easier. 3 meters of coaxial cable allows installation through the wall. For a stable and easy installation process, a U-bolt pole mounting kit is included, which can be securely attached to poles with a diameter of 30 to 50 mm.
  • Broad applications: LTE antenna is compatible with WiFi 6, and IoT Bands: Bluetooth, WiMAX, and Zigbee. Therefore, it has a wide range of applications: 4G/5G Routers, Modems, Smart Meters, Smart Agriculture, and Other IoT and M2M devices.
  • About antenna extension cables: It is not recommended to use low value RG174 or RG58 as extension cables. Please use Professional LMR195 Equivalent Cables or better cables. Note: High frequency 5G bands and above are prone to loss, please do not use cables longer than 5 meters. If any questions, Maswell will help you asap.

  • Various antennas have different installation requirements, but all antennas must be installed scientifically. It is essential to find the best position through surveying.

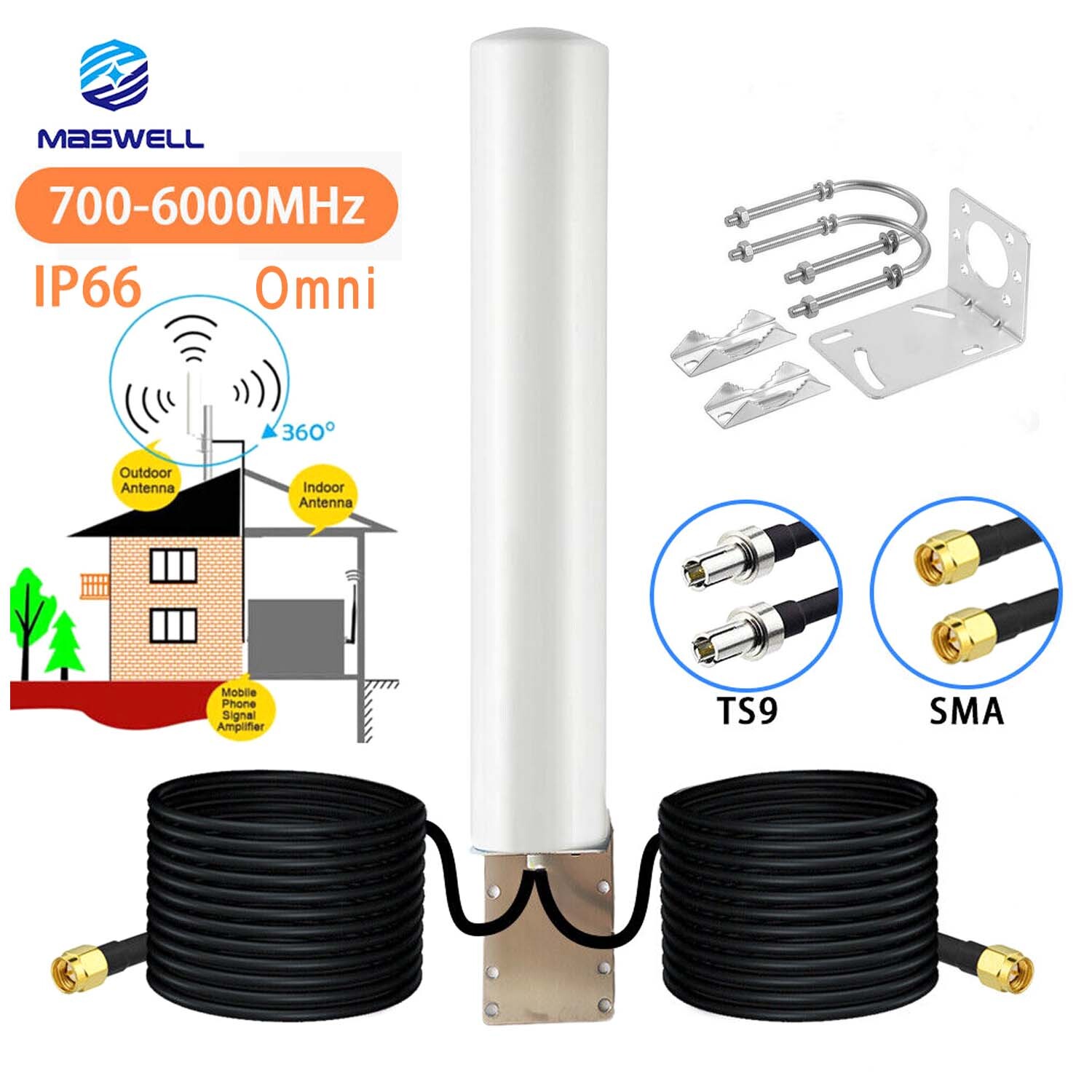

    Maswell 4G 5G MIMO Antenna (up to 4.5dBi) 700-6000MHz

    This is an entry-level gain MIMO antenna designed for outdoor areas with strong signals. It has a full frequency band of 700-6000MHz, covering low-band GSM 3G 4G LTE 4G+ (LTE-A) 5G and high-band 5G. Let your router have more frequency bands to automatically switch. Improved signal stability.

    If the signal of your router is also blocked by the house, this 4G/5G MIMO antenna will solve your problem.

    Will it improve my signal?

    The elements in this antenna are similar to those inside most cellular and WiFi Internet gateway/routers. Placing the antenna next to the gateway/router will not improve your signal. Placing this antenna away from the gateway/router in a location with better signal coverage will improve signal quality and data throughput speeds. Maximize the values of SINR and RSRQ, not RSSI, RSRP or "bars".

    Technical SpecificationsFrequency Range700-6000 MhzPolarizationCross PolarizationGainUp to 4.5 dBiV.S.W.R<2.0Impedance50 OhmCable2x 3meters coaxial cablesConnector Type2 Leads SMA-Male AdaptersOperating Temperature-40°C to +85°CRelative HumidityUp to 95%Vibration10 to 55Hz with 1.5mm amplitude for 2 hoursMaterialABSSome SIM routers require RP-SMA plug, please search for Maswell RP-SMA adapter.

    700-6000MHz, compatible with Global Cellular 3G, 4G, 4G+, LTE-A, 5G, 5G NR

    WiFi Bands: Supports most WiFi and IoT bands - WiFi 6, Wimax, Bluetooth, Zigbee, IoT, etc.

    No matter what protocol you use, this antenna is suitable for your wireless application

    All supported LTE bands: B1, B2, B3, B4, B5, B7, B8, B11, B12, B13, B14, B17, B18, B19, B20, B21, B22, B25, B26, B28, B29, B30, B32, B34, B37, B38, B39, B40, B41, B42, B43, B46, B47, B48, B50, B51, B53, B65, B66, B67, B69, B70, B71, B74, B75, B76, B85, B103, B106 etc.

    All supported 5G frequency bands: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n46, n47, n48, n50, n51, n53, n65, n66, n67, n70, n71, n74, n75, n76, n77, n78, n79, n80, n81, n82, n83, n84, n85, n86, n89, n 90 , n91, n92, n93, n94, n95, n97, n98, n99, n100, n101, n105 etc.
