Main Parameters
Product Name

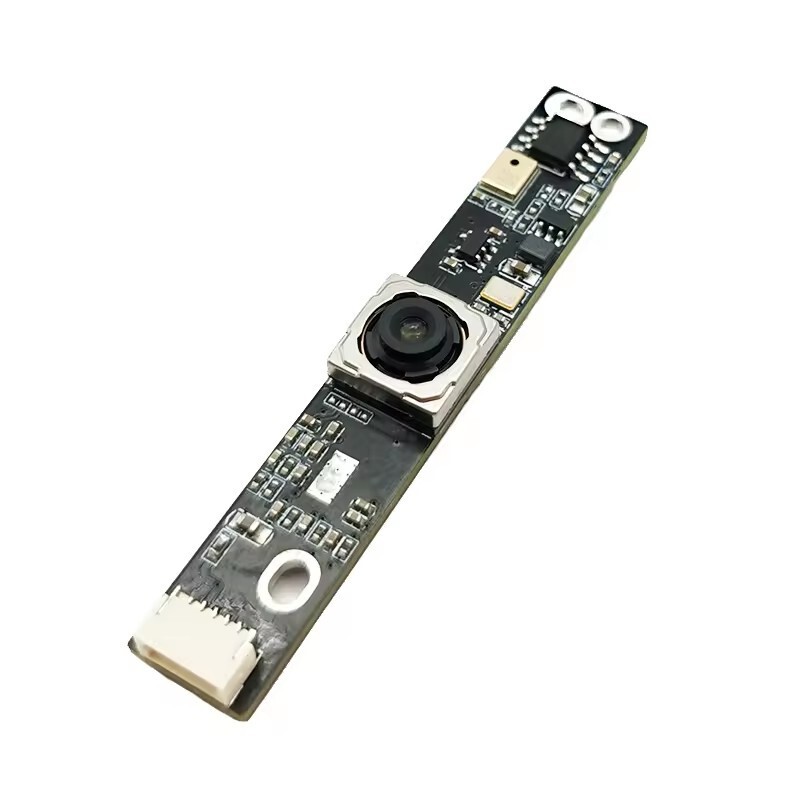

12MP 4K USB2.0 Camera Module
Product Code
WN-L2403K389
Module Size
62*10mm
Image Sensor
1/2.55-inch CMOS Sensor
Max. Resolution
4000H* 3000V
Pixel Size
1.4*1.4μm
Output Format
MJPEG, YUY2
Field of View
81.6°
Lens
EFL: 4.25mm, F/No: 1.8±5%, 6P+IR 650nm
Audio Input
Digital Microphone
Focus Mode
PDAF Speed Autofocus
Shutter Mode
Electronic Rolling Shutter
Output & Power Supply
High Speed USB2.0
Interface
5PIN 1.0mm Connector (SM05B-SRSS-TB)
Controllable Parameters
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Contrast, Exposure
Supported OS
UVC-compliant, Plug and Play for Windows, Android, Linux, Mac OS, etc.
Connection Cable
Default1.0 Meter USB Cable
Supported Resolutions and Frame Rates
Formats
Resolutions
Frame Rates
MJPEG
4000*3000
15FPS
3840x2160
30FPS
2952 x1944
30FPS
2548x1536
30FPS
1600*1200
30FPS
1920x1080
30FPS
1280x720
30FPS
640 x480
30FPS
YUY2
1600x1200
5FPS
1920x1080
5FPS
1280x720
10FPS
640X480
30FPS
Working Conditions
Working Voltage
DC 5V
Working Current
270mA
Working Temperature
-20°C ~ 60°C
Storage Temperature
-20°C ~ 85°C
Humidity
80 ~85%
