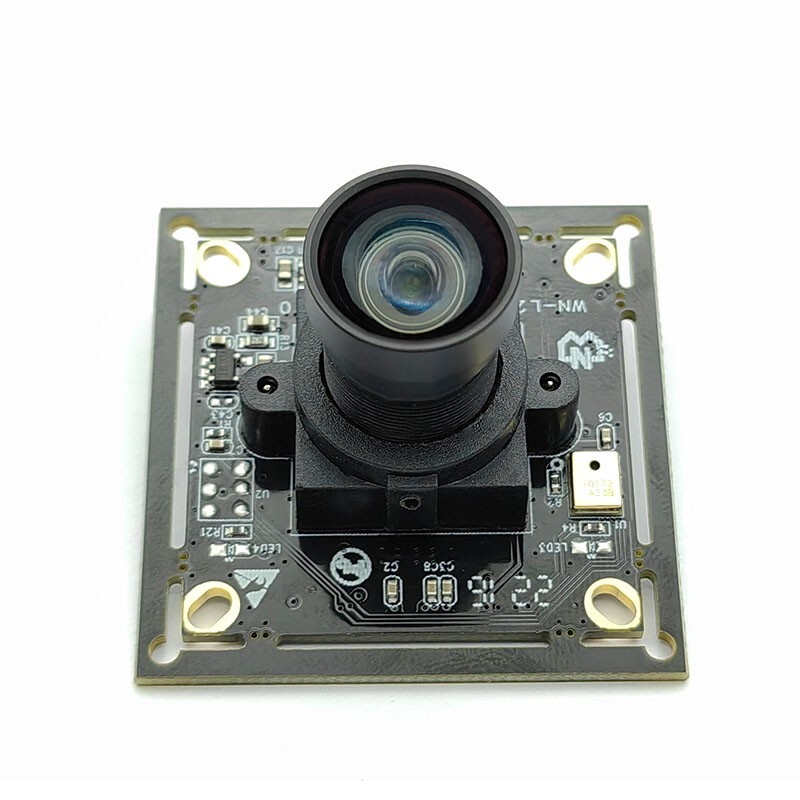

8MP 4K USB2.0 Camera Module
this 8MP USB camera module adopts the 1/2.8-inchIMX415CMOS image sensor with maximum resolution of 3840×2160at 30fps frame rate. Mini size, 95° FOV, high speed USB2.0 interface, default 1.0 meter USB cable, UVC-compliant, plug and play.Main Parameters
Product Name
8MP 4K USB2.0 Camera Module
Product Code
WN-L2104.K215L
Module Size
38*38mm
Image Sensor
1/2.8-inch IMX415 CMOS Sensor
Max. Resolution
3840 H x 2160 V
Pixel Size
1.45*1.45μm
Output Format
MJPEG, YUY2
Field of View
95°
Lens
EFL: 3.0mm, F/No: 2.4, 4G2P+IR 650nm
Audio Input
Digital Microphone
Focus Mode
Fixed Focus/ Manual Focus
Shutter Mode
Electronic Rolling Shutter
Output & Power Supply
High Speed USB2.0
Interface
4 PIN 2.0mm Connector
Controllable Parameters
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Contrast, Exposure
Supported OS
UVC-compliant, Plug and Play for Windows, Android, Linux, Mac OS, etc.
Connection Cable
Default1.0 Meter USB Cable
Supported Resolutions and Frame Rates
Formats
Resolutions
Frame Rates
MJPEG
3840x2160
30FPS
2592 x1944
30FPS
2560x1440
30FPS
1920x1080
30FPS
1280x720
30FPS
640 x480
30FPS
YUY2
3840x2160
2FPS
2560x1440
2DPS
1920x1080
5FPS
1280x720
10FPS
640 x480
30FPS
Working Conditions
Working Voltage
DC 5V
Working Current
260mA
Working Temperature
-20°C ~ 60°C
Storage Temperature
-20°C ~ 85°C
Humidity
80 ~85%
