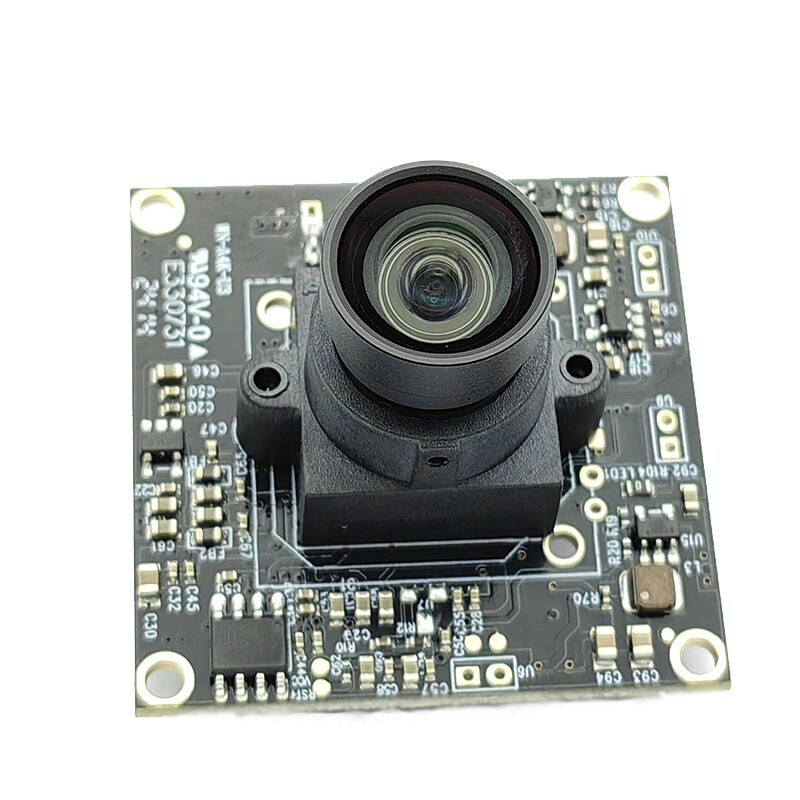

8MP 4K USB3.0 Camera Module
this HD 4K USB3.0 camera module adopts the 1/2.5-inch IMX317 CMOS image sensor with maximum resolution of 3840×2160 at 30fps frame rate. Square design, small size, 95° FOV, high speed USB3.0 interface, default 1.0 meter USB cable, UVC-compliant, plug and play.Main Parameters
Product Name
8MP 4K USB3.0 Camera Module
Product Code
WN-A4K-U3
Module Size
38*38mm
Image Sensor
1/2.5-inch IMX317 CMOS Sensor
Max. Resolution
3840 H x 2160 V
Pixel Size
1.62*1.62μm
Output Format
MJPEG, YUY2
Field of View
95°
Audio Input
No
Lens
EFL: 3.4mm, F/No: 2.0, 4G2P+IR 650nm
Focus Mode
Fixed Focus/ Manual Focus
Shutter Mode
Electronic Rolling Shutter
Output & Power Supply
High Speed USB3.0
Interface
USB3.0 Connector
Controllable Parameters
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Contrast, Exposure
Supported OS
UVC-compliant, Plug and Play for Windows, Android, Linux, Mac OS, etc.
Connection Cable
Default1.0 Meter USB Cable
Supported Resolutions and Frame Rates
Formats
Resolutions
Frame Rates
MJPEG
3840x2160
30FPS
2952x1944
30FPS
2548x1536
30FPS
1920x1080
30FPS
1280x720
30FPS
640x480
30FPS
YUY2
3840x2160
15FPS
2952x1944
30FPS
2548x1536
30FPS
1920x1080
30FPS
1280x720
30FPS
640X480
30FPS
Working Conditions
Working Voltage
DC 5V
Working Current
360mA
Working Temperature
-20°C ~ 60°C
Storage Temperature
-20°C ~ 85°C
Humidity
80 ~85%
