4K Webcam — Block O Series 48MP Sony IMX586 Sensor • F1.2 Lens
Dual-Array Mics • One-Touch Mic Mute
A 4K USB camera built around a 1/2" Sony IMX586 sensor and an F1.2 distortion-free lens — made for video conferencing, webinars, and live streaming. UVC plug-and-play, no drivers needed.
Quick Specs Image Sensor
1/2" Sony IMX586 CMOS, 48MP with 4-in-1 pixel binning, 0.8 µm pixel Effective Pixels
8000 (H) × 6000 (V) Video Output
MJPG / YUY2 Lens
Distortion-free, F1.2, 67° horizontal / 52.8° vertical Focus
VCM autofocus, 20 cm to infinity Low Light
Minimum illumination 0.01 lux Audio
Dual-array digital noise reduction microphones Interface
USB Type-C, USB 2.0 (480 Mbps) Power
5 V ±5%, max 2.3 W Compatibility
Windows XP / Vista / 7 / 8.1 / 10, macOS, Android, Linux 2.6.2 48MP Sony Sensor, True 4K Detail
A large 1/2-inch Sony IMX586 CMOS sensor captures 8000 × 6000 effective pixels and outputs 4-in-1 binned images for cleaner, lower-noise results. Signal-to-noise ratio of 38 dB or better and dynamic range of 72 dB or better keep highlights and shadows under control.
F1.2 Lens for Low Light
A fast F1.2 aperture pulls in far more light than typical webcam optics, with a minimum illumination of just 0.01 lux. The distortion-free lens gives a natural 67° horizontal field of view — wide enough for you and a colleague, tight enough to avoid the fisheye look.
VCM Autofocus, 20 cm to Infinity
A voice coil motor autofocus system holds sharp focus from 20 cm all the way to infinity — close enough to show documents, product samples, or hand-held detail without switching cameras.
Dual-Array Noise Reduction Mics
Built-in dual-array digital microphones with adaptive echo cancellation, automatic gain control, reverberation suppression, and background noise suppression — clear voice pickup without a separate headset.
One-Touch Mic Mute for Privacy
A built-in touch button mutes the microphone instantly. No menu diving, no software — one tap and the room is private. A power indicator light shows status at a glance.
Driver-Free UVC Plug and Play
Fully UVC-compliant over USB Type-C. No drivers, no apps, no wireless setup. Bandwidth use stays under 13%, so it will not choke a busy connection. SDK support is available for integrators.
Wide Temperature, Built to Run
Rated for stable operation from −15°C to 70°C and storage from −40°C to 80°C, with peak audio and video consumption of only 2.3 W. Certified to USB-IF, WHQL, CE, and RoHS standards.
Supported Resolutions (MJPG) 4032 × 3024 @ 15 fps
3840 × 2160 @ 25 fps (4K UHD)
3264 × 2448 @ 30 fps
2560 × 1440 @ 30 fps
1920 × 1080 @ 30 fps
1280 × 720 @ 30 fps

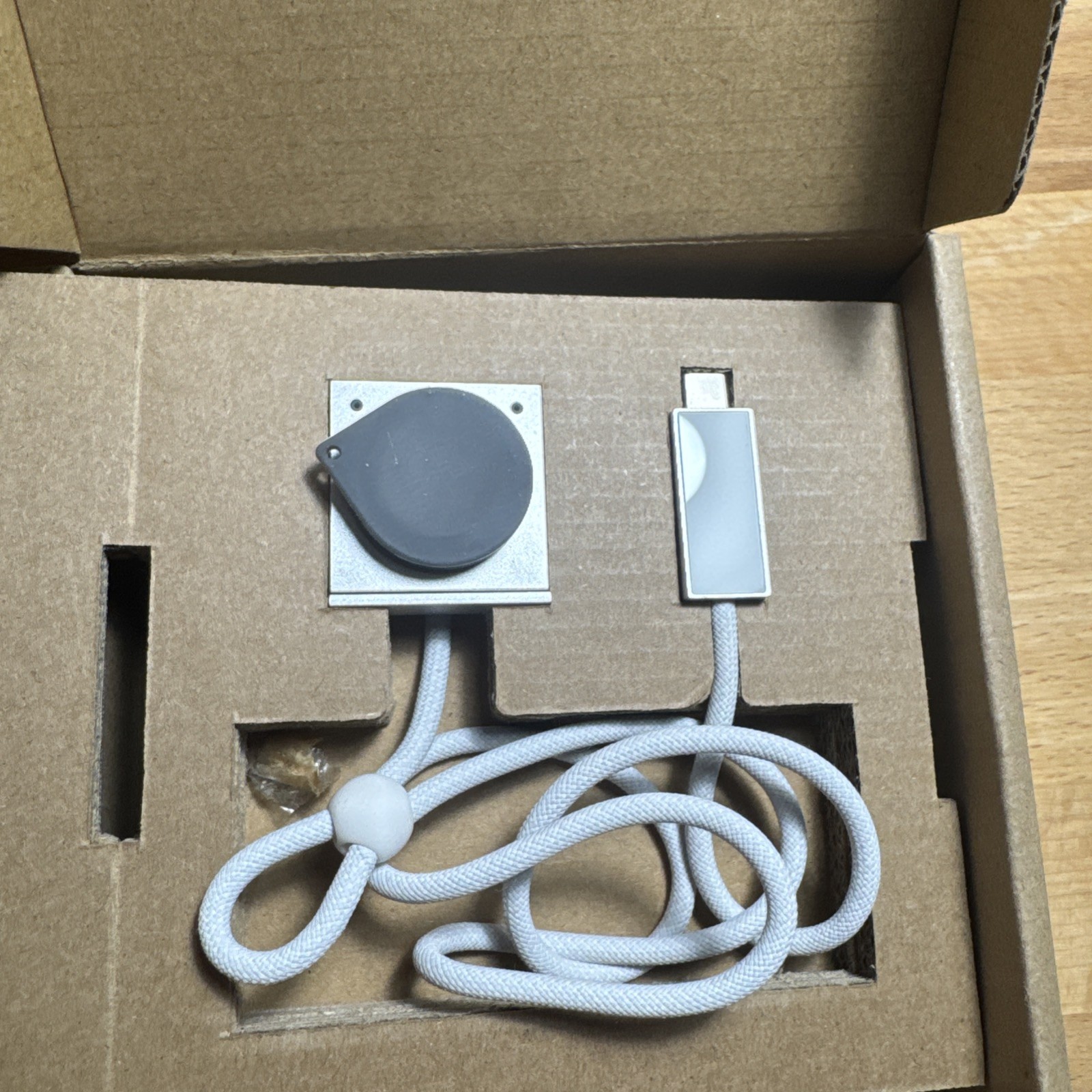

640 × 480 @ 30 fps What's in the Box 1 x Block O 4K Webcam
1 x USB Type-C Cable
1 x User Manual Care & Handling
The lens is an optical component — avoid touching it directly. If cleaning is needed, use a lint-free cloth lightly dampened with 90%+ alcohol. The supplied cable uses a bayonet terminal; disconnect it gently rather than pulling. Backed by a 12-month warranty.
