Designed by UK Chartered Engineer: Patented Omni-Directional 4X4 MIMO AntennaOptimal for Vehicle Applications: High-Gain Performance, 4x4 MIMO Structure, and Stable Omnidirectional Design of Cubic Antennas

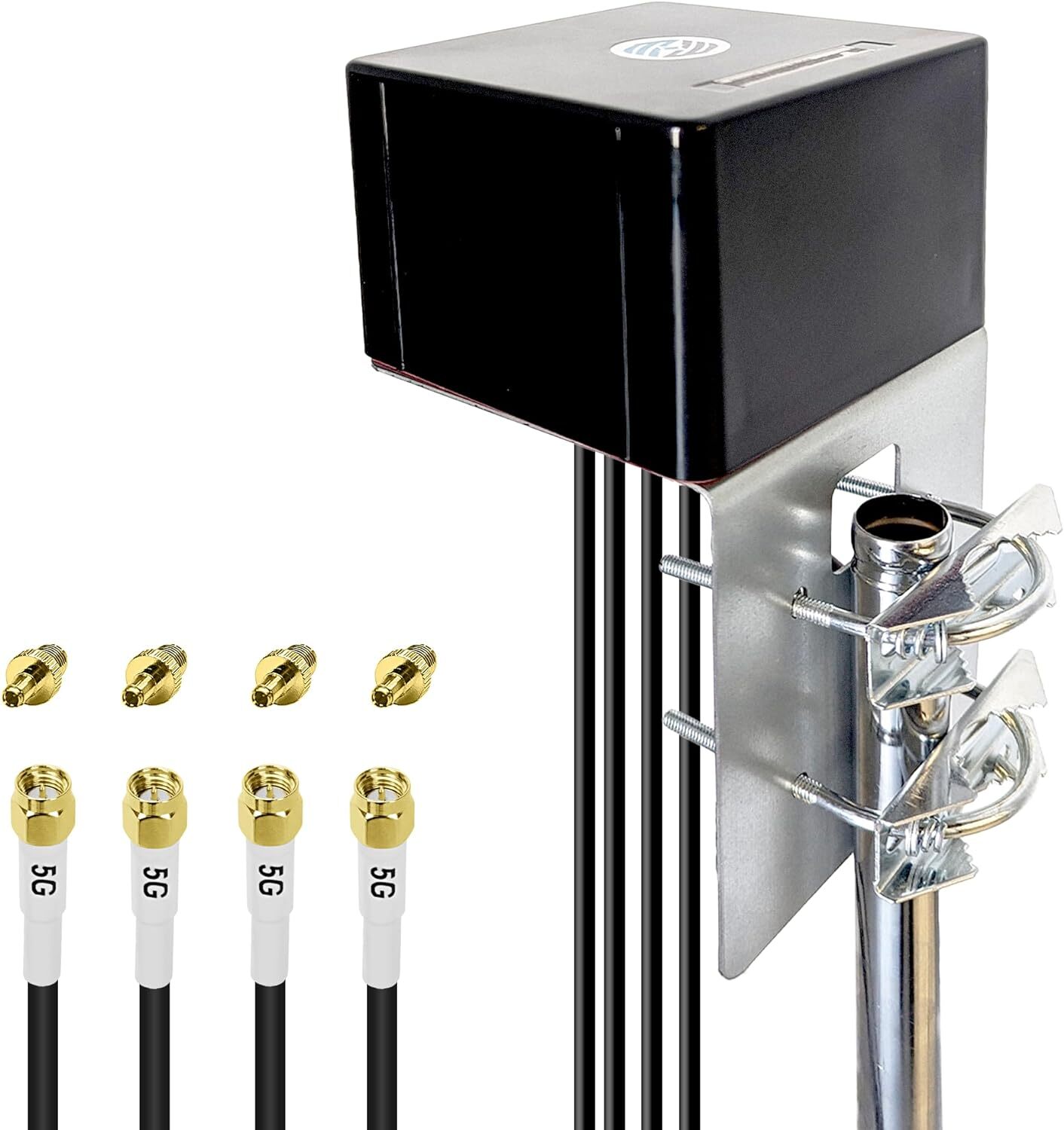

The Maswell Cubic 4C Cross-Polarized Omnidirectional Dipole Antenna serves as a long-term solution for enhancing outdoor cellular data performance, particularly well-suited for motorhome camping, residential, and commercial buildings.
Boasting up to 6dBi (tested with a 20cm cable length), coupled with a 2-meter ultra-low-loss LMR195 equivalent coaxial cable, it significantly outperforms many antennas in the market with only 3dBi gain. This allows for a considerable increase in signal strength, surpassing most antennas available.
The 4x4 MIMO design enables multiple inputs and outputs, maximizing signal stability and data throughput. Its omnidirectional design simplifies installation compared to directional antennas, ensuring signal reception from all directions. The outstanding ease of use and stability make it excel in dynamic performance scenarios.
Installation is simple, but please note the following tips
- After connecting the antenna, enable the router’s external antenna mode
- Find a location with the best signal, at least 3 feet away from the antenna when testing.
- Do not extend the coaxial cable more than 5 meters. It is recommended to use LMR195 equivalent cable with 50 ohm impedance.
- Do not use a Y-cable to connect 2 antenna leads to 1 modem port.
- If the interface is outdoors, roll up waterproof tape.
Highlights
- 4X4 MIMO Design Improved signal quality and data throughput
- LMR195 equivalent cable is better than RG58
- omni antenna easy to install
- Maximize signal quality (SINR, RSRQ) and signal strength (RSSI, RSRP, bars)
600-8000MHz Ultra-Wideband For All Cellular and WiFi Bands
The 4X4 cellular MIMO antennas provide ultra-wideband performance from 600 to 8000 MHz, enabling use across different carriers and technologies and preparing cellular technologies for 5G applications up to 6 GHz as well as Wi-Fi applications up to 7.125 GHz.
The radiation patterns of all Maswell Cubic radiating elements provide a good balance between omnidirectionality, pattern diversity and good radiation capability at the required height, with an average gain of not less than 5 dBi, while remaining future-proof over a wide frequency band Ability.
SpecificationsFrequency Range600-8000 MHzAntenna TypeOmnidirectional External AntennaImprove signal and throughputYes (MIMO Antenna)Improve signal barsNo (4-6dBi)PolarizationCross LMR195 equivalent cable (SMA-Male/TS9)Operating Temperature-40°C to +85°CIngress ProtectionIP67Radome MaterialASA (UV-stabilized)Relative HumidityUp to 95%Vibration10 to 55Hz with 1.5mm amplitude for 2 hours
