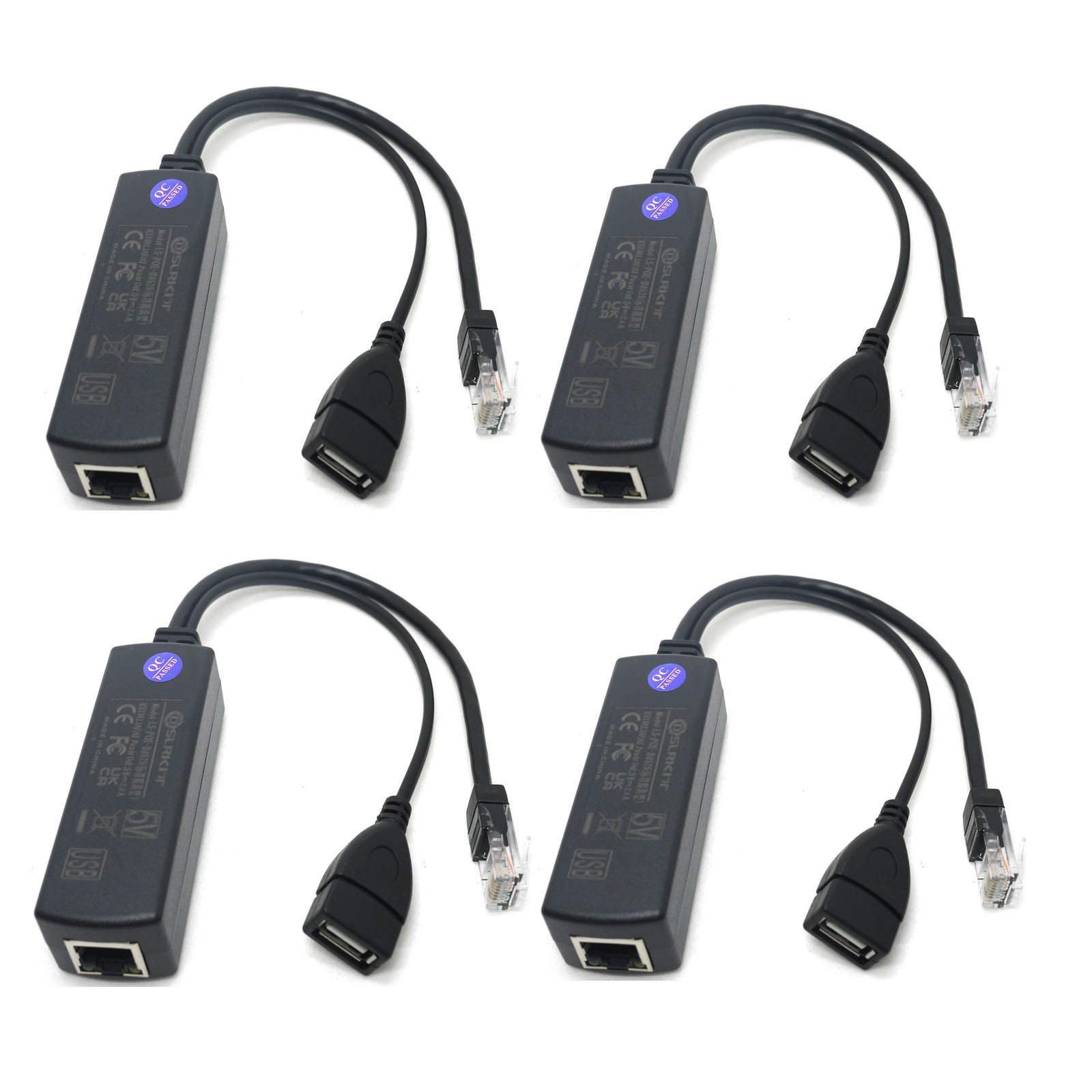

• 48V to 5.2V 2.4A(Max. 13watt) for IP camera, Tablet,Raspberry Pi 4/3B+

The product must be used in conjunction with a PoE switch or PoE injector

Support the IEEE 802.3af/802.3at the Power over Ethernet PoE Switch
Support 48V Unsolicited Power Over Ethernet PoE Switch
Support 48V Unsolicited Power Over Ethernet PoE Adapter

Isolation: 2.5kV
Power Input(RJ45female): DC44~57V
Power Output(USB TYPE A Female): DC5.2V 2.4A
Data&Power INPUT Port: from RJ45 female (Compliant with IEEE802.3af/at PoE)
Data Output Port: RJ45 Male
Power Output Port: USB TYPE A Female.
Data Transfer Rate: 10/100Mbps
Devices will be detected before poe input
Power Pin:support both 1/2(+/-),3/6(-/+) or 4/5(+),7/8(-)
Body size: 80 x 27x 22 mm
DC cable length：165mm
RJ45 Modular Plug cable length：155mm
Weight : 55g

Storage Temperature:-30℃ ~ 70℃

Notice: Some managed intelligent Gigabit PoE switches need to set the LAN port of this connected splitter to Manual 100Mb/s mode in the management Settings of switches, otherwise the power supply may work normally but the network connection will not work, such as the following switch, HP 3500-48G-PoE yl Switch (J8693A)

Only one power indicator shows the working status of the POE.

Item Included:
