Main Parameter:
Module Size

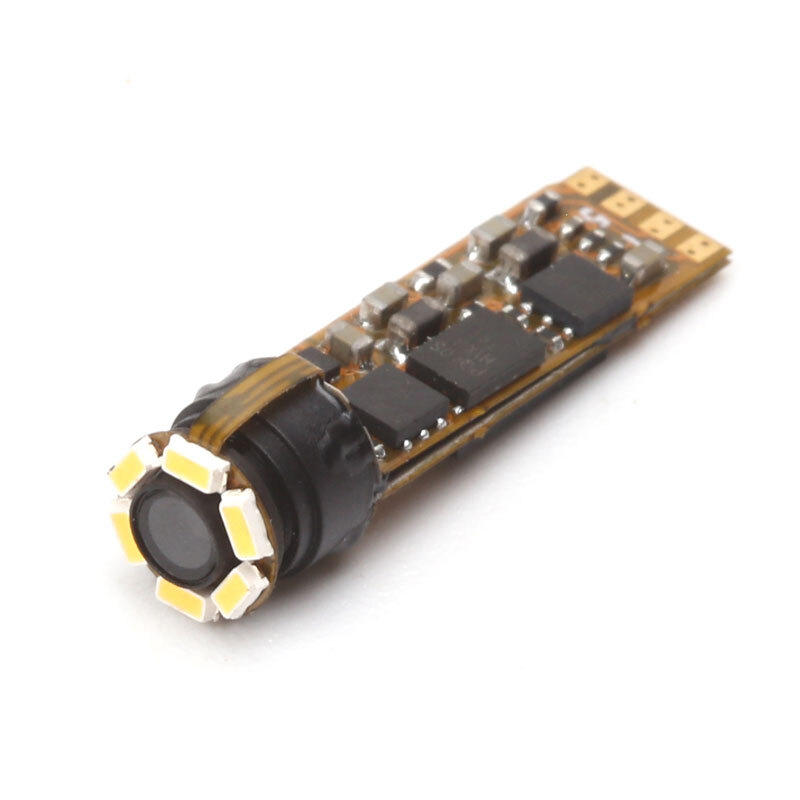

Module size: Length:18.5mm, Diameter: 5MMShell size: Length :27mm, Diameter: 5.5mm
Sensor
1/6-Inch OV2740 CMOS Sensor
Pixel Size
1.4*1.4µm
Resolution
1920 H x 1080 V
Output Format
MJPEG, YUY2
FOV
82°
Lens
Scanning Speed
0.1S
Focus Type
Fixed Focus
Shutter Type
Electronic Rolling shutter
Output and Power Supply
High Speed USB2.0
Interface
USB2.0/Type- C/Micro
Controllable Parameters
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Contrast, Exposure
Supported OS
Windows, Android, Linux, Wince, Mac OS
Cable Length
Default 2.0 Meter USB Cable
LED
5700K-6PCS
Resolution and Frame Rate:
Format
Resolution
Frame Rate (USB2.0)
MJPEG
1920x1080 (1080P)
20FPS
1280x720 (720P)
20FPS
640x480 (VGA)
20FPS
YUY2
1920x1080 (1080P)
5FPS
1280x720 (720P)
10FPS
640x480 (VGA)
30FPS
PIN Definition
Pin No.
Signal Name
Description
1
DM
USB2.0 Data-
2
DP
USB2.0 Data+
3
GND
GND
4
Button photo
5
VCC
5V Power
6
LED
5V
Working Condition
Operating Voltage
USB DC +5V Supply
Operating Current
110mA
Operating Temperature
-10℃~ 60℃
Storage Temperature
-20℃~ 85℃
Humidity
80 ~85%
