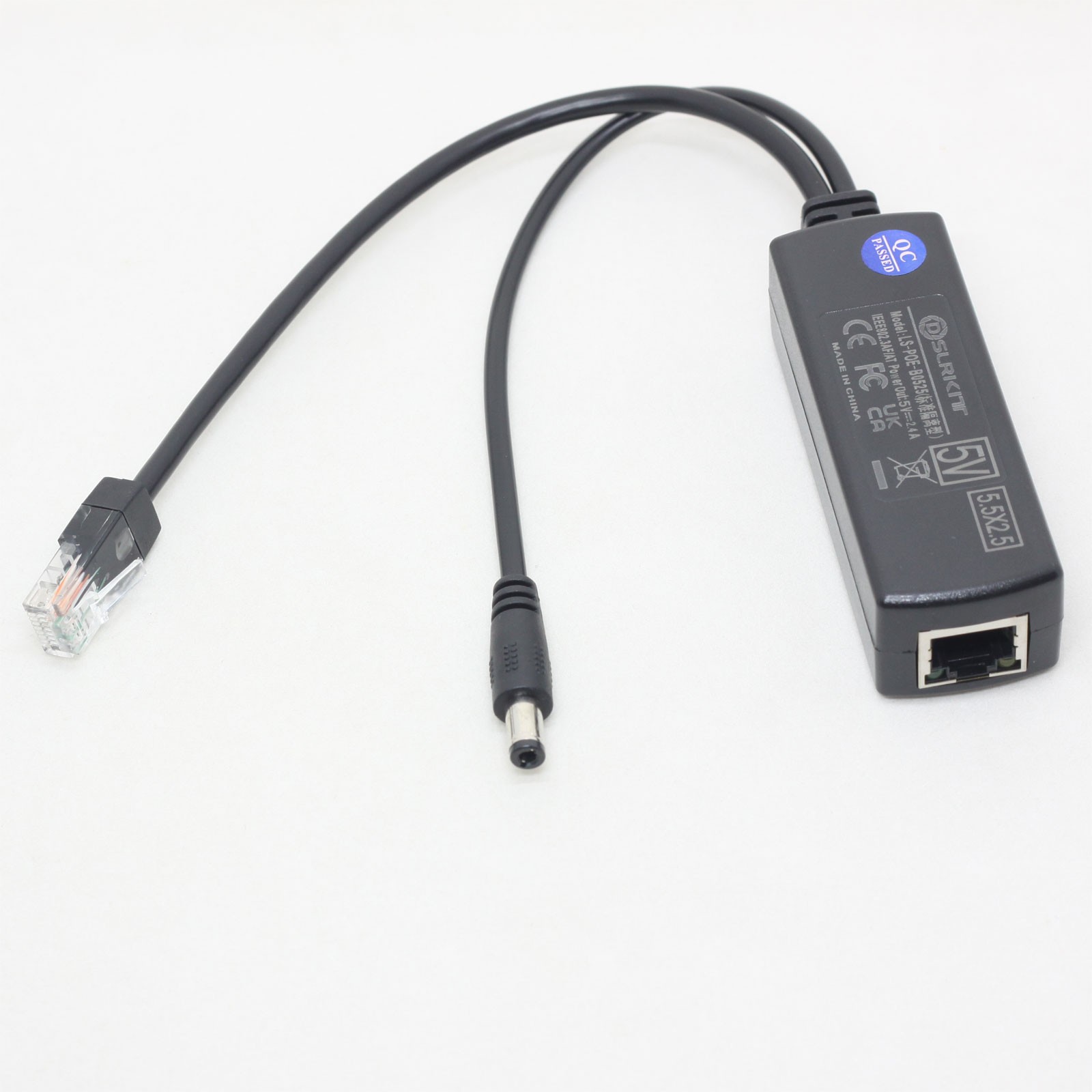

This Active PoE Splitter provides a stable 5V 2.4A DC output through a 5.5x2.5mm plug while maintaining 10/100Mbps Ethernet data transmission. It is designed for powering 5V devices such as Hue Bridge and various smart home controllers.

Features:

• Active PoE splitting, IEEE802.3af compliant.

• Outputs 5V 2.4A (Max 12W).

• Supports 10/100Mbps Ethernet pass-through.

• 5.5x2.5mm DC plug with spring-fork design, also fits 5.5x2.1mm sockets.

• 2.5KV electrical isolation for safety.

• Yellow LED indicates power status (no data LED by design).

Usage Notes:
For 5V DC devices only; not compatible with 12V devices.
If using managed PoE switches(eg. HP 3500-48G-PoE yl Switch/J8693A ), please set the connected port to manual 100Mbps mode in the switch management settings. Otherwise, power may work but the network connection may not be established with some 100Mbps devices.

Specification:

• Input Voltage: PoE within IEEE802.3af/at range via RJ45 female.

• Output Voltage: DC 5V 2.4A [Inner Positive (+), Outer Negative (-)].

• Power Output Port: 5.5x2.5mm DC plug (spring-fork, fits 5.5x2.1mm).

• Data Transfer Rate: 10/100Mbps Ethernet.

• Isolation: 2.5KV.

• Supported Power Pins: 1/2(+/-), 3/6(-/+), 4/5(+), 7/8(-).

• Size: 80 x 27 x 22 mm.

• DC Cable Length: 165 mm.

• RJ45 Plug Cable Length: 155 mm.

• Weight: 55g.

• Operating Temperature: -20°C to 45°C.

• Storage Temperature: -30°C to 70°C.

Package Includes:

• 1 x Active PoE Splitter (5V 2.4A, 5.5x2.5mm DC Plug)
