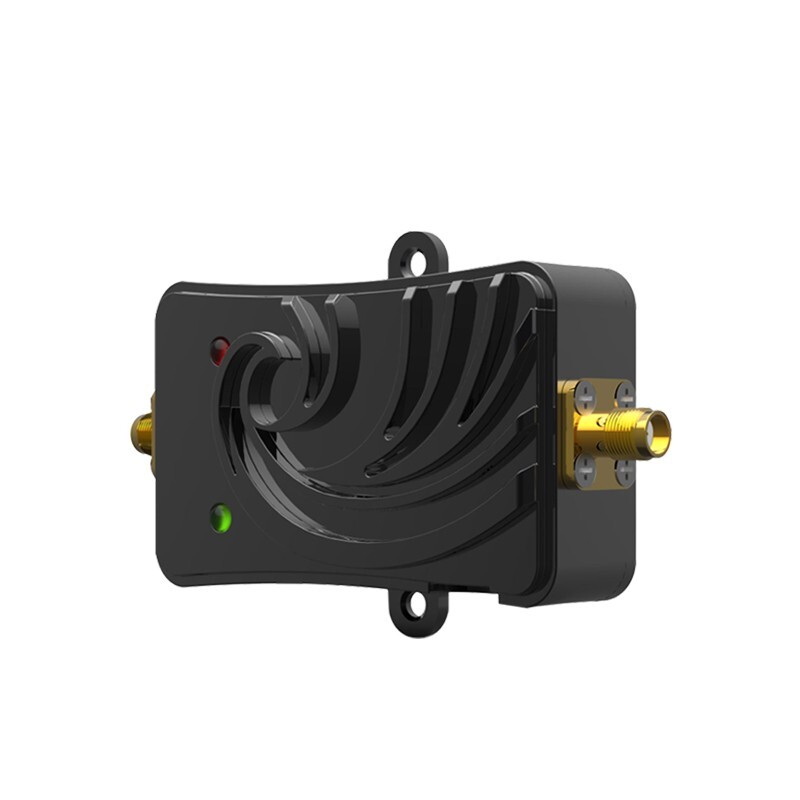

5.8GHz 5W Signal Booster WiFi Router Broadband Range Signal Amplifier Antenna
Price: CN $53.99

5.8GHz 802.11 a/n Signal Booster

HS5805MN1

Key Features

—100X the power,improving the link quality and coverage of certified WLAN devices​—2.5dB ultra-low noise​—Wide 6v to 16v operating input range​—Working with certified IEEE 802.11b/g/n Wireless LAN devices​—Simply plug and play, no software is required

Specifications

Frequency Range: 5.725~5.85GHz​Operating Voltage: 6~16V​Receiving Gain: 15dB±1​Transmission Gain: 20dB±1​Input Trigger Power: Min: 0dBm Max: 10dBm​Maximum Output Power(P1dB): 37dBm(5W)​EVM: 3%@29dBm 802.11a 54Mbps OFDM 64QAM BW 20MHz​DC Supply Current: 700mA@Pout 29dBm 12V​Noise Figure: <3.0dB​TX/RX Switch Time Delay:<1us​LED Indicator: Transmitter: green; Receiver: red​Operating Ambient Temperature: -40℃~+70℃​Operating Humidity: up to 95% rel. humidity​Dimension: 82mm×50mm×21mm​Weight: 0.25Kg net
