Product description Hareware Description

Earphone: 3.5mm audio outputinterface

Touch: USB connector for power supply & touch output

HD interface: For signal transmission

Power: Controls the backlight to save power

Return: Return (Only valid in the OSD menu)

Up/Down: Direction & Backlight shortcut

Menu: Open the OSD/Select (Only valid in the OSD Settings menu)

Small HDMI-compatble Screen

It's a 5 inch tiny screen equipped with a very useful HD port.

Generally it works with most HDMI-compatible device with standard HD interface, but please note that the touch function is just for windows and RPi system.

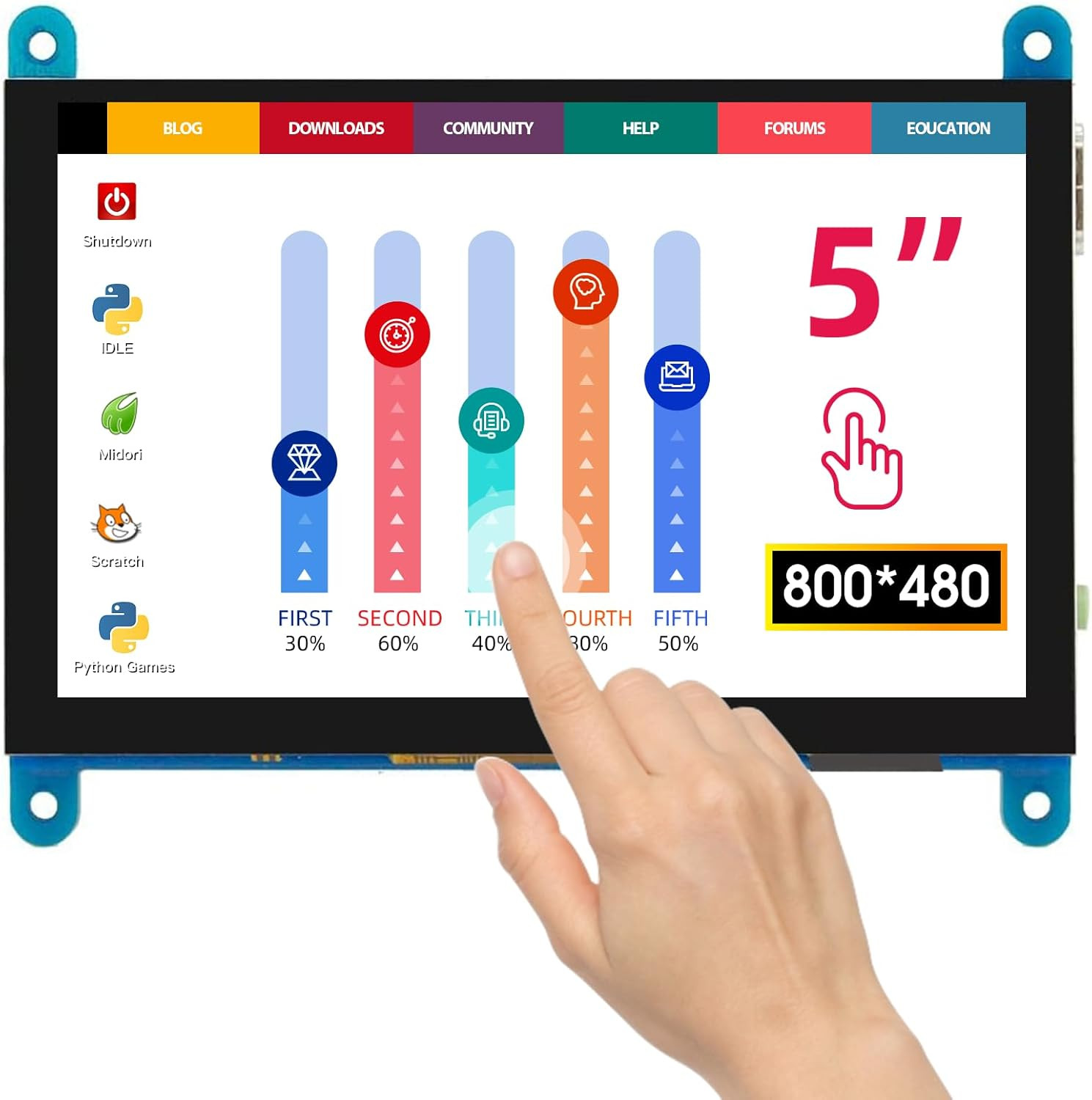

5 Inch 800 x 480 Capacitive Mini Monitor

The resolution of the LCD display is 800 x 480, you can configure the resolution via software, the maximum resolution it supports is 1920 x 1080.

It supports five touch control, besides that, the LCD screen comes with an OSD menu adjustment function.

You can adjust the contrast, brightness, switch button.

Wide Applications

• When works with Raspberry Pi, supports Raspbian, Ubuntu, Kodi, Win10 IOT (need to be configured first), single touch, free driver.
• When work as a computer monitor, supports Windows 10/8/7, plug & play, 5 point touch, free driver.
• Supports popular game consoles, compatible with XBOX, PS, Switch etc, plug & play, no touch.
• When intended for Raspberry Pi 4, please connect to HDMI-0 port.
• When intended for Raspberry Pi 4, for the system after 2021-10-30, for example on Bullseye, please modify "dtoverlay = vc4-kms-v3d" to "dtoverlay = vc4-fkms-v3d" in the config file, otherwise it may fail to start. But on Buster, please comment out "dtoverlay = vc4-fkms-V3D" by adding #.

Package list

• 1 x 5 inch HD Display
• 1 x HDMI-compatible cable
• 1 x Micro USB cable
• 1 x Micro-HDMI-compatible to HDMI-compatible Adapter
• 1 x DVD
• 1 x Copper screw bag

Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.3 out of 5 stars 1,224 4.4 out of 5 stars 436 3.8 out of 5 stars 371 3.8 out of 5 stars 371 4.4 out of 5 stars 436 4.4 out of 5 stars 436 Price $42.99$42.99 $39.99$39.99 — no data $45.99$45.99 $47.99$47.99 $56.99$56.99 Screen Size 5 Inch 5 Inch 5 Inch 5 Inch 7 Inch 7 Inch Screen Type Resistive Capacitive Capacitive Capacitive Capacitive Capacitive Resolution 800x480 800x480 800x480 800x480 1024x600 1024x600 Refresh Rate 60HZ 60HZ 60HZ 240MHz 60HZ 60HZ Touchscreen ✓ ✓ ✓ ✓ ✓ ✓ Earphone/Speaker NO Earphone Speaker Speaker NO Earphone & Speaker With Stand NO NO ✓ NO NO ✓ Multi-port USB/HD/13*2 Pin Socket/Extended Interface Type C/HD/3.5MM Headphone/4P Speaker 2 Micro USB/HD/Fan I2C/GPIO_D/UART0/BAT/SPK/TF USB/HD 2 Micro USB/HD/Earphone/Fan Button Backlight Power Switch Toggle Up/Down Backlight/Volume BOOT/Reset Backlight Power Switch Backlight/Volume

• Driver-Free, Plug-and-Play: The LCD display comes with an HD cable and a USB cable. No drivers needed-micro USB interface for touch and power supply, HDMI-compatible interface for displaying. A quick 5-second setup makes it perfect for beginners, coding lessons, and project demos
• Key Features: The mini monitor is equipped with a power button to reduce power consumption. You can fine-tune your display via the built-in OSD menu (adjustable contrast, brightness, saturation, etc.) and enjoy convenient audio output support.
• Broad Compatibility: The touch screen monitor supports the entire Raspberry Pi lineup, Banana Pi, BB Black, Jetson Nano, and other mainstream mini PC. It also can be used as a secondary screen for a TV box, a Switch gaming display, or an extra Windows monitor
• 5-Inch HD Capacitive Touchscreen: Featuring an 800×480 resolution LCD panel with a 60Hz refresh rate, this display ensures sharp visuals, smooth performance, and responsive touch. Ideal for coding, gaming, and media playback
• Compact & Tidy: Custom connectors for Raspberry Pi eliminate cable clutter, allowing for machine mounting. The sleek, compact design makes this small monitor an ultra space-saving solution, ideal for various installation scenarios
