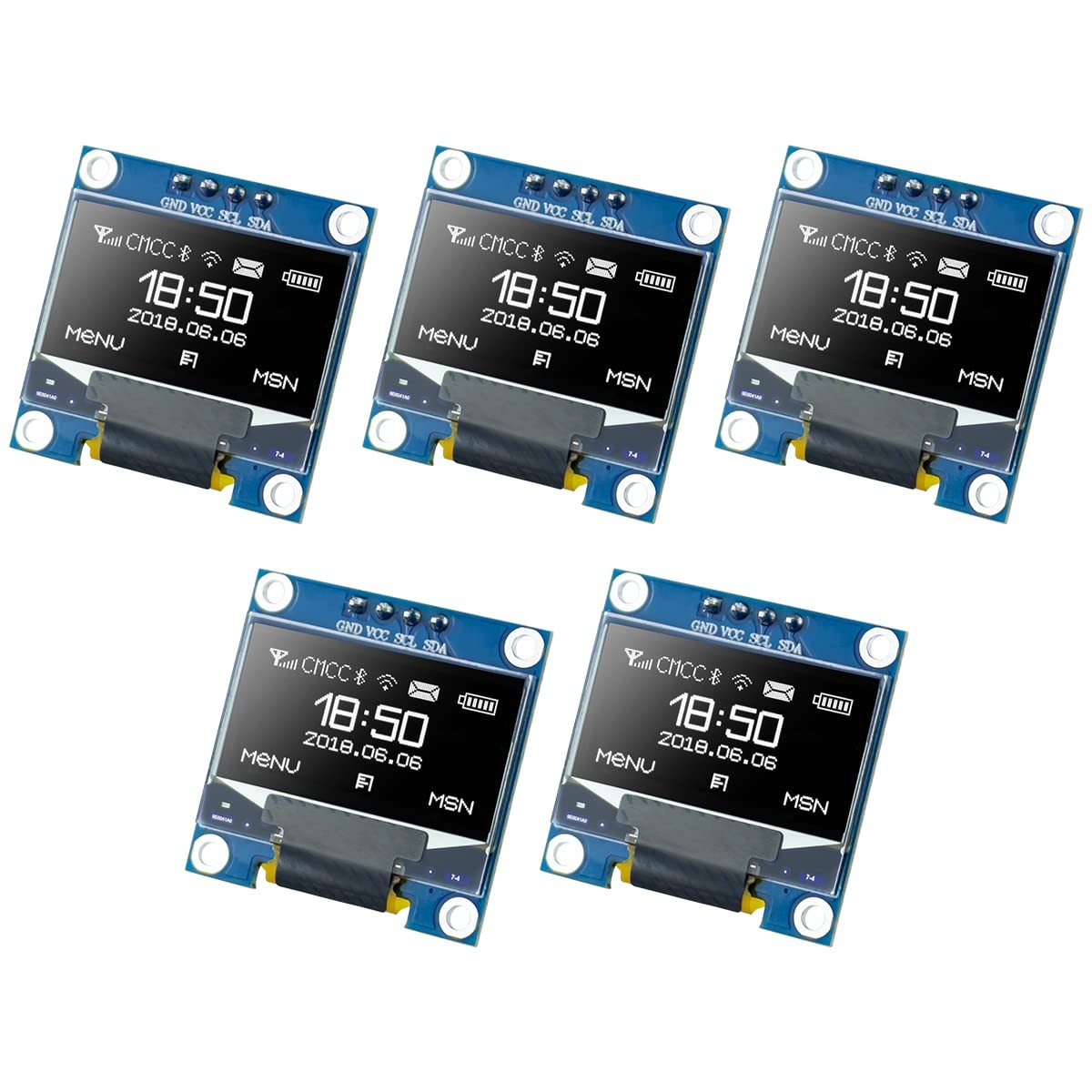

5 Pcs 0.96 Inch OLED I2C IIC Display Module 12864 128x64 Pixel SSD1306 Mini Self-Luminous OLED Screen Board Compatible with Arduino Raspberry Pi (White)

• 0.96 inch,Resolution: 128 x 64, View angle: > 160°, Support voltage: 3.3V-5V DC, Power consumption: 0.04W during normal operation, full screen lit 0.08W
• Embedded Driver IC: SSD1306. Communication: I2C/IIC Interface, only need two I / O ports
• It compatibles with Arduino Nano, R3 board and Mega, Raspberry pi, 51 MCU, STIM 32, etc.
• No backlight is required, and the display unit can be self-luminous. It has ultra-high contrast, bright and clear dots, and it is easy to read even small fonts
• There are no fonts embedded in the OLED controller, users can create fonts through font generation software.

Features:
OLED self-luminous, no backlight
Size: 0.96”
Driver IC: SSD1306
Voltage: 3.3V-5V DC
Viewing angle: > 160°
High resolution: 128 x 64
Working Temperature: -30°C~70°C
Display: White
Module Size: 27mmx 27mm x 4mm
Screen material: glass, need good protection
I2C Interface:
GND: Ground
VCC: 3.3V~5V
SCL: I2C Serial Clock (R3: A5; MEGA: 21)
SDA: I2C Serial Data (R3: A4; MEGA: 20)

Applications:
MP3, MP4, watch
Head-mounted displays
Meters and other intelligent instruments
Design any pretty patterns for your beloved electronic devices!

Package include:
5pcs 0.96 Inch 128X64 White OLED Display Module
