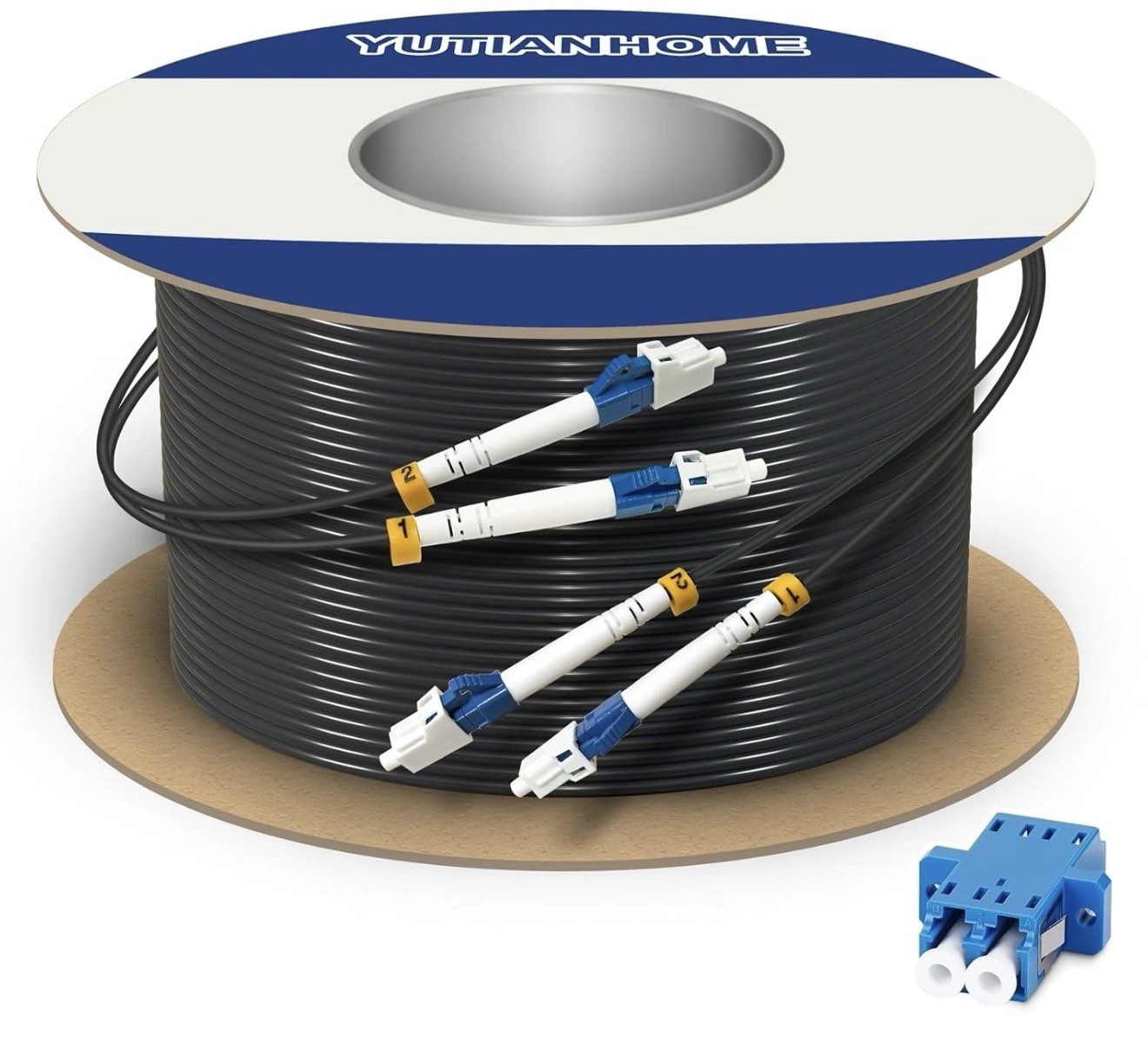

500Ft/150M LC to LC Armored Outdoor Fiber Optic Cable, Single Mode Duplex Fiber Patch Cable, 9/125Um LC Fiber Jumper, (OS1/OS2 Compatible), Low Friction LSZH, Black
Description
Number of Items 1
Item Shape Round
Unit Count 1.0 Count
Special Feature Weatherproof
Outer Material LSZH
Number of Pins 2
Model Name YT-LC-SM
Customer Package Type sealed anti-static bag
Connector Type Lc to Lc Duplex
Item Weight 2.44 Kilograms
Connectivity Technology Optical
Model YT-LC-SM-3.0-150m
Connector Gender Male-to-Male
Other Special Features of the Product Weatherproof
Data Transfer Rate 5 Gigabits Per Second
Color Black
Cable Type Fiber Optic
Indoor Outdoor Usage Outdoor
Compatible Devices Fiber Optics Patch Panel, Server, ethernet
Recommended Uses For Product outdoor and indoor fiber optic cabling, providing additional protection for the cable in harsh environments, connecting to Ethernet, Fiber Optics Patch Panel, and Servers
Size 500ft(150m)
Single Mode Outdoor Fiber Optic Cable with Low Friction LSZH jacket: Made of Ultra Low Friction flame retardant LSZH jacket (Coefficient of Friction μ<0.2), which allows you quick and easy installation and higher cable density in conduit.
Rugged OS2 Duplex Armored Fiber Cable: Built-in Helical Steel Armor, provides additional crush and rodent protection
Min. Bend Radius (Fiber Core): 7.5mm, Cable Diameter: 3.0mm
Terminated with Foxconn precision ceramic ferrule connectors ensure low signal loss
Come with Free Coupler: You get a LC Single Mode Fiber Optic Adapter for easy extension
Product description
LC Duplex OS2 Single Mode Armored 3.0mm Fiber Optic Patch Cable
Connector Type LC UPC to LC UPC
Fiber Mode OS2 9/125μm (compatible with OS1)
Fiber Count Duplex
Fiber Grade G.657.A2 (compatible with G.652.D)
Minimum Bend Radius 20/10D (Dynamic/Static)
Cable Diameter 3.0mm
Cable Jacket LSZH
Tensile Resistance 200/600N (Long/Short Term)
Cable Color Black
Wavelength 1310/1550nm
Insertion Loss ≤0.15dB
Return Loss ≥55dB
Operating Temperature -25~70°C
Storage Temperature -25~70°C
