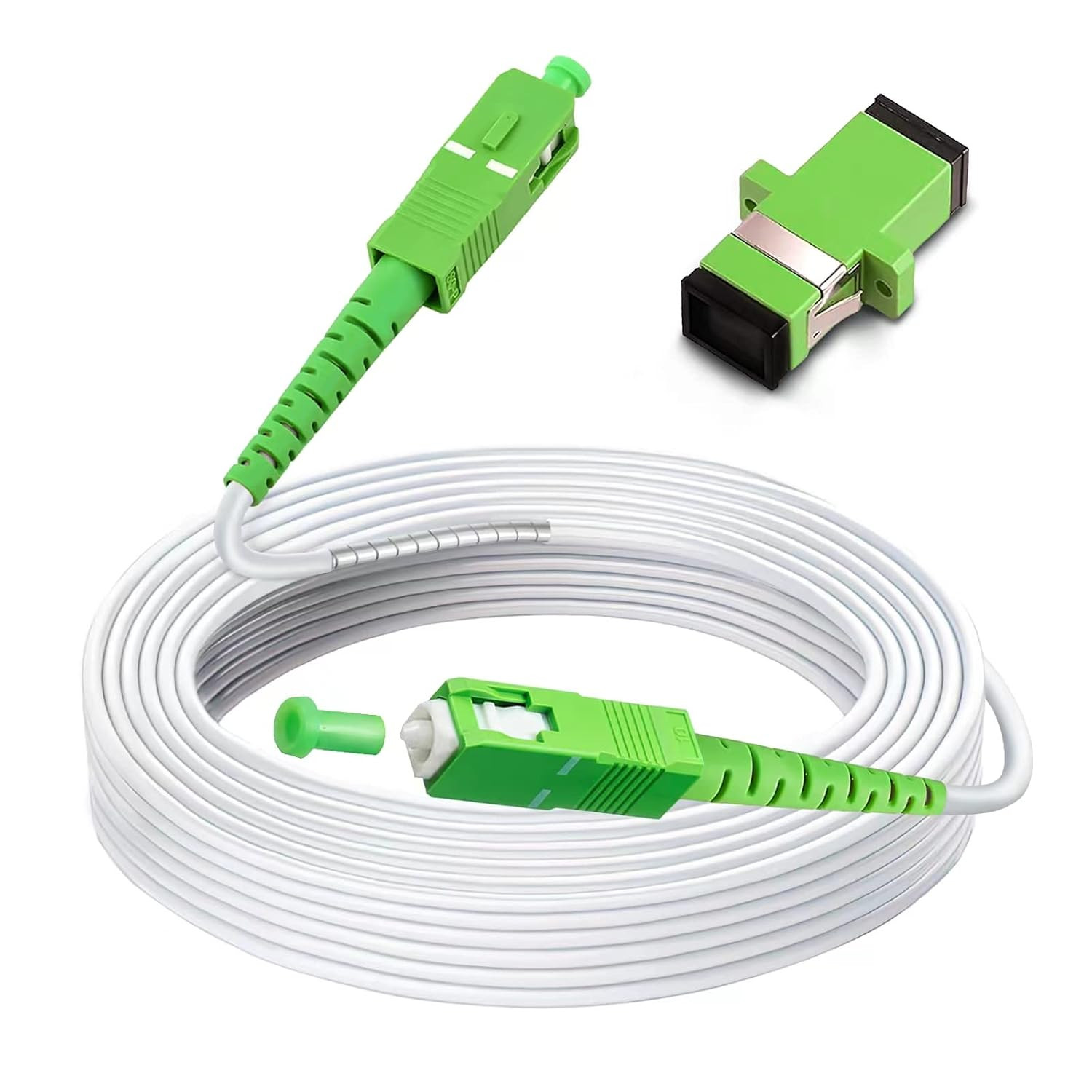

Product description 9/125 Single Mode SC APC to SC APC Armored Fiber Optic Cable Specifications Connector Type SC to SC Polish Type APC to APC Fiber Mode OS2 9/125μm Fiber Count Simplex Fiber Grade G.657.A2 (Compatible with G.652.D) Cable Diameter 3.0mm Cable Jacket LSZH Jacket Color White Fiber Cords Structure Single Armored, Stainless Steel Tube Tensile Load 120/225N (Long/Short Term) Insertion Loss ≤0.15dB Return Loss ≥55dB Min. Bend Radius (Fiber Core) 7.5mm Min. Bend Radius (Fiber Cable) 10/5D (Dynamic/Static) Operating Temperature -25~70°C Storage Temperature -25~70°C Unique end-face baking technology

The unique end-face baking technology allows the jumper to maintain a dry end-face for an extended period in even the harshest climate conditions, preventing the formation of moisture that could affect data transmission.

G657.A2 - Bend Intensive Fiber

Bangun Optical Fiber cable use G657A2 fiber which is a powerful solution for access networks where frequent bending and joining of cables and hardware miniaturization is observed.

Compared with traditional PVC cable, LSZH Jacket is more healthy and safe

Bangun Fiber Optic Patch Cable adpoted 3.0mm LSZH Jacket that is environment flame retardant, anti-corrosion, pull-resistant, low-smoke, halogen-free and immune to electrical interference.

Bangun products are extensively applicable to telecom operators, fiber optic engineering, CCTV, broadband networks, FTTH, data center in more than 80 countries worldwide.

Add to Cart Add to Cart Add to Cart Customer Reviews 4.4 out of 5 stars 75 4.4 out of 5 stars 75 4.7 out of 5 stars 79 4.6 out of 5 stars 68 Price — no data $17.99$17.99 $10.99$10.99 $15.99$15.99 Fiber Count Simplex Simplex Simplex Simplex Fiber Grade Corning G.657.A2 Corning G.657.A2 Corning G.657.A2 Corning G.657.A2 Jacket Armored LSZH, White Armored LSZH, Black Armored LSZH, White Armored LSZH, Black Cable Diameter 3.0mm 3.0mm 3.0mm 3.0mm Insertion Loss ≤0.15dB ≤0.15dB ≤0.15dB ≤0.15dB Low Friction Coating no data ✓ no data ✓ Length 1-30m 10-100m 1-30m 10-30m Add to Cart Add to Cart Customer Reviews 3.8 out of 5 stars 173 4.6 out of 5 stars 41 4.6 out of 5 stars 5 3.4 out of 5 stars 84 Price $149.99$149.99 — no data $29.99$29.99 $116.10$116.10 Fiber Count Duplex / 2 Fibers Duplex / 2 Fibers Duplex / 2 Fibers Duplex / 2 Fibers Fiber Type Corning G.657.A2 Corning G.657.A2 Corning OM3 Corning OM3 Jacket Armored LSZH, Black Armored LSZH, White LSZH, Aqua HDPE, Black Cable Diameter 3.0mm 3.0mm 3.0mm 3.0mm Insertion Loss ≤0.15dB ≤0.15dB ≤0.15dB ≤0.15dB Low Friction Coating ✓ no data no data no data Length 1-10 Kilometers 1-30m 0.2-25m 10-300m Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.3 out of 5 stars 20 4.2 out of 5 stars 7 5.0 out of 5 stars 2 — — — Price $18.99$18.99 $12.99$12.99 $49.99$49.99 $49.99$49.99 $99.99$99.99 $59.99$59.99 Fiber Count 12 6 6 6 12 12 Fiber Mode 9/125 μm 9/125 μm 50/125 μm 50/125 μm 50/125 μm 9/125 μm Cable Diameter 0.9 mm 0.9 mm 0.9 mm 0.9 mm 0.9 mm 0.9 mm Minimum Bend Radius 7.5mm 7.5mm 7.5mm 7.5mm 7.5mm 7.5mm Insertion Loss ≤0.15dB ≤0.15dB ≤0.15dB ≤0.15dB ≤0.15dB ≤0.15dB Cable Types Color-Coded Color-Coded Color-Coded Bunch Bunch Bunch

• Replacement fiber optic cable for ATT Fiber modem/router, Verizon Fios. This Optical Fiber cable suitables for all networks, CATV, FTTH, FTTB and FTTP systems, it is commonly used for Verizon Fios, Google Fiber and more FTTH in-home Fiber optic network optimizations and extensions. Most customers use our SC/APC to SC/APC cables for in house ONT (Optical network Terminal) relocation. They use this fiber patch cable to re-route their Fiber Optic Networks or extend their fiber internet cable.
• Stronger Fiber Optic Cable with Armored: Stop struggling with patch fiber cable been chewed by your pet. This fiber jumper cable built-in a stainless steel tube inside to protect the inner core(fiber glass) from damage like pet chew. Also use protective LSZH outer jacket to strengthen the structure of cable. It retains all the features of a standard patch cord, but is much stronger. Pressure resist and Wear resist.
• White Fiber Optic Internet Cable specially designed for needs of white application of home Fiber Optic Installers. White fiber patch cables can match your white equipment and white trim. We designed this white patch cables to meet customers need of decor colors. We are a professional manufacturer and accept customized orders. If necessary, please contact us for customized Cable to meet your needs.
• Package includes one Free Coupler - You get a SC-APC Fiber Optic Adapter for easy extension
• Product details: Connector SCAPC/SCAPC Mode: 9/125μm. Wavelength: 1310nm to 1550nm. Jacket Material: Low-Smoke, Zero Halogen (LSZH) Armoured jacket. Jacket Color: White. OD: 3.0mm. RoHS Compliant, Resistant to Electrical Interference.
