Product description

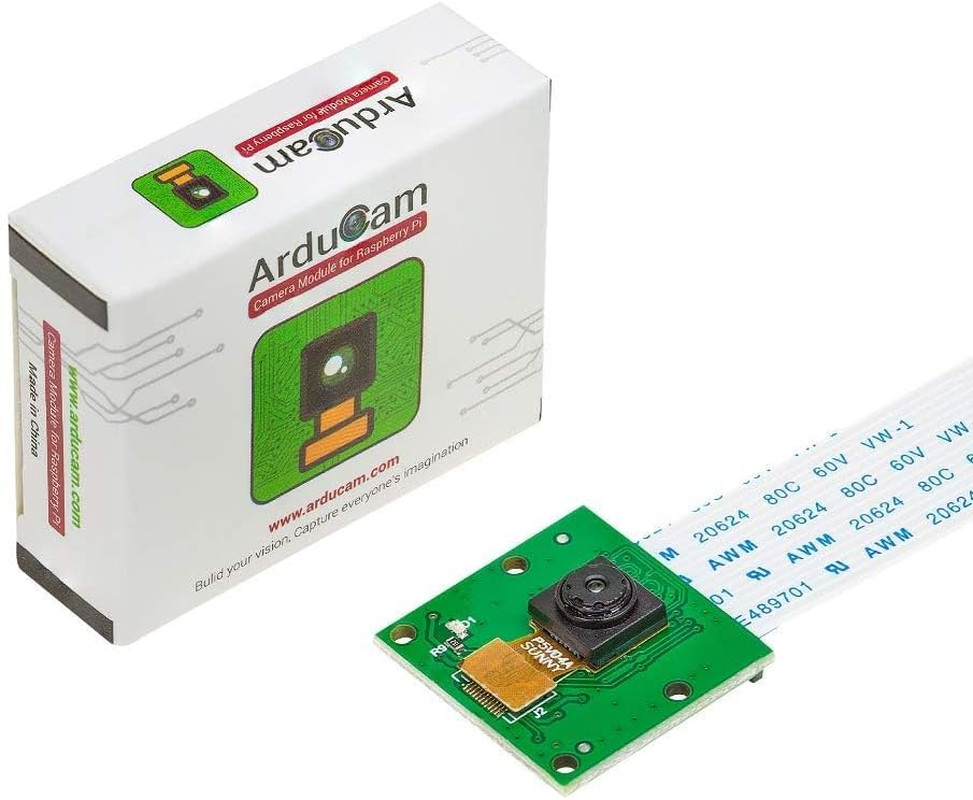

Arducam B0033 Camera Module for Raspberry Pi is fully compatible with the official ones. It’s our 6-year experience in cameras for RPi that makes Arducam outstanding.

Application:

• Cellular phones, PDAs, Toys
• Other battery-powered products
• Can be used in all Raspberry Pi platforms

Features:

• High-Definition video camera for Raspberry Pi 5, 4B, Pi 3B+, Pi 3B, Pi 2, Model A/B/B+
• Angle of View: 54 x 41 degrees
• Field of View: 2.0 x 1.33 m at 2 m
• Full-frame SLR lens equivalent: 35 mm
• Fixed Focus: 1 m to infinity
• Max frame rate: 30fps
• 15 cm flat ribbon cables to 15-pin MIPI Camera Serial Interface (CSI) connector
• Peak Current: 300mA

Package including: 1pcs 5MP Mini Camera OV5647 1pcs 15cm 15-15 pin FPC cable 1pcs 15cm 15-22 pin FPC cable(Raspberry Pi Type B Development Board is not included)

Note: We recommend you use M1.8 screws to fix the camera board to the case (Please search ASIN: b09tng4v55 to get the camera case). Please do not use M2 screws to avoid touching the capacitive resistance at the back of the camera board.

B0033 can work with the latest Raspberry Pi 5

Edit the config.txt before accessing the camera

update

add dtoverlay=ov5647(If you want to enable the camera kit on the cam0 port of Pi5, please add dtoverlay=ov5647,cam0) under [all]

#Save and reboot.

Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.8 out of 5 stars 21 3.7 out of 5 stars 8 4.4 out of 5 stars 126 4.1 out of 5 stars 166 5.0 out of 5 stars 2 4.3 out of 5 stars 44 Price $45.99$45.99 $59.99$59.99 $25.99$25.99 $23.99$23.99 $28.99$28.99 $26.99$26.99 Sensor IMX708 IMX708 OV5647 OV5647 OV5647 OV5647 Lens Autofocus Autofocus CS-Mount Lens M12 Lens M12 Lens Fixed Focus Lens FoV 75°(D)x66°(H)x41°(V) 120°(D)x102°(H)x67°(V) 101°(H) 130° (D) × 100° (H) 220°(H) 2×1.33m at 2 m Frame Rate 1080p50, 720p100, 480p120 1080p50, 720p100, 480p120 30fps@1080p 30 fps@1080p , 60fps@720p , 90fps@480p 1080p@30fps, 720p@60fps, 480p@90fps 30fps Resolution 12MP 12MP 5MP 5MP 5MP 5MP Main Features With Camera Case Wide Angle Visible Light/interchangeable lens Built-in Motorized IR Cut filter Fisheye/Integral IR filter Mini-sized with Flex Cable

• High-Definition video camera for Raspberry Pi Model A or B, B+, model 2, Raspberry Pi 3,3 B+, Pi 4, Pi 5(NOT for Pi Zero)
• 5MPixel sensor with Omnivision OV5647 sensor in a fixed-focus lens. Software auto focus lens: B07SN8GYGD
• Integral IR filter
• Still picture resolution: 2592 x 1944; Max video resolution: 1080p
• Check ASIN: B07RWCGX5K for OV5647 with acrylic case. Other optional accessories: ABS case (B09TNG4V55); Mini tripod case kit (B09TKYXZFG).
