Product Specifications

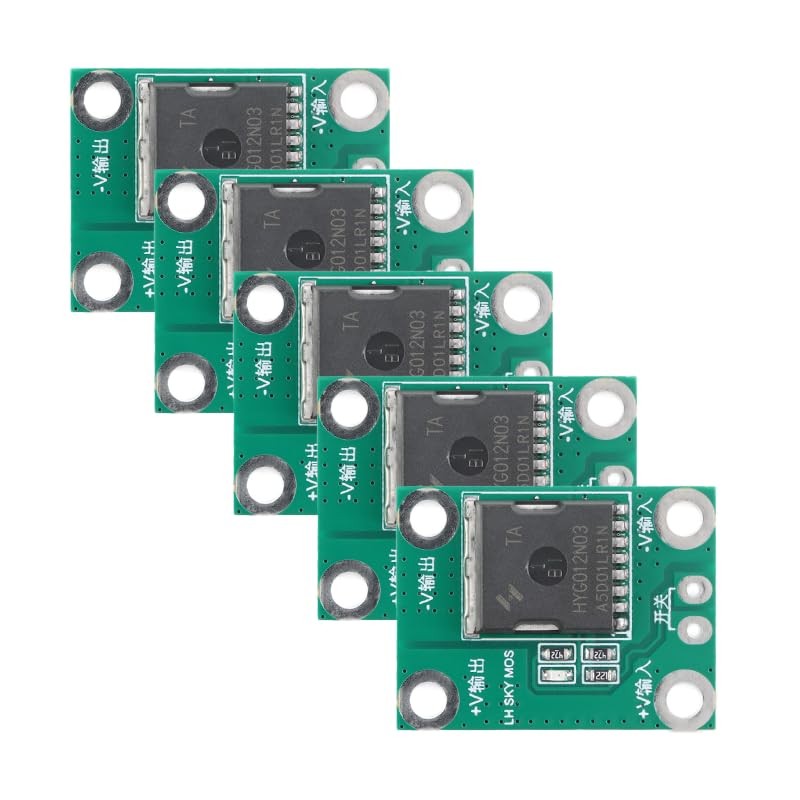

- Model: 100A High-Power MOSFET Module
- Type: High-Power MOS Trigger Switch Driver Module
- Voltage: 5-26V
- Current: 100A
- Dimensions: 24x19 mm
- Product Features
- Equipped with LED operational status indicator.
- Precision manufacturing ensures stable performance and secure pin soldering.
- High-power MOSFETs are widely used in PWM-modulated electronic switch control boards, providing precise power management and voltage/current control for electronic devices
- PWM signal regulation enables power supply start/stop and output power adjustment, meeting diverse load requirements.
Pin Definition
+V Input: Input Positive Terminal
-V Input: Input Negative Terminal
+V Output: Output Positive Terminal
-V Output: Output Negative Terminal
High-Current MOSFET Switching Module: Built for heavy-load applications, this high-power trigger switch driver supports up to 100A current for reliable control of motors, heaters, lighting, and other high-demand DC devices.
Wide 5¨C26V Operating Voltage: Compatible with multiple DC power systems, making it suitable for automotive electronics, industrial control, robotics, and DIY power management projects.
External Self-Locking Switch Design: The module does not include self-locking internally; its "ON/OFF" terminals must be connected to a self-locking switch, allowing low-current switch control of high-current output safely and efficiently.
PWM Compatible for Precise Control: Designed for PWM-regulated switch boards to enable accurate on/off switching and output adjustment, helping you match power delivery to different load requirements.
Durable and Easy to Monitor: With a compact 24 x 19 mm footprint, precision soldering, and stable construction, the board is easy to integrate; an onboard LED status indicator provides clear real-time operating display.
