Product Description Collecting listings has surprises Description

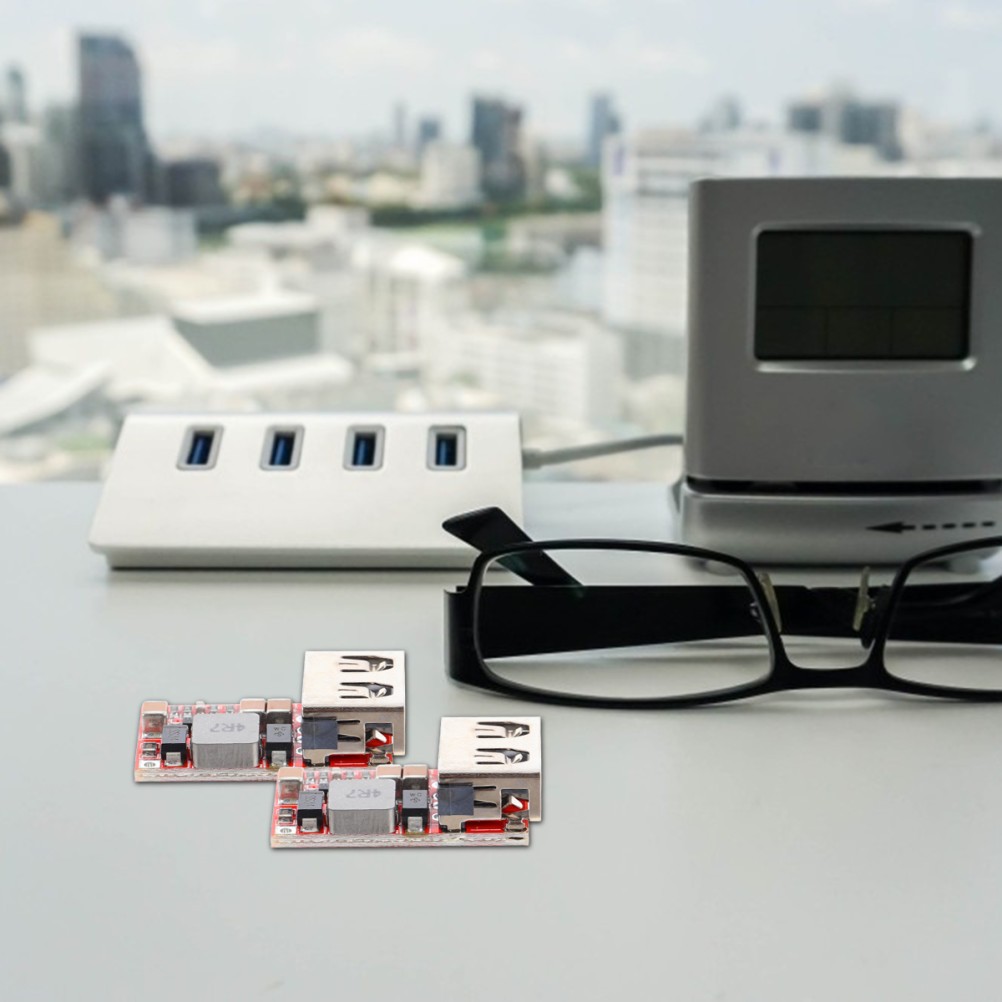

This is a car charger to reduce pressure module. Maximum output current 3A, long running time 2.1A. Using synchronous rectifier, the circuit conversion efficiency is very high.With synchronous rectification, the conversion efficiency of the circuit is very high, up to 97.5% at 6.5V to 5V and 0.7A. The flat copper inductor is compatible with most of the phones.
Features
- Color: Red.
- Material: PCB.
- Size: 2.70X1.60X0.60cm/1.06X0.63X0.24 inch.
- High power and stable output, it converts 6-24V DC to 5V DC.
- components ensures high conversion efficiency, up to 97%.
- It has USB output port that can be used to charge phone, supports fast charging.
- This is a DC power converter module with long service life.
- Using synchronous rectifier, the circuit conversion efficiency is very high.
Specification
- Switch frequency: 500KHz.
- Output ripple: 10mV.
- Output indicator: Output voltage indicator is red
- Operating temperature: Industrial grade (-40℃ to 85℃) (the higher the ambient temperature, the lower the output power)
- Output overvoltage protection: Input 1.5A, output 5V, with 300W TVS tube clamp protection.
- Full load temperature: 30 ℃.
- Static current: 0.85 mA
- Load regulation: ±1%
- Voltage Regulation: ±0.5%
- Dynamic response speeds: 5% 200uS
Package includes 5 x USB DC-DC Modules Contact US 1.If you have some inquires or problems, Please feel free to contact us.
