Product Description:
Size: 34.0mm * 26.0mm * 32.0mm (LxWxH)

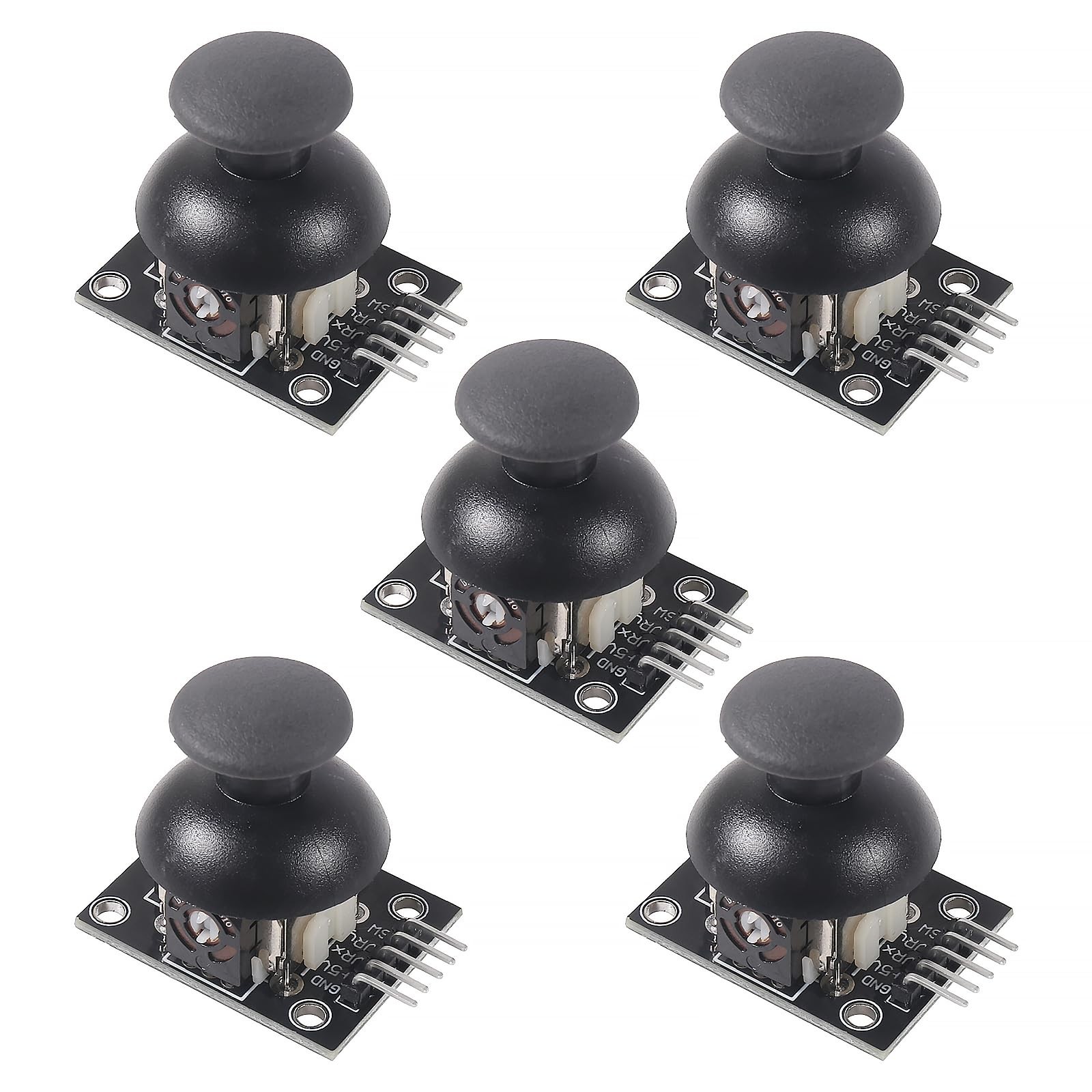

-axis pushbutton rocker module by joystick potentiometer with (X, Y) 2 axis analog output, (Z) 1 button digital output. With the expansion board can be produced such as remote control interactive works. In addition, this product in order to allow customers to more easily with expansion board and other standard interface, the design of the X, Y, Z axis of the circuit leads alone, the user can use 3-pin special line really plugged into the expansion board for Use. Product Performance:
Input Voltage Range: DC 3.3V to 5V
Output Signal: module ad hoc -way analog output and digital output interface, the output value corresponding to (X, Y) biaxial offset, the is analog; the button indicates whether the user presses the Z axis, Its is digital switch.
Through the controller programming, plug the expansion board to complete the creative remote interactive works.
Cross rocker is a bi-directional 10K resistor, with the rocker in different directions, the tap resistance changes. The module uses 5V power supply, the original state of X, Y read-out voltage of 2.5V or so, with the direction of the arrow down, read the voltage value increases with up to 5V; the arrow is pressed in the opposite direction, read the voltage value decreases , The minimum is 0V.
★X, Y-axis output for the potentiometers, you can read through the AD conversion twist angle.
★High-quality rocker, long life, stable performance.
★analog outputs, all the way to digital output.
★Like the next press the joystick, you can move all the way to touch the authority for the digital output, has been pulled.
★For degrees of freedom servo PTZ control or other remote proportional control.
