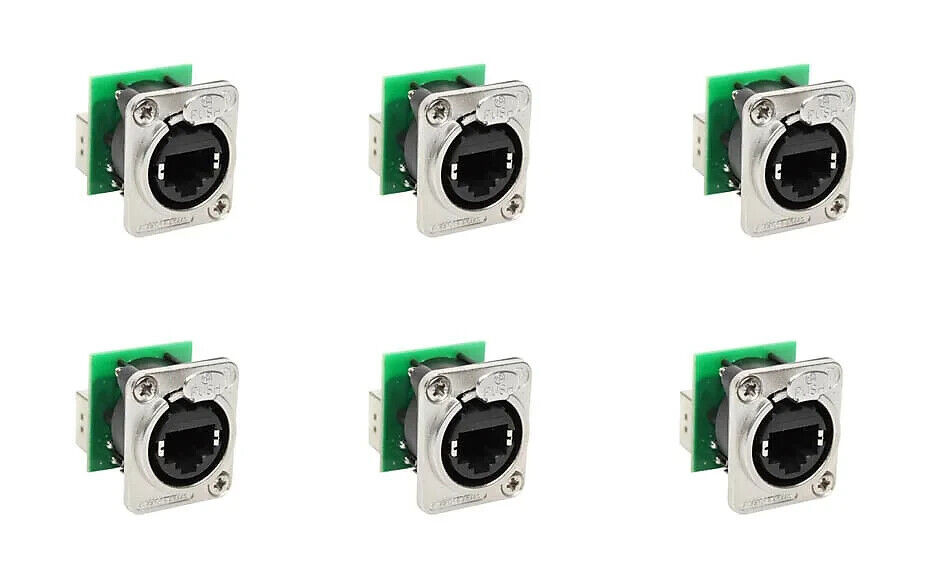

This listing is for 6 New Neutrik NE8FDP Ethercon Pass-Through Panel Mount Connectors
Electrical Specifications: - Frequency bandwidth: 1 - 100 MHz
- Number of contacts: 8
- Rated current: 1.5 A
- AWG: 26 - 20
- Dielectric strength: 1000 V ac rms
- Contact resistance: < 10 m ohm
- Insulation resistance: > 500 M ohm
- Category 5e
Mechanical Specifications: - Lifetime: 1000 mating cycles
- Retention method: latch lock
- Panel thickness: max. 3 mm [0.12"]
Material Specifications: - Housing: PBTP 15% GR
- Strain relief clamp: Ck67, Ni plated
- Contacts: Bronze CuSn6
- Contact surface: Au (gal 0.2 µm over Ni plating)
- Temperature range: -30°C to +80°C
- Flammability: UL94-V0
Payment and Shipping
. IF YOU HAVE ANY QUESTIONS USE THE E-BAY "ASK A QUESTION"
STORE HOURS - 9am - 5pm EST/ Monday - Friday
SHIPPING
We only ship to addresses within the 48 Continental United States
WARRANTY - Full Manufacturer Warranty
GUARANTEE Jade Music Store Guarantees your item to be defective free or damage free. If your item
arrives defective or damage, please contact us immediately for a RMA# and instructions. Damage
or defective items must be returned in the original box and packagingRETURNS - 30 Days - Please see under Shipping and Payments Link on this page for
more details
.
