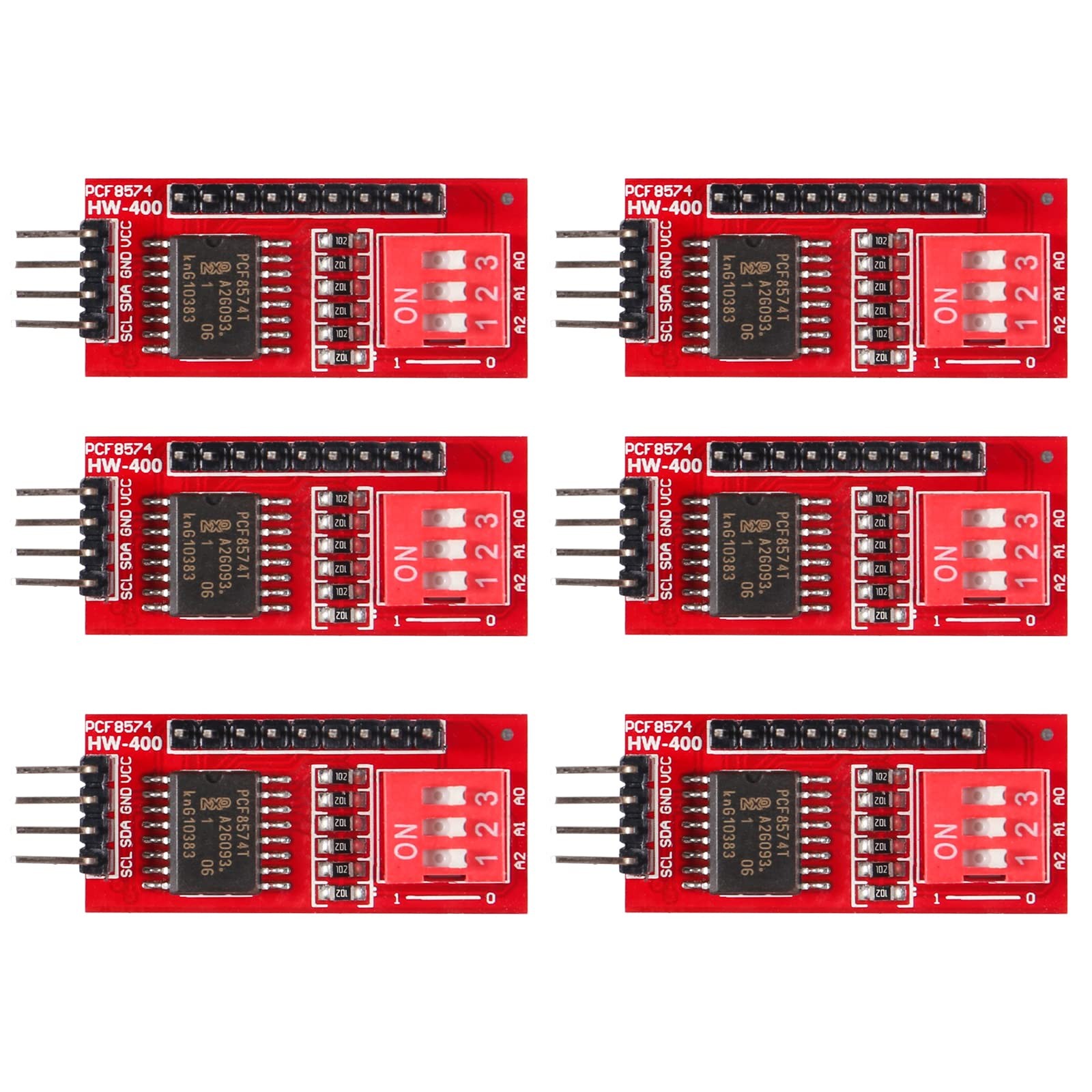

6 PCS PCF8574 PCF8574T IO Expansion Board Expander I2C IIC Port Interface Kit
Price: US $21.48
Premium Product Listing Welcome to Our Online Store!

Your happiness is guaranteed – shop with complete peace of mind!

6pcs PCF8574 PCF8574T IO Expansion Board I/O Expander I2C IIC Port Interface Evaluation Develop ModuleProduct Description

Features:

I2C interface, I / O expansion module, two I / O scalability 8 I / O (up to 8 simultaneous use the PCF8574 expanded to 64 I / O)

Most important feature:

- Supports two interface types access target board: Pin or row seat,

- Support I2C bus cascade (by pin header row seat docking methods can be used simultaneously multiple I2C modules)

- Typical application: I / O resource shortage MCU I / O expansion

- Main resources: the PCF8574 I2C interface, 8-bit parallel



Module function:

- This is the I/O extended module, which use for I2C interface, you can use two of the module to extend 8 I/O.

- Support cascading, and you can use at most 8 modules to extend 64 I/O at the same time.

- Every 2 seconds, make P0-P7 port output High level, Low level, and put 3 toggle switches to ON, the address of module is 0x27.

- Can be changed the address by set toggle switch

- PCB Size: 36 x 16mm/1.41*0.62"



Package included:6 PCF8574T I/O extended module

Product Features
    • I2C interface, I / O expansion module, two I / O scalability 8 I / O (up to 8 simultaneous use the PCF8574 expanded to 64 I / O).
    • Supports two interface types access target board: Pin or row seat, Support I2C bus cascade (by pin header row seat docking methods can be used simultaneously multiple I2C modules).
    • Typical application: I / O resource shortage MCU I / O expansion
    • Test procedures (AVR, STM8, C8051F).
    • Package included: 6pcs PCF8574T IO Expansion Board
