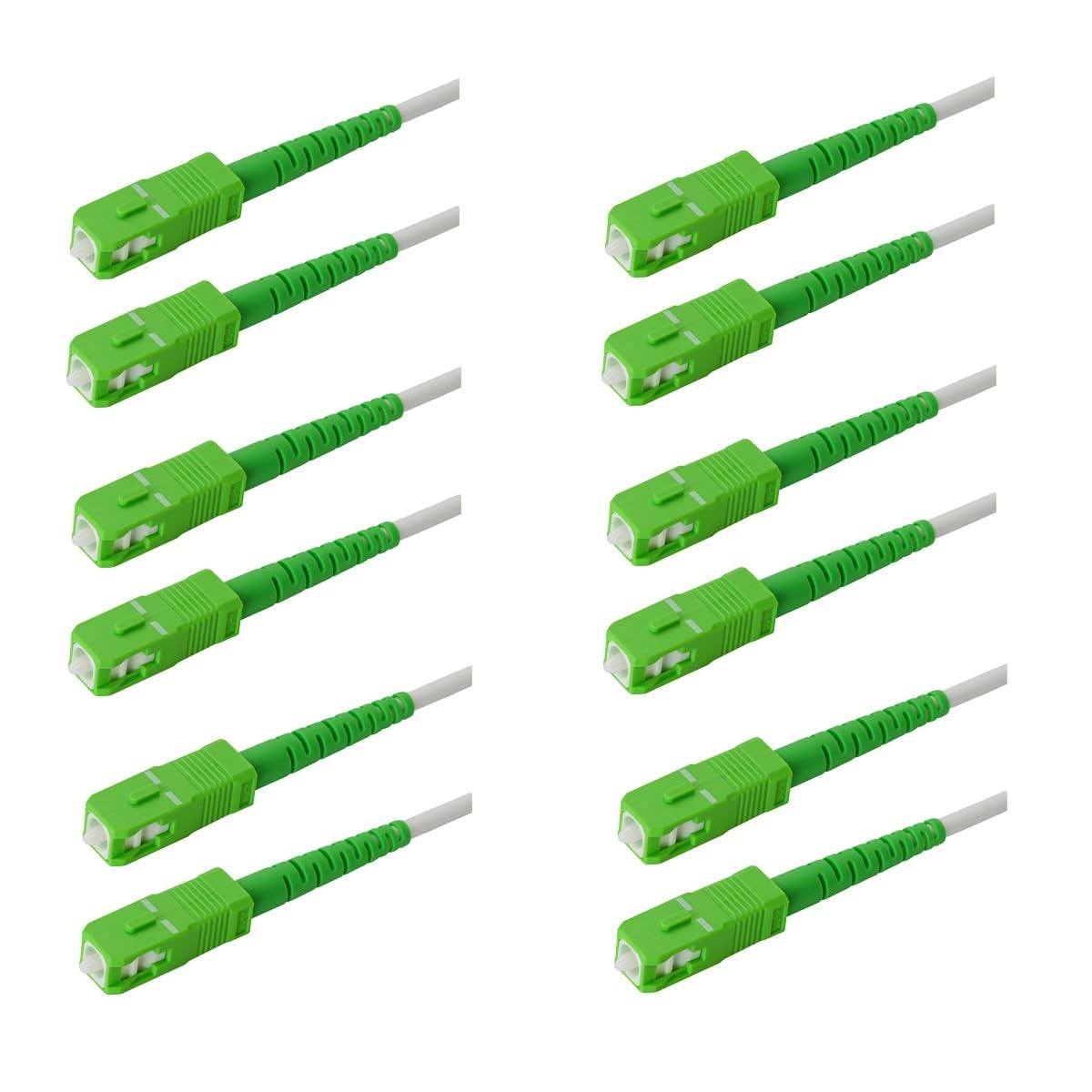

SpeedyFiberTX SC/A to SC/A Armored Fiber Patch Cable, Premium SC/A Connector (≤ 0.15dB), Corning Singlemode G657A2 Fiber, 3.0mm White Armored Simplex LSZH UL94 V-0 Indoor/Outdoor Cable Jacket

• Cable Manufactured with Industry-Leading G657A2 Corning ClearCurve LBL Optical Fiber with 7.5mm minimum bend radius, High Industry Standard LSZH UL 94 V-0 UV-Proof Indoor/Outdoor Cable Jacket, Durable Plug and Play High Quality Premium Fiber Optic Connectors (≤ 0.15dB)
• Corning ClearCurve LBL G657A2 Optical Fiber, Delivers Enhanced Macrobending Performance while Maintaining Compatibility with Current Equipment, Practices, and Procedures | ClearCurve LBL Fiber exceeds Recommendation ITU-T G.657 A2/B2 and Remains Compatible and Fully Compliant with Recommendation ITU-T G.652.D
• Corning ClearCurve LBL G657A2 Optical Fiber Offers Industry-Leading Specifications for Attenuation, Macrobend Loss and Polarization Mode Dispersion Values, which Provide a Solid Foundation for New Network Deployments as well as Upgrades to Existing Networks
• This Premium Singlemode Fiber is Designed for Regional, Long-Haul, Metro, Access, Mobile, and Fiber to the Home (FTTH) Applications, along with Being Fully Backward Compatible with the Installed Base of Legacy Singlemode Fibers
• High Quality Fiber Patch Cable for Storage Area Network and Data Networks and Connects to SFP Transceivers, Ethernet Switches and Media Converters | High Quality Guarantee: 100% Inspection and Test on Insertion Loss and Return Loss

Specifications

• Insertion Loss APC ≤ 0.15 (dB) / UPC ≤ 0.15 (dB)
• Return Loss APC ≥ 65 (dB) / UPC ≥ 55 (dB)
• Attenuation at 1310nm ≤ 0.32(dB/km) | at 1550nm ≤ 0.18(dB/km)
• Operating Wavelength 1285nm - 1625nm
• Operating Temperature -20° C to +70°C
• Ferrule Material Ceramic
• Compliance ITU, UL, CE, IEC, TIA, RoHS

Features and Benefits

• Every cable has length label to identify cable length for easy deployment
• 3.0mm white armored simplex cable and durable premium fiber connectors
• Lightweight and flexible simplex LSZH UL94 V-0 UV-Proof Indoor/Outdoor cable jacket
• Every connector termination is tested to ensure the quality in network performance
