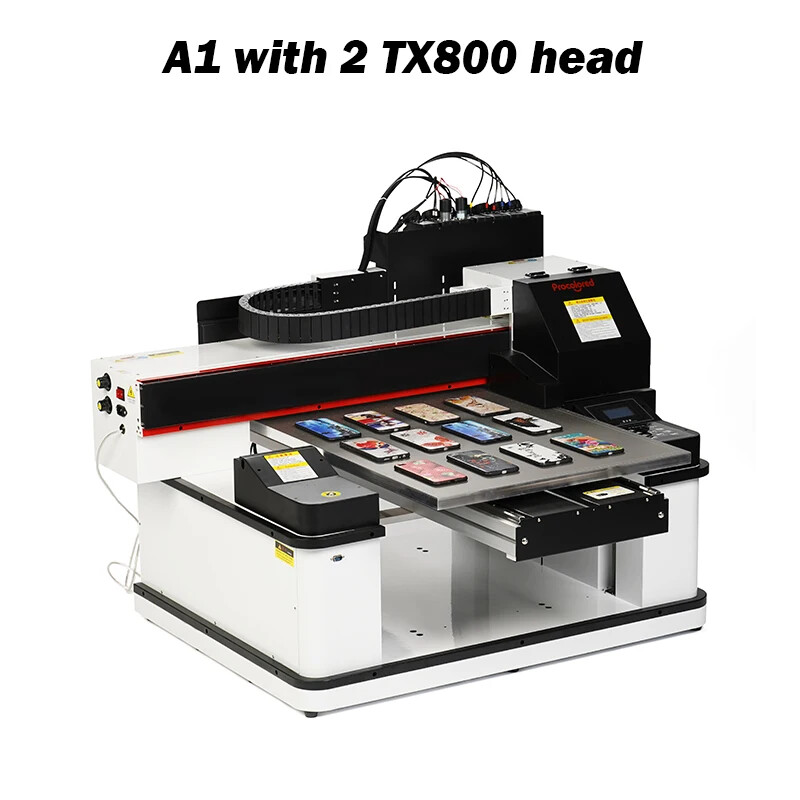

6090 UV Flatbed Printer Machine A1 UV Printer with 3 EPSON TX800 XP600 Printhead For Bottles PhonecaseLeather Crystal Acrylic
2. Three-nozzle design; ink sac with negative pressure function makes it more difficult to drop ink during printing.
3. High-quality screw slide rails make printing more fine
4. The 8-color ink cartridge design, cmyk+lc+lm, makes the printing more vivid and the effect more realistic.
5, Automatically wipe the print head and keep it wet system. Automatically flushes when power is on and stays wet when power is off. Prevents print head clogging at idle and after printing
Vacuum Platform
Soft material like leather and so on, is very easy to warp up, which will damage to the nozzle and print material, vacuum platform can avoid that damage when printing.
White ink automatic circulation
Automatically cycle white ink, to avoid the ink precipitation and blockage and prolong print head life.
The maximum printing area is 600mm*900mm, and the maximum printing height is 230mm (if the adsorption platform is configured, the maximum printing height is 190mm)
Specifications：
Model
6090/Double/Triple/XP600/TX800
Print nozzles
TX800 or XP600 (double or triple nozzle optional)
Print precision
8PASS、16PASS
Print platform
600*900mm
Print speed
8PASS； 3 to 5 square meters /H
Optional software
Ruicai (free), Ruiyin (charged)
Print height
0~190mm, infrared altimetry (optional suction function reduced to 150mm)
Applicable systems
Windows
Ink consumption
1 m2 / 20 ml
Color configuration
6 groups of color + 6 groups of white + 6 groups of varnish
Ink supply mode
Continuous ink supply
Emboss printing
backing
White ink output
Support/white color with out
Print varnish
backing
UV lamp life
3 years
Packing size
L1440*W1340*L980mm
UV lamp cooling
Water cooled + air cooled
Device size
L1300*W1200*H800mm
UV lamp power
Adjustable, up to 130W
Net weight/gross weight
135KG/237KG
Platform tuning
Touch screen + infrared altimetry
Outer packaging
Export wooden box (with forklift feet) + foam
Platform-driven
Pulsed servo motor driven
Voltage/plug
Wide voltage AC100~230V/ depending on the country
Sprinkler protection
Intelligent infrared anti-collision system, ink absorbing pad maintenance liquid anti-clogging.
Print media
Mobile phone case / leather / lithograph / crystal / acrylic / card / DISC / U disk / inscription and other planes
exegesis
The printer adopts stable platform technology, leading stepper motor drive mode, automatic in and out at the same time with infrared altimetry, laser positioning, water cooling + air cooling combination, a wide range of printing, 190mm height within the product can be printed
Printing Step
What’s In The Box
UV Printer 6090
Full Set of Initial UV Ink (CMYKW 5*500ml)
Metal coating 1*50ml
Acrylic coating 1*50ml
Ink cleaner 1*100ml
Nozzle protection fluid 1*50ml
Printing software/Dongle/U Disk
Printing Sample
