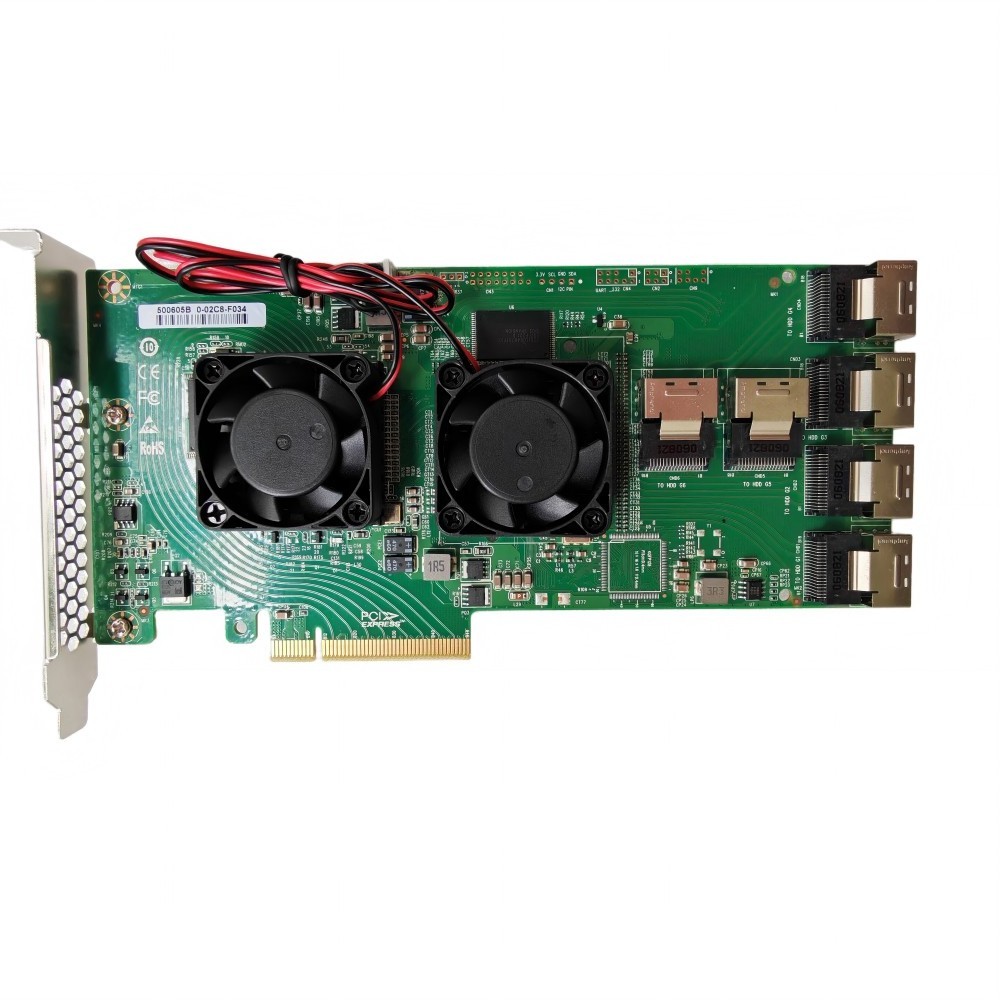

Product Name：PCIe x8 to 24 Port SFF-8087 6Gb/s Expansion CardChipset：LSI SAS 2008+SAS 2X36Interface：6*SFF-8087Support: 24 SAS/SATA HDD

Features:

• Please note it's NOT a RAID Controller
• Support connection up to 24 HDD via 6x SFF-8087 connection ports
• Supports SAS and SATA data transfer rates of 1.5, 3, and 6Gb/s and incorporates enhanced features. The SAS expander provides large storage environments the ability to connect multiple targets and initiators through a switched device for scalability and fault tolerant pathredundancy to improve system reliability ideal for today’s data center and storage subsystems. The expander is ideal for high availability and scalable server clustering environments and front-end storage subsystems used in clusters, SAN, and NAS environments.
• 6 and 3Gb/s SAS
• 6.0, 3.0, and 1.5Gb/s SATA
• based on LSI 6G
• HARDWARE
•

•

• MAX number of Device
•

• 24 internal
•

• Bus Type
•

• PCI Express
•

• Main Chipset
•

• SAS 2X36 +SAS 2008
•

• Compatible Device Type
•

• 24 SAS /SATA HDD
•

• Interface
•

• 6*SFF-8087
•

• Host Bus Type
•

• PCI Express x8
•

• ENVIRONMENTAL
•

• Humidity
•

• 15% ~ 90%
•

• Operating Temperature
•

• 5°C to 50°C (41°F to 122°F)
•

• Storage Temperature
•

• -25°C to 70°C (-13°F to 158°F)
•

• PHYSICAL CHARACTERISTICS
•

• Dimension
•

• 204mm x 100mm
•

• Product Weight
•

• 190g
•

• WARRANTY INFORMATION
•

• Warranty
•

• 2 Years
•

• PACKAGING INFORMATION
•

• Shipping (Package)Weight
•

• 9.21 oz [261g]
•

• WHAT'S IN THE BOX
•

• Included in Package
•

• 1 - 6Gb/s PCIe x8 to 24 Port SAS Expander Card
•

• 1 - Full-height bracket (installed)
b SAS2x36 and SAS 2008 expander
•
