1.Main Parameters
Product Name

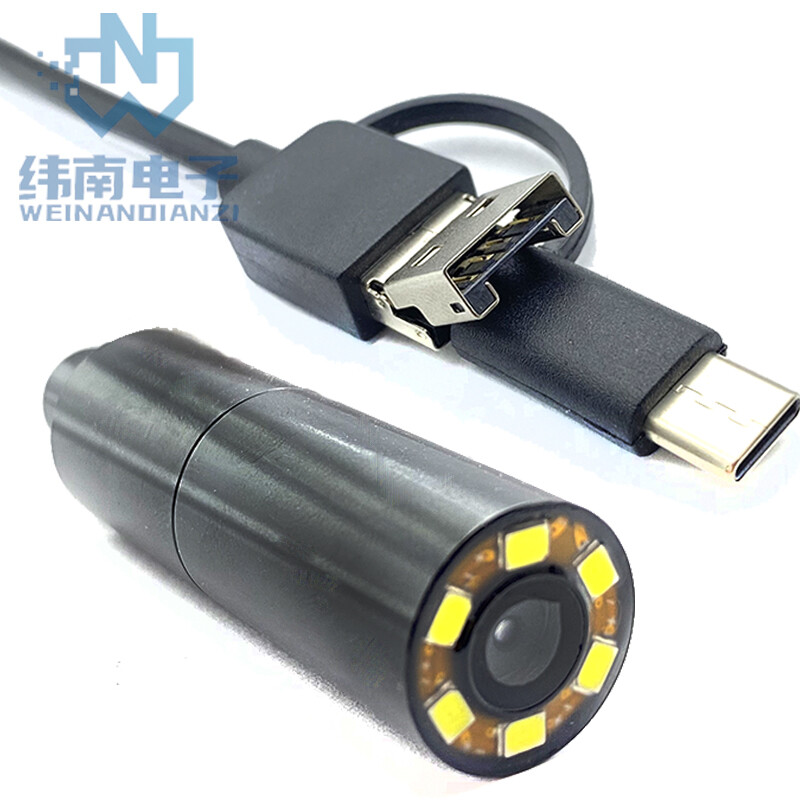

12MP 4K USB2.0 Camera Module
Product Code
WN-L2110.K301L
Module Size
Diameter 12.5mm
Image Sensor
1/3.6-inch IMX258CMOS Sensor
Max. Resolution
3840H x 3104V
Pixel Size
1.12*1.12μm
Output Format
MJPEG
Field of View
75°
Audio Input
Digital Two-way
Focus Mode
Autofocus
Shutter Mode
Electronic Rolling Shutter
Output & Power Supply
High Speed USB2.0
Interface
5PIN 1.0MM Socket
Controllable Parameters
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Contrast, Exposure
Supported OS
UVC-compliant, Plug and Play for Windows, Android, Linux, Mac OS, etc.
Connection Cable
Default1.0 Meter USB Cable
2.Supported Resolutions and Frame Rates
Formats
Resolutions
Frame Rates
MJPEG
3840x3104
15FPS
3840x2160
30FPS
2592x1944
30FPS
2048x1536
30FPS
1920x1080
30FPS
1280x720
30FPS
800x600
30FPS
640x480
30FPS
3.PIN Definitions
Pin No.
Signal Names
Descriptions
1
VCC
5V power
2
DP
USB2.0 Data+
3
DM
USB2.0 Data-
4
GND
GND
5
LED+
LED+
6
LED-
LED-
4.Working Conditions
Working Voltage
DC 5V
Working Current
190mA
Working Temperature
-20°C ~ 60°C
Storage Temperature
-20°C ~ 85°C
Humidity
80 ~85%
