Product description

Why choose SUPNOVA Battery Monitor

• Our battery monitor use high-end chip, and the voltage test range of 8-100V, 12V,36V,48V,60V,72V and 84V batteries can be used，It does not generate heat even when used at high voltages with high safety .
• It can accurately test the voltage, the remaining capacity of electricity, show the percentage , it can set low and high voltage buzzer alarm.
• This product is independently developed and produced by our company and is suitable for various instruments, car, golf cart, portable and convenient equipment, medical equipment, Electric bikes Motorcycles Boat etc.
• The battery tester with power-off memory function, it can retain settings when power is removed.
• Buzzer Alarm&Ttemperature:The battery monitor can set low and high voltage buzzer alarm and short press"M"key can switch voltage and temperature（Celsius).

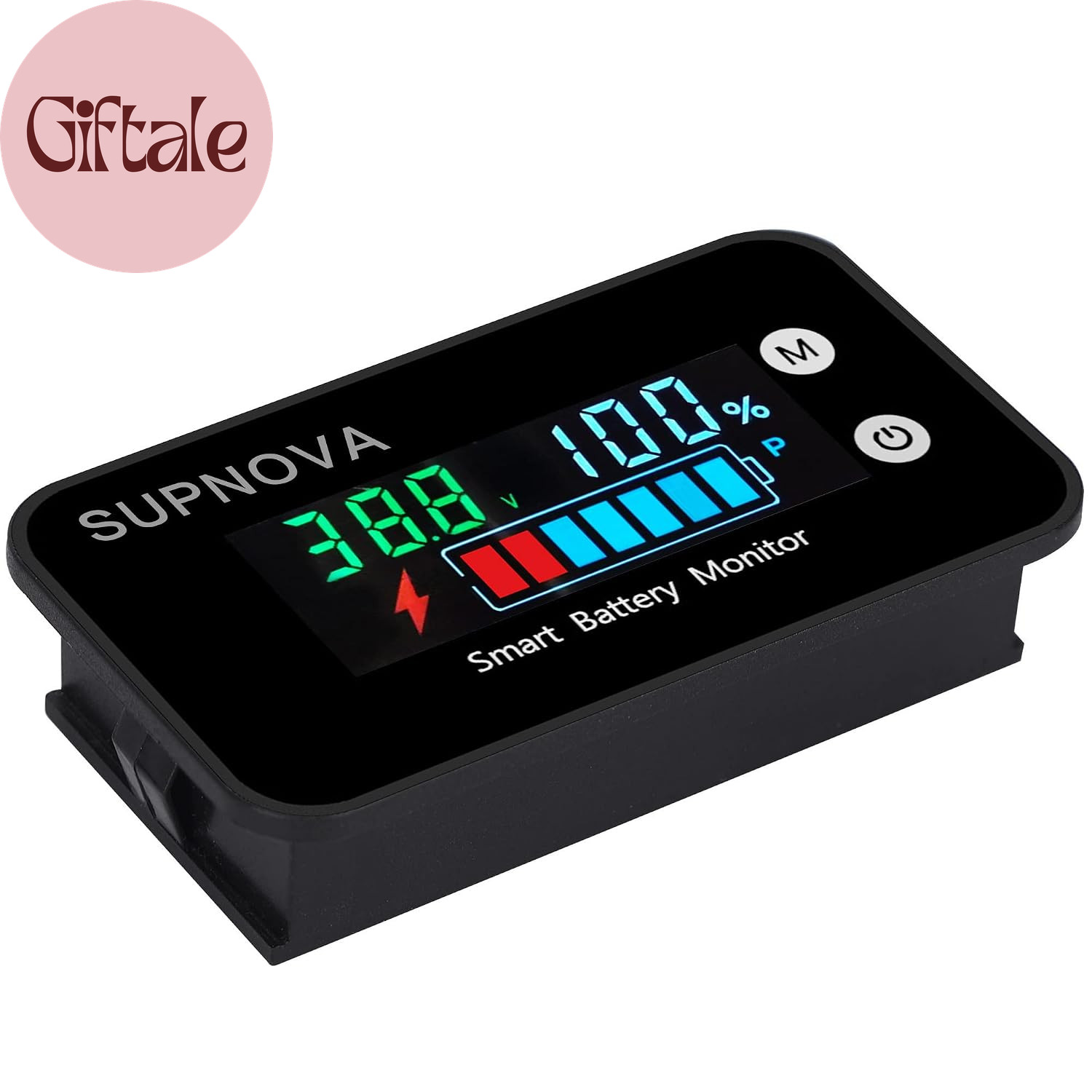

Batter tester Detail picture

• Our batter meter is fully functional type, not only can display battery capacity and voltage, but also can display the residual percentage capacity and temperature（Celsius). the wires length are 39.37inches.

The back of product

• Removal wiring terminal, convenient for your installation and store.

Application

The battery testers can be used for testing battery voltage and capacity for electric motorcycle, motorcycle，golf cart, automotive , car, marine, RV, boat, etc.

Color battery monitor

• The battery testers not only can accurately test the battery voltage and capacity but also percentage display.
• The battery meter is suitable for 8-100V (12v 24v 36v 48v 60v 72v,84v ) Ternary lithium battery, lead-acid AGM battery, lithium iron phosphate battery. Default 12 volt lead acid battery with power -off memory function.
• The battery monitor meter is designed with the turn on/off switch, convenient for your daily using.
• The battery monitors with power-off memory,you would not reset if power off .

Demension

• The battery monitor Product Dimension is 64*36*15.3mm(2.5*1.4*0.6inches).and the Install Dimension is 58*28mm(2.28*1.1inches).
• The shell designed with buckles if you open hole installation,

function

• The batter meter is fully functional type, not only can display battery capacity and voltage, but also can display the residual percentage capacity and temperature（Celsius).
• Short press"M" button can switch voltage and temperature.

how to connect

• The wiring method is simple. The red wire connect the positive , and the black wire connect the negative of the battery. The wire length is 39.37 inches.

Parameter Measuring range DC8-100V Working current
