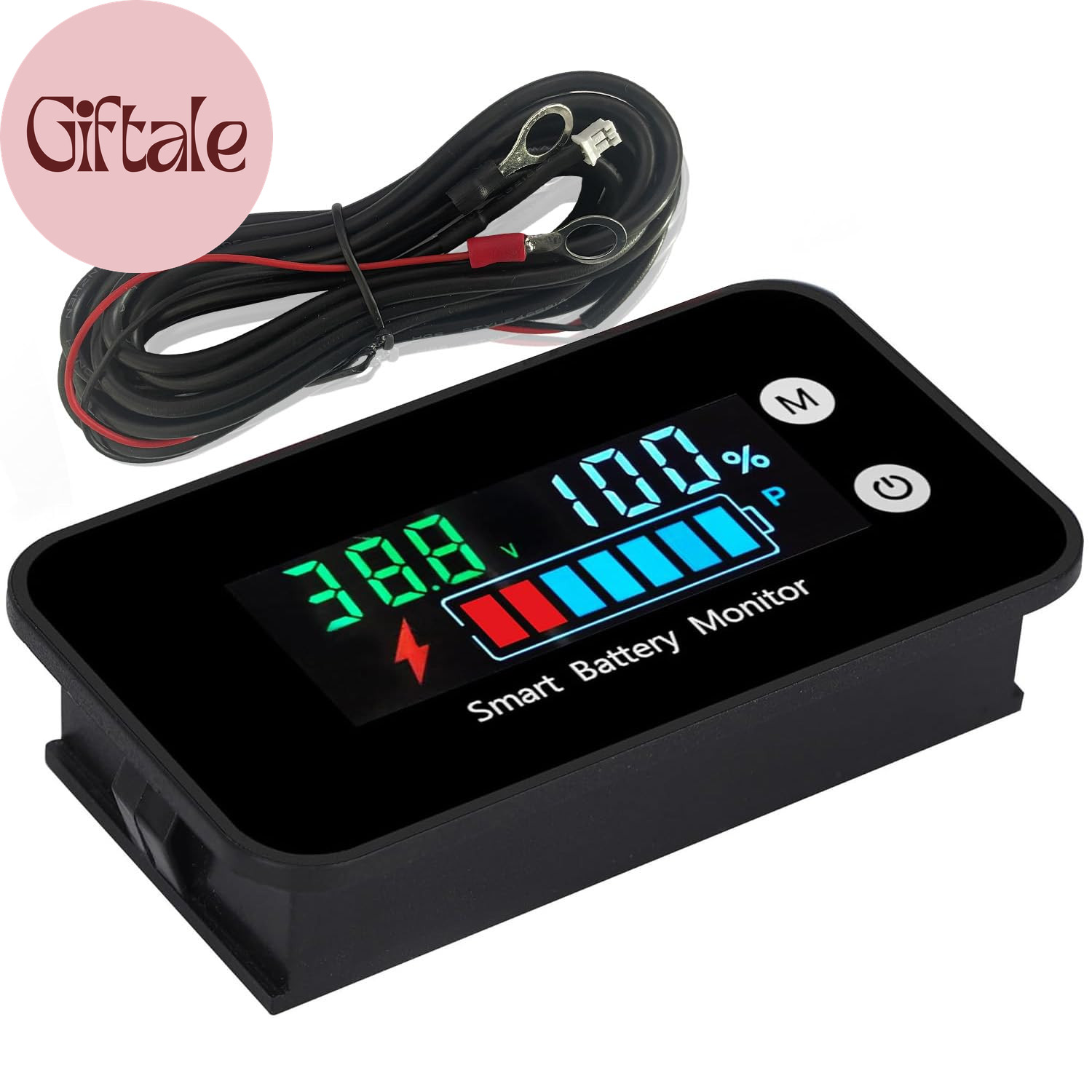

Product description Smart battery monitor

Why choose SUPNOVA Battery Monitor

• Our battery monitor use high-end chip, and the voltage test range of 7-100V, 12V,36V,48V,60V,72V and 84V batteries can be used，It does not generate heat even when used at high voltages with high safety .
• It can accurately test the voltage, the remaining capacity of electricity, show the percentage , it can set low and high voltage buzzer alarm.
• This product is independently developed and produced by our company and is suitable for various instruments, car, golf cart, portable and convenient equipment, medical equipment, Electric bikes Motorcycles Boat etc.
• The battery tester with power-off memory function, it can retain settings when power is removed.
• Buzzer Alarm&Ttemperature:The battery monitor can set low and high voltage buzzer alarm and short press"M"key can switch voltage and temperature（Celsius).
• This battery monitor is fully waterproof and dustproof on the surface. It is equipped with a wiring terminal on the back for easier installation and disassembly. For installation convenience, the matching cable we provide is 1.5 meters (59inches)long.

Function

• The batter meter is fully functional type, not only can display battery capacity and voltage, but also can display the residual percentage capacity and temperature（Celsius).
• Short press"M" button can switch voltage and temperature.

How to connect

• The wiring method is simple. The red wire connect the positive , and the black wire connect the negative of the battery. The wire length is 59 inches.

Detail

• Our batter meter is fully functional type, not only can display battery capacity and voltage, but also can display the residual percentage capacity and temperature（Celsius). the wires length are 59inches.
• The battery monitor is fully waterproof and dustproof on the surface. It is equipped with a wiring terminal on the back for easier installation and disassembly.

The back of product

• Removal wiring terminal, convenient for your installation and store.

Wiring Harness

• The wire harness is 59 inches long with a wire diameter of 3.5mm (0.138 inches). It is equipped with one wiring terminal and two 8mm (0.315 inches) metal lugs, sturdy, durable and easy to install.

Dimension

• The battery monitor Product Dimension is 64*36*15.3mm(2.5*1.4*0.6inches).and the Install Dimension is 58*28mm(2.28*1.1inches).
• The shell designed with buckles if you open hole installation,

Specification Voltage Measuring range 7-100V Working current
