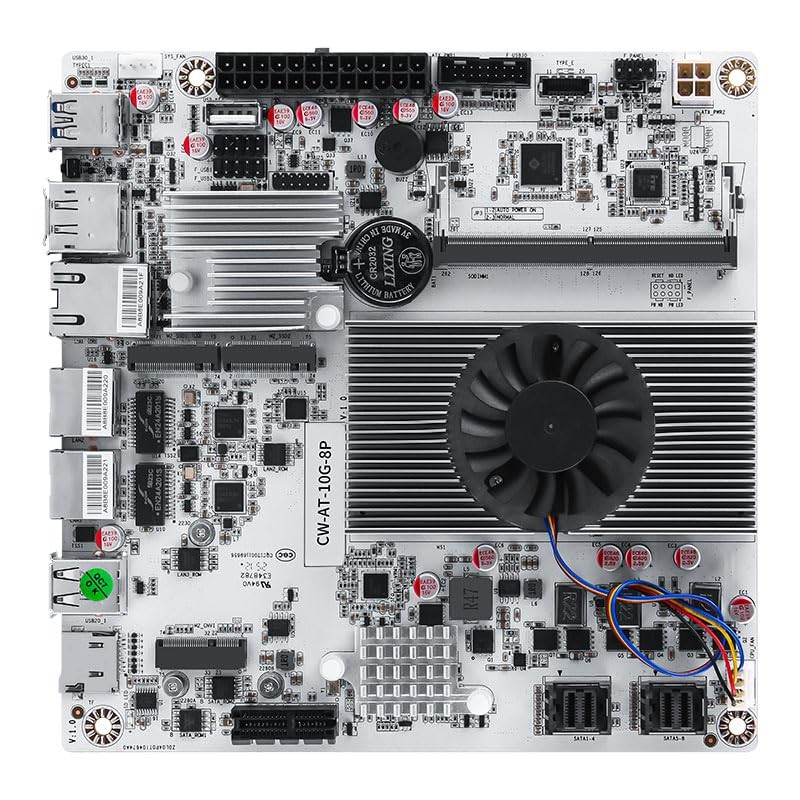

17CM*17CM standard ITX form factor ATX-24Pin+4Pin power supply 1 SO-DIMM DDR5 4800MHz slot, supporting up to 48G 1 Marvell AQC113C 10GBASE-T port + 2 Intel i226-V 2.5GBASE-T ports 2 SFF-8643 terminals (1-to-4) for 8 SATA3.0 ports 2 M.2 PCIe3.0x1 NVMe 2280 sockets 1 HDMI2.0 + 1 DP1.4 dual display, both supporting 4K@60HZ 1 USB3.2 (USB-A) + 1 Type-C (USB-C) with 10Gbps speed 1 PCI-E3.0 x1 signal break-out slot compatible with x1/x4/x8 expansion cards 1 USB2.0 female port + 1 USB3.0 female port + 1 Type-E female port 1 M.2 PCIe&CNVi WiFi slot, supporting AX210 and WiFi6e modules 1 TF card slot for storage and partial system booting
High Productivity: 1 SO-DIMM DDR5 memory slot supports 4800MHz by default; 2*M.2 NVMe PCle 3.0x1 signals, 8*SATA3.0 (2 ASM1164 chip extensions), 1*TF card storage, 1*MarvellAOC113C-B1-C RJ45 10G electrical port 2*Intel i226- V RJ45 2.5G electrical port.
Dual 4K monitors: This mini-ITX board has HDMI2.0 and DP1.4 ports and supports 4K@60Hz frequencies.
SIZE AND BASIC FEATURES: The white NAS board is powered by the N100 N150 N305 N355C processor, which comes in a 6.7“ x 6.7” mini-ITX form factor, has a base TDP of 50W, and supports Windows 10/11, Linux, and Linux.
Note: You can contact our customer service for any product questions or suggestions. We serve every customer seriously around the clock. We look forward to receiving your support. Customers are family
