• U.FL (I-PEX MHF1) MALE for Mating with Female RF Connectors on PCI, PCIe, mPCIe, and other circuit boards
• SMA FEMALE BULKHEAD JACK for Connection to External Antennas or Other Wireless Equipment
• ULTRA LOW-LOSS Thin & Flexible RF1.37mm 50 Ohm Coax - 8 inches (20 cm) - Best for High Frequencies
• SOLID SILVER-PLATED COPPER CORE, GOLD-PLATED PINS and TINNED COPPER SHIELDING Minimize Signal Loss
• Not for use with M.2 (NGFF) sized expansion cards or modems - those typically use the MHF4 connector interface

2 pack

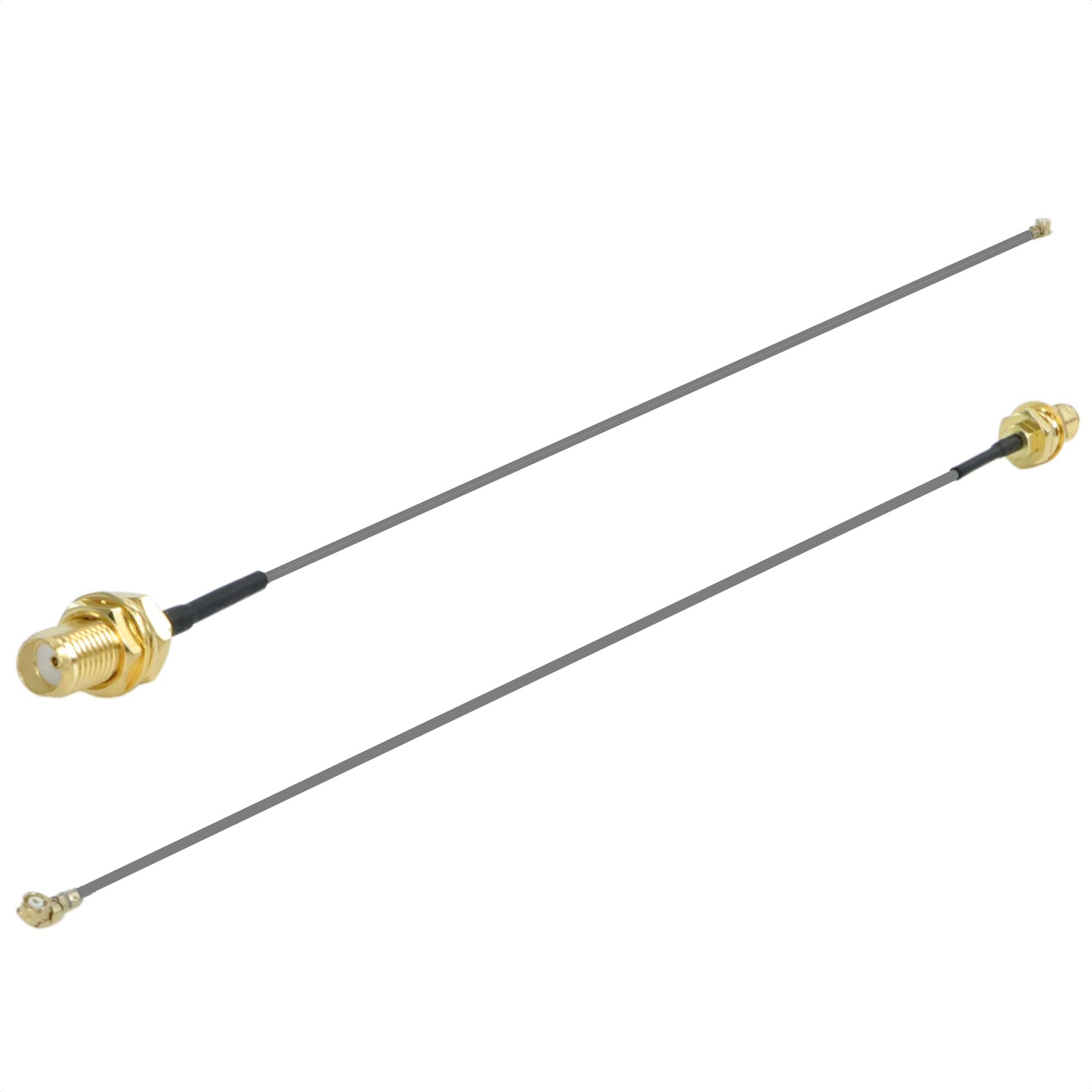

This short high quality coax jumper cable is used to connect external SMA Male devices such as antennas to RF radio sources which have circuit board-level surface mounted Hirose U.FL (I-PEX MHF1) connection points.

Common applications include:
- 4G / 5G cellular modems
- Routers
- MiFi Hotspots
- PCI Expansion Cards
- Development Boards
- Software Defined Radio (SDR) Systems
- GPS
- Bluetooth
- ZigBee
- Helium
- LoRa
- Drones
- Radio Controlled (RC) Cars, Boats & Planes
- Video Transmission (VTX)

This adapter cable is made with RF1.37mm coax which has lower signal loss (attenuation) at high frequencies than most other micro-coaxes, yet is thin and flexible enough for most applications. Its 8 inch length gives you lots of flexibility for routing the cable inside around tight spaces in your chassis without sacrificing performance.

NOTE: U.FL connectors are not designed to withstand repeated mating cycles.

Specifications
Frequency Range: DC to 6 GHz
Connector 1: Standard U.FL
Connector 2: Standard SMA Female Straight
Pins: Gold-Plated
Cable Type: RF1.37 mm
Cable Length: 8 inches (200 mm)
Impedance: 50 Ohm
VSWR:
