Instantly add 8 PoE devices to any network switch. This injector will combine power and data onto the Ethernet cable for up to 8 PoE devices. All devices will receive the same voltage (48v) and will share up to 120 watts of power. Please check device specifications to calculate power budget.
Product Features:
Extends power up to 328ft (100 meters)
10/100/1000 gigabit data rate
Power up to 8 devices in unit - with 120 watts total combined power
IEEE 802.3af - Operates on Mode A (pins 1,2 3,6)
Shielded RJ45 Ports - 8 data in, 8 Data + PoE out
Passive "always on" power
48 volt 120 watt UL power supply included - 110 to 220 volt AC operation, 90% efficient UL, CE and FCC approved
Devices:
IP phones
WiFi Access points
IP Cameras
802.3af Devices
Devices labeled "12 volt, POE" (*please see our video on this topic)
Other products from
GPOE-4A-48v48w: 4-Port Gigabit injector
GPOES-8-7AB-48v60w: 8-Port integrated gigabit switch
POE-8-48v60w: 8-Port midspan injector with 10/100 data and 60 watts
POE-8-48v120w: 8-Port midspan injector with 10/100 data and 120 watts
POE-12-48v120w: 12-Port midspan injector with 10/100 data
GPOE-16A-48v120w: 16-Port rackmount gigabit injector
POE-TESTER-GEN2: Voltmeter to display power used by a device
5 volt and 12 volt PoE splitters

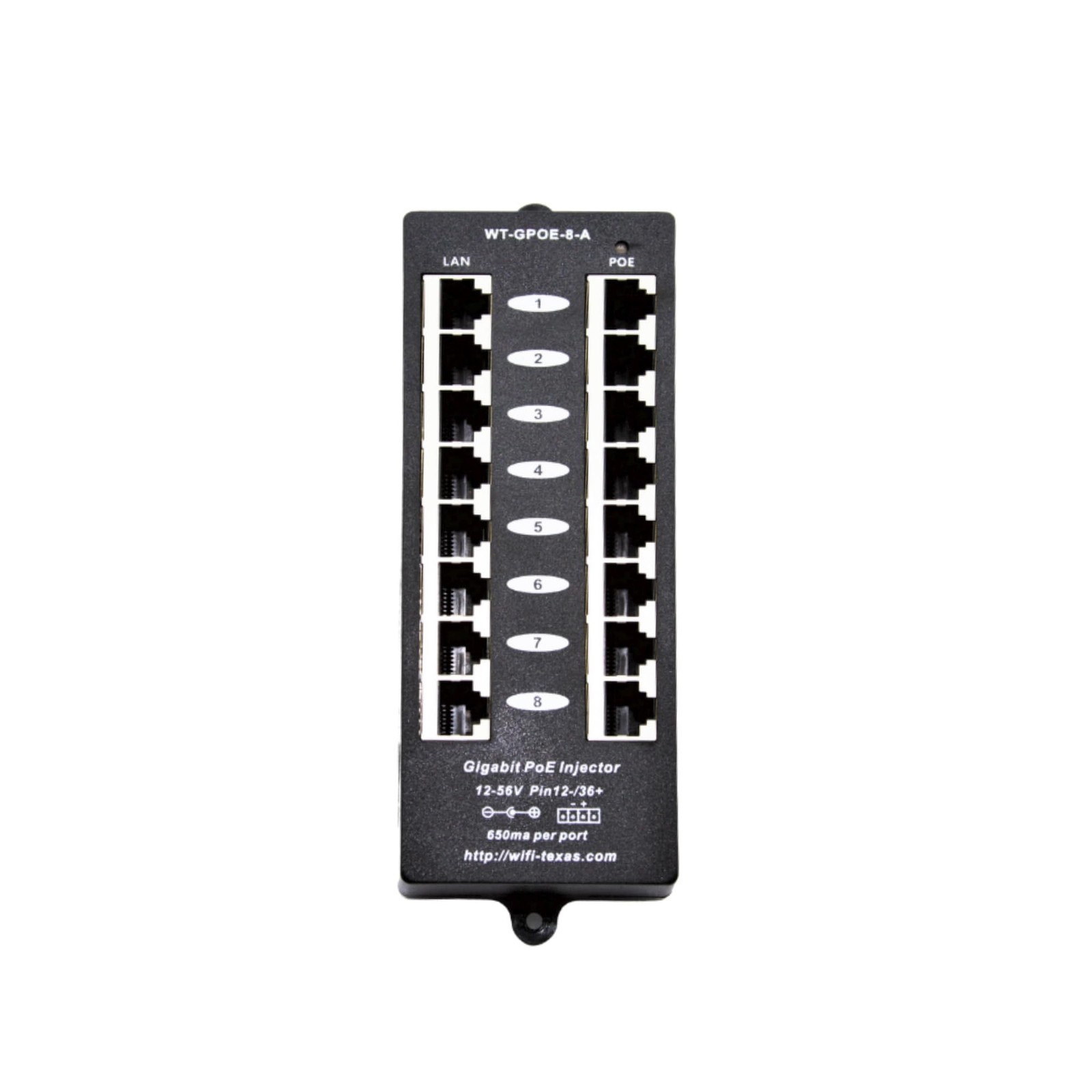

Simplify installations, cut costs, and instantly upgrade your network to PoE using this unmanaged midspan passive PoE injector with 8 Data In (LAN) ports, 8 Data + Power Out (PoE) ports, and 10/100/1000 Gigabit data capability.
Supply continuous Power over Ethernet for up to 8 passive 802.3af devices like IP cameras, VoIP phones, WiFi Access Points, and other low voltage devices. Gigabit PoE injector delivers transparent VLAN passthrough.
With built-in wall tabs, this Passive PoE Midspan can be mounted to the wall to save valuable desk or rack space. The front facing design makes it easy to access ports from a wall mount position instead of a rack mount.
Dual power inputs: Includes a 48 volt 120 watt UL/CE/FCC certified DC power supply for IEEE 802.3af applications. Or, directly wire a 240w power supply to the green Phoenix connector and deliver up to 30w per port for 802.3at devices.
Plug and play: Add PoE to a non-PoE switch. with your current Gigabit switch or router. Backed by a 1-Year and a 30-Day, no questions asked, return policy. Pleasefor assistance.
