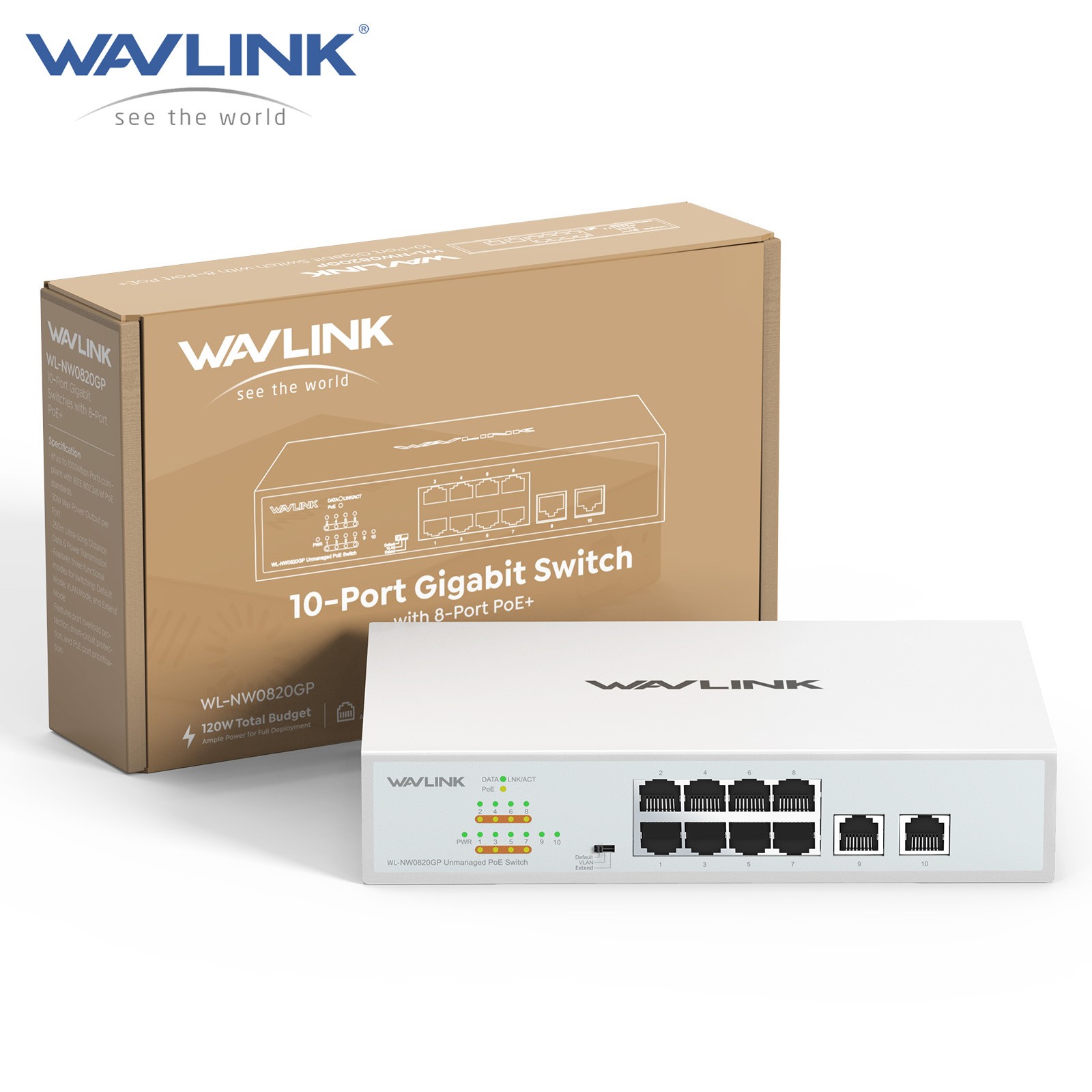

10-Port PoE+ Switch (8 PoE)
Wavlink 10 Full Gigabit Ports Switch with 8 PoE+, 2 Gigabit Ethernet Uplink, 120W Total PoE+ Ports Support 802.3af/at, Unmanaged Network Switch with VLAN, Default, Extend Modes, Wall and Desktop Mount
[Full Gigabit Ports Switch with 8 PoE+] This network switch is equipped with 10 Gigabit Ethernet ports and 8 PoE+ ports compliant with the IEEE 802.3af/at standard. Each PoE+ port supports both Gigabit data transmission and power delivery simultaneously over a single Ethernet cable. It is fully compatible with IP cameras, wireless AP, and other PoE devices, eliminating the need for additional power adapters and thereby simplifying the cabling and installation process.
[Total 120W PoE+ Switch] Build-in 120W high PoE output power, each PoE port can automatically detect and recognize IEEE 802.3af/at and each PoE port supports up to 30W output. Widely used in IP cameras, Wireless Access Point, IP Phone, Computer Networks, etc.., ensuring stable, high-speed network performance without latency or packet loss.
[Default, VLAN, Extend] Supports three smart modes: Default Mode, VLAN Mode, and Extended Mode. Default Mode enables seamless connectivity for office networks. VLAN Mode isolates ports to enhance network security and reduce signal interference, ensuring stable operation. Extended Mode extends the transmission distance to 250 meters, making it suitable for long-distance deployments, though signal strength will diminish with distance.
[Plug and Play] Plug and play for effortless setup—just connect the network cable and power supply to start using right away. It automatically recognizes connected devices with no complicated configuration required. Designed for flexible placement, it supports both desktop and rackmount installation to fit different deployment scenarios.
[Wide Application] Boasting a compact sturdy metal housing, clear LED indicator lights, and a high-performance fan with heat dissipation, this switch delivers reliable cooling and long-lasting durability. It works perfectly for a wide range of applications including IP cameras, wireless access points, IP phones, and office computer networking systems.
10 Port Full Gigabit Switch with 8 PoE Ports
This 10-port full gigabit switch features 8 IEEE 802.3af/at PoE+ ports with a total 120W PoE budget, supporting up to 30W per port and auto device detection. It offers three smart modes—Default, VLAN and Extend—to suit regular networking, port isolation and 250m long-range transmission. Plug-and-play design needs no complex setup, compatible with desktop and rackmount installation. Built with durable metal casing, LED indicators and efficient heat dissipation, it delivers stable lag-free performance and is ideal for IP cameras, wireless APs, IP phones and office network use.
LED Indicator
PWR (Green)
Off: No power supply. / On: Switch is powered on.
LINK/ACT (Green)
Off: No device connected. / On: Link established at 10/100/1000Mbps. / Blinking: Data is being transmitted/received.
PoE (Orange)
Off: No PoE device (PD) connected. / On: PoE power is being supplied successfully. / Blinking: PoE power supply is abnormal.
Safety Note
This device has a permanently connected protective ground conductor, which must be connected to the building’s grounding system by a qualified professional.
Mode
Default Mode: Standard gigabit PoE switch operation, with all ports communicating freely.
VLAN Mode (Isolation Mode): Ports 1–8 are isolated from each other for enhanced security, but can communicate with uplink ports 9–10.
Extend Mode (Monitoring Mode): Forces ports 1–8 to 10 Mbps for long-range transmission up to 250 meters.
Specification
- 8*up to 1000Mbps Ports compliant with IEEE 802.3at/af PoE standards.
- 30W Max Power Output on Each PoE Port
- 250m Ultra-Long Distance Data & Power Transmission
- Features three functional modes for switching: Default Mode, VLAN Mode, and Extend Mode
- Features port overload protection, short-circuit protection, and PoE port prioritisation
Attention
- Handle with care to protect precision components from impact or vibration. Upon receipt, inspect for damage or missing parts and contact support immediately if needed.
- Install in a dry, well-ventilated area with humidity below 90%. Keep away from corrosive gases and strong electromagnetic sources. Ensure adequate space around the unit and do not stack equipment on it.
- Use only certified three-hole sockets with proper grounding. Ensure the protective ground (PGND) wire is correctly connected.
- Do not open the chassis. Unauthorized opening risks severe electric shock and will void the product warranty. All repairs must be performed by qualified personnel only.
In the Box
1x Network Switch
1x Power Cord
1x Quick Start Guide
1x Installation package
18-Port PoE+ Switch (16 PoE)
Wavlink 18 Full Gigabit Ports Switch with 16 PoE+, 2* 1000Mbps SFP Uplink, 250W Total PoE+ Ports Support 802.3af/at, Unmanaged Network Switch with VLAN, Default, Extend Modes, Rackmount Plug and Play
[18 Full Gigabit Ports] Equipped with 16 PoE+ ports plus 2 dedicated Gigabit SFP uplink ports, this switch delivers flexible expansion and seamless network connectivity. The 16 PoE ports effortlessly power your IP cameras, wireless access points, IP phones and other PoE-compatible devices. Meanwhile, the 2 SFP uplink ports support fiber network connection and long-distance data transmission, effectively boosting network bandwidth and extending coverage.
[Total 250W High Power PoE+ ] Total 250W High Power PoE delivers ample stable power to run multiple PoE devices simultaneously. Fully compliant with IEEE 802.3af/at standard, each PoE port supports up to 30W output, perfectly powering IP cameras, wireless access points, IP phones and more. No extra power adapters required, greatly simplifying wiring and installation.
[Widely Used] Featuring a metal chassis, a high-performance fan design, and ventilation slots on both sides, this device supports both desktop placement and wall-mount installation. Equipped with 16 PoE ports and 2 SFP uplink ports, it is suitable for a variety of networking scenarios in homes, offices, and commercial settings, including computer networks, security surveillance, wireless coverage, and multi-device access and transmission.
[Default, VLAN, Extend] Supports three smart modes: Default Mode, VLAN Mode, and Extended Mode. Default Mode enables seamless connectivity for office networks. VLAN Mode isolates ports to enhance network security and reduce signal interference, ensuring stable operation. Extended Mode extends the transmission distance to 250 meters, making it suitable for long-distance deployments, though signal strength will diminish with distance.
[Plug and Play] This switch supports the automatic detection of standard PoE devices and features a built-in power. Simply connect the power cord and connect the device via an Ethernet cable—no additional configuration is required. The LED indicator on the panel displays the device status, making it very easy to use and maintain.""
""18 Port Full Gigabit Switch with 16 PoE Ports
This 18-port full gigabit switch features 16 IEEE 802.3af/at PoE+ ports with a total 250W PoE budget, supporting up to 30W per port and auto device detection. It offers three smart modes—Default, VLAN and Extend—to suit regular networking, port isolation and 250m long-range transmission. Plug-and-play design needs no complex setup, compatible with desktop and rackmount installation. Built with durable metal casing, LED indicators and efficient heat dissipation, it delivers stable lag-free performance and is ideal for IP cameras, wireless APs, IP phones and office network use.
LED Indicator
PWR (Green)
Off: No power supply. / On: Switch is powered on.
LINK/ACT (Green)
Off: No device connected. / On: Link established at 10/100/1000Mbps. / Blinking: Data is being transmitted/received.
PoE (Orange)
Off: No PoE device connected. / On: PoE power is supplied normally. / Blinking: PoE power supply is abnormal.
PoE Max (Green)
Off: Load is below 80% of PoE capacity. / On: Load exceeds 80% of PoE capacity.
Safety Note
The device has a permanently connected protective ground wire, which must be installed by a qualified professional.
Mode
Default Mode: Standard gigabit PoE switch operation, with all ports communicating freely.
VLAN Mode (Isolation Mode): Ports 1–16 are isolated from each other for enhanced security, but can communicate with uplink ports 17–18.
Extend Mode (Monitoring Mode): Forces ports 1–16 to 10 Mbps for long-range transmission up to 250 meters.
Specification
- 16*up to 1000Mbps Ports compliant with IEEE 802.3at/af PoE standards.
- 30W Max Power Output on Each PoE Port
- 250m Ultra-Long Distance Data & Power Transmission
- Features three functional modes for switching: Default Mode, VLAN Mode, and Extend Mode
- Features port overload protection, short-circuit protection, and PoE port prioritisation
Attention
- Handle with care to protect precision components from impact or vibration. Upon receipt, inspect for damage or missing parts and contact support immediately if needed.
- Install in a dry, well-ventilated area with humidity below 90%. Keep away from corrosive gases and strong electromagnetic sources. Ensure adequate space around the unit and do not stack equipment on it.
- Use only certified three-hole sockets with proper grounding. Ensure the protective ground (PGND) wire is correctly connected.
- Do not open the chassis. Unauthorized opening risks severe electric shock and will void the product warranty. All repairs must be performed by qualified personnel only.
In the Box
1x Network Switch
1x Power Cord
1x Quick Start Guide
1x Installation package
28-Port PoE+ Switch (24 PoE)
Wavlink 28 Port Gigabit Ethernet Switch Desktop/ Rackmount Plug and Play, 24 PoE, 2 SFP, 2 Gigabit Port Uplink, 250W Total PoE+ Support 802.3af/at, Unmanaged Switch with VLAN, LAG, Extend, PD-Alive Mode
[28 Full Gigabit Ports] Featuring 24 PoE+ ports alongside 2 regular uplink ports and 2 independent SFP ports, this switch boasts outstanding expandability and smooth network transmission. The 24 PoE+ interfaces are ideal for powering IP cameras, WiFi access points, IP phones and various PoE-enabled gadgets. In addition, the built-in SFP ports allow fiber optic networking and long-distance data transfer, which efficiently upgrade network throughput and extend transmission range.
[Total 250W High Power PoE+ ] Total 250W High Power PoE delivers ample stable power to run multiple PoE devices simultaneously. Fully compliant with IEEE 802.3af/at standard, each PoE port supports up to 30W output, perfectly powering IP cameras, wireless access points, IP phones and more. No extra power adapters required, greatly simplifying wiring and installation.
[Widely Used] Adopting robust metal casing with dual-side vents and efficient cooling fan, it ensures excellent heat dissipation. Supporting both desktop and rack-mounted installation, this switch features flexible network access and stable fiber uplink performance. It is widely applicable for home, office and commercial scenarios, ideal for security surveillance, wireless network deployment and multi-device data transmission.
[VLAN, Extend, PD-Alive, LAG ] It supports four practical working modes including VLAN, Extend, PD-Alive and LAG. VLAN mode realizes port isolation to strengthen network security and cut down signal interference. Extend mode stretches transmission distance for long-range layout needs. PD-Alive keeps powered devices stably online without unexpected disconnection. LAG mode aggregates bandwidth to boost data transmission speed and improve overall network stability.
[Plug and Play] This switch can automatically recognize standard PoE devices and comes with integrated power supply. Just plug in power and connect Ethernet cables to get started, with zero extra setup needed. Built-in LED indicators clearly show real-time operating status, ensuring hassle-free operation and simple daily maintenance.
28 Port Full Gigabit Switch with 24 PoE Ports
This 28-port full gigabit switch features 24 IEEE 802.3af/at PoE+ ports with a total 120W PoE budget, supporting up to 30W per port and auto device detection. It offers four smart modes—PD-Alive, LAG, VLAN and Extend—to suit regular networking, port isolation and 250m long-range transmission. Plug-and-play design needs no complex setup, compatible with desktop and rackmount installation. Built with durable metal casing, LED indicators and efficient heat dissipation, it delivers stable lag-free performance and is ideal for IP cameras, wireless APs, IP phones and office network use.
LED Indicator
PWR (Green)
Off: No power supply. / On: Switch is powered on.
LINK/ACT (Green)
Off: No device connected. / On: Link established at 10/100/1000Mbps. / Blinking: Data is being transmitted/received.
PoE (Orange)
Off: No PoE device (PD) connected. / On: PoE power is being supplied successfully. / Blinking: PoE power supply is abnormal.
Safety Note
This device has a permanently connected protective ground conductor, which must be connected to the building’s grounding system by a qualified professional.
Mode
VLAN Mode (VLAN Isolation Mode): Ports 1-24 are isolated from each other but can communicate with 25-28.
Extend Mode (Monitoring Mode): Forces Ports 1-24 to 10Mbps for stable, long-distance transmission up to 250 meters.
PD-ALIVE Mode: Automatically detects if a PoE camera disconnects and reboots it.
LAG Mode (One-Key Aggregation Mode): Combines Ports 27-28 into a single high-bandwidth link. If one port fails, the other maintains the connection.
Specification
- 24*up to 1000Mbps Ports compliant with IEEE 802.3at/af PoE standards.
- 30W Max Power Output on Each PoE Port
- Features One-Click Link Aggregation
- Features four functional modes for switching: VLAN, Extend, PD-LIVE, LAG
- Supports PD-Alive, enabling automatic power-off and restart of PD devices
- Features port overload protection, short-circuit protection, and PoE port prioritisation
Attention
- Handle with care to protect precision components from impact or vibration. Upon receipt, inspect for damage or missing parts and contact support immediately if needed.
- Install in a dry, well-ventilated area with humidity below 90%. Keep away from corrosive gases and strong electromagnetic sources. Ensure adequate space around the unit and do not stack equipment on it.
- Use only certified three-hole sockets with proper grounding. Ensure the protective ground (PGND) wire is correctly connected.
- Do not open the chassis. Unauthorized opening risks severe electric shock and will void the product warranty. All repairs must be performed by qualified personnel only.
In the Box
1x Network Switch
1x Power Cord
1x Quick Start Guide
1x Installation package
"
