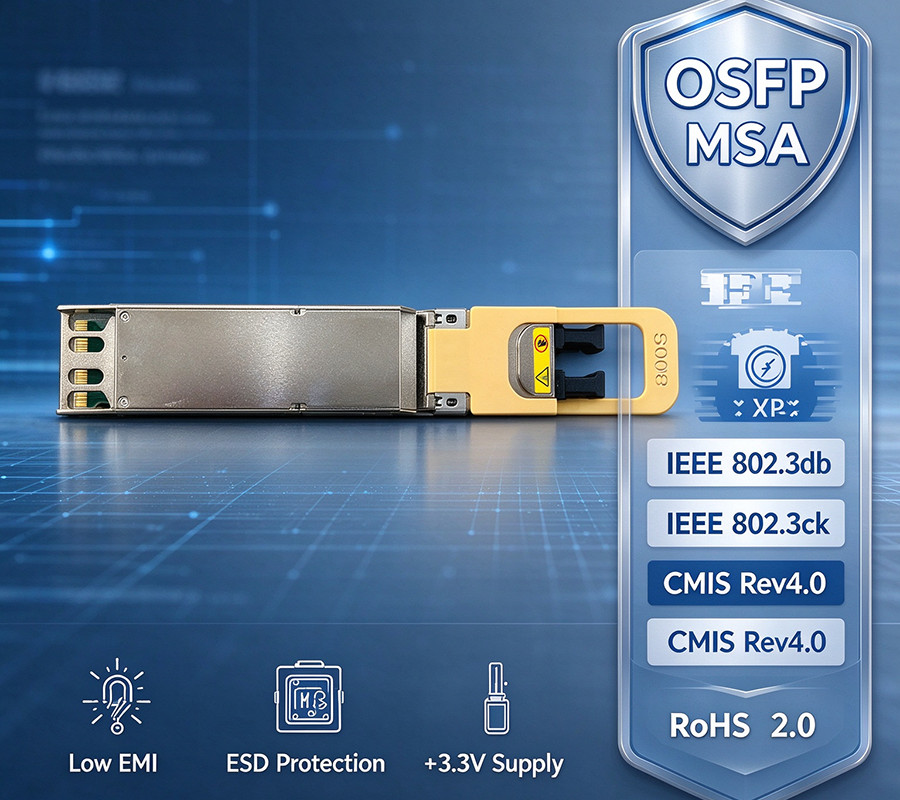

Multi-mode OSFP 800G 2*VR4 CloseTop 50m 2*MPO-12 APC 850nm Optical Transceiver
The module is a cost-effective module with high performance, which is optimized for data center, supporting data-rate of 8x53.125GBd PAM4. Its transmission distance is up to 50m on OM4/OM5 MMF.
The module mainly consists of two parts: the transmitter part and the receiver part. The transmitter part consists of 850nm VCSEL array and driver. The receiver part consists of trans-impedance amplifier (TIA) and PIN photo diode array. The high-speed electrical interface is based on low-voltage logic, with nominal 100-ohm differential impedance, AC coupled in the module.
Users can access a series of registers in transceiver to access monitoring and configuration data through two wire serial interfaces. This interface uses a single address, A0h, with a memory map divided into a lower and upper area. Basic digital diagnostic data is held in the lower area while specific data is held in a series of tables in the high memory area.
Features
53.125GBd PAM4 ×8 channel Optical interface
53.125GBd PAM4 ×8 channel Electrical interface
Up to 50m transmission distance on OM4/OM5 MMF
850nm VCSEL transmitter and PIN receiver
OSFP MSA Type2 package with 2*MPO-12 APC
Very low EMI and excellent ESD protection
+3.3V power supply
Power consumption less than 15.5W
Operating case temperature: 15~70°C
IIC rate up to 1MHz
Application
800G Ethernet
2x400G InfiniBand
Compliance
OSFP MSA
IEEE 802.3db
IEEE 802.3ck
CMIS Rev4.0
OIF-CEI-5.0
RoHS 2.0
Mechanical Dimensions
