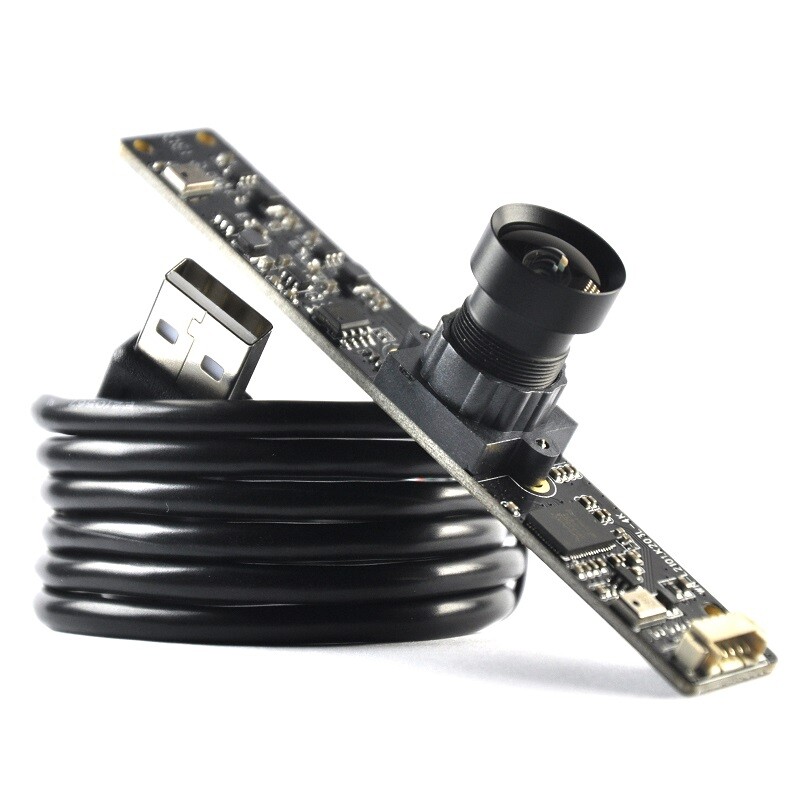

Main Parameters:·Module Size: 90*15mm·Pixel Size: 1.45*1.45μm·Lens:EFL: 2.35mm F/NO: 2.4mm·Max. Resolutions: 3840H*2160V·Frame Rate: 30fps·Output Format: MJPEG, YUY2·Field of View: 120°·Focus Mode: Fixed Focus·Shutter Mode: Electronic Rolling Shutter·Compatibility: UVC-compliant, Plug and Play·Cable Length:1M·Interface :5PIN 1.25MM Connector·Controllable Parameters:Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Contrast, Exposure·Supported OS:Windows, Android, Linux, Wince, Mac OS
Supported Resolution and Frame Rate:
Format
Resolution
Frame Rate (USB2.0)
MJPEG
3840x2160(4K)
30FPS
2952x1944
30FPS
2560x1440
30FPS
1920x1080 (1080P)
30FPS
1280x720 (720P)
30FPS
640x480 (VGA)
30FPS
YUY2
3840x2160(4K)
2FPS
2560x1440
2FPS
1920x1080 (1080P)
5FPS
1280x720 (720P)
10FPS
640X480 (VGA)
30FPS
PIN Definition:
Pin No.
Signal Name
Description
1
VCC
5V Power
2
DM
USB2.0 Data+
3
DP
USB2.0 Data-
4
GND
GND
5
GND
GND
Working Condition:
Pin No.
Signal Name
Description
1
VCC
5V Power
2
DM
USB2.0 Data+
3
DP
USB2.0 Data-
4
GND
GND
5
GND
GND
Package Include:1x USB Camera Module
