Item description from the seller

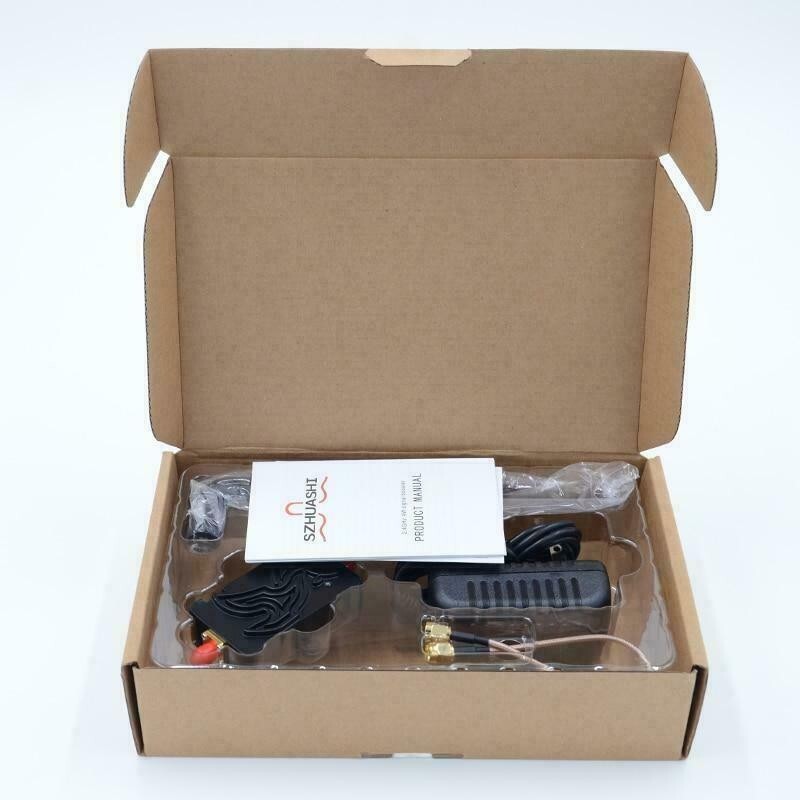

Packing List (bulk pack):
- 1 x Booster
- 1 x Power adapter
- 1 x SMA cable
- 1 x 6dBi Antenna
Description
The 5.8GHz WLAN Signal Booster is designed for IEEE 802.11n/ac Wireless LAN applications. It adopts the direct sequence spread spectrum (DSSS) and orthogonal frequency division multiplexing (OFDM) technology of WAN communication. The product is compatible with time division duplexing (TDD) method of WLAN and using rapid microwave detection technology to provide high linearity amplification. The signal booster can work with most WLAN/Wi-Fi devices and increase the WLAN signal strength, therefore a larger WLAN coverage and more stable transmission rate.
Key Features
50X the power, Improving the link quality and coverage of certified WLAN devices
Ultra-low noise, improve the receiving sensitivity, and extended receiving distance
Power input voltage 12V
Working with certified IEEE 802.11n/ac Wireless LAN devices
Simply plug and play, no software is required
Operating mode is TDD, 5.8GHz is extensible
All metal covering, improve heat dissipation
Specifications
Frequency Range: 5.725~5.850GHz
Operating Voltage: 12V
Receiving Gain: 16dB±1
Transmission Gain: 17dB±1
Input Trigger Power: Min: 3dBm Max: 22dBm
Maximum Output Power (P1dB): 39dBm (8W)
EVM: 5%@31dBm 802.11 54Mbps OFDM 64QAM BW 20MHz
DC Supply Current: 700mA@Pout 31dBm 12V
Noise Figure: ＜3.0dB
TX/RX Switch Time Delay：＜1us
LED Indicator: Transmitter: Green; Receiver: Red; Transducers: Orange
Operating Ambient Temperature: -20℃～+70℃
Operating Humidity: ＜95%RH
Dimension: 103.5mm×96.5mm×30.5mm
Net Weight: 0.4Kg
Installation Instructions
Step 1: Disconnect power supply to AP/Router;
Step 2: Detach the antenna from your certified wireless AP/Router
Step 3: Connect Rg316 cable to the booster and AP/Router
Step 4: Connect the antenna to the other end of the booster
Step 5: Connect the power supply to the booster first and subsequently the AP/Router
