--integrated with two RTL8111CEthernet controllers

CPU

• Supports FSB 533/800/1066 CPU
• Supports Pentium HT(Hyper Threading Technology)CPU
• Supports ConroeLGA775 CPU
• Supports Conroe-L LGA775 CPU
• Supports Pentium D LGA775 CPU
• Supports Pentium 4 LGA775 CPU
• Supports Celeron D LGA775 CPU

Chipset

• 945GV + ICH7 chipsets
• ITE IT8712FLPC controller
• RTL8111CEthernet controller

Memory

• Dual 240-pin DDRII sockets
• Support DDRII 400/533/667 SDRAM up to 4GB

VGA

• Integrated Graphics controller in 945GV GMCH
• Integrated Graphics Media Accelerator 950
• One VGA Port it can accelerate DirectX 9 performance of hardware,400MHz core frequency,up to 224MB display memory.

Ethernet

• Onboard two RTL8111C10/100/1000Base-T Ethernet controllers
• Full-Duplex supported

IDE SATA & FDD

• One enhanced PCI IDE channels which support up to 2 IDE devices
• Four SATA devices
• Support ATA-100, data transfer rate up to 100MB/sec
• One FDC supports1.2M/1.44M/2.88MFDD

PCI-E PCI ISA AUDIO COM &LPT

• Support One PCI-E X16 devices
• Support five PCI devices
• Support two ISA devices
• Support 7.1 HDAudio
• Support two COM
• Support one LPT

System BIOS

• Award BIOS with 4MB Firmware Hub
• ACPI/PnP supported
• Software WatchDog supported

I/O Output

• Two COM port & one Printer port
• One DB-15 VGA port
• PS/2 mouse and keyboard connectors
• Double Deck downstream USB 2.0 ports
• Two RJ-45 LAN ports

Expansion Slots

• Five PCI slot
• Two ISA slot

Form Factor

• Flex-ATX @305 mm(L) ×244 mm(W), 4 Layers

Note：

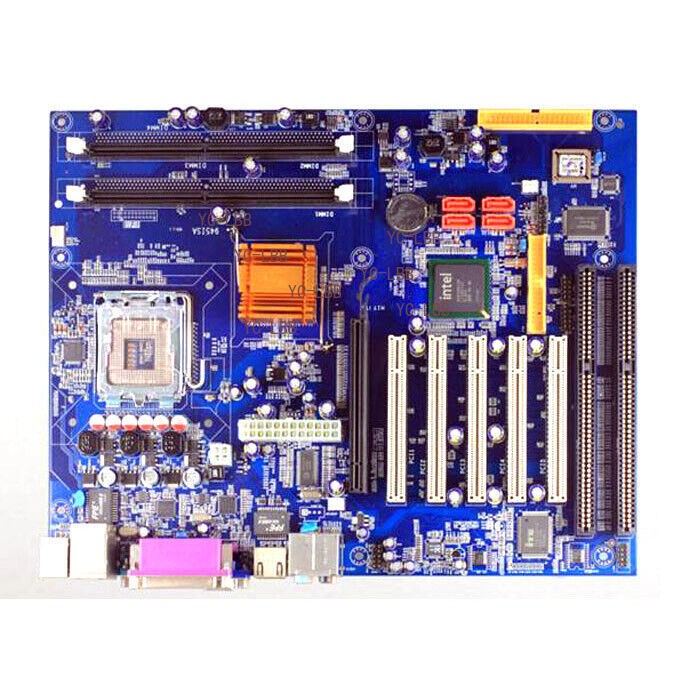

Photo above is only for illustration purposes.
