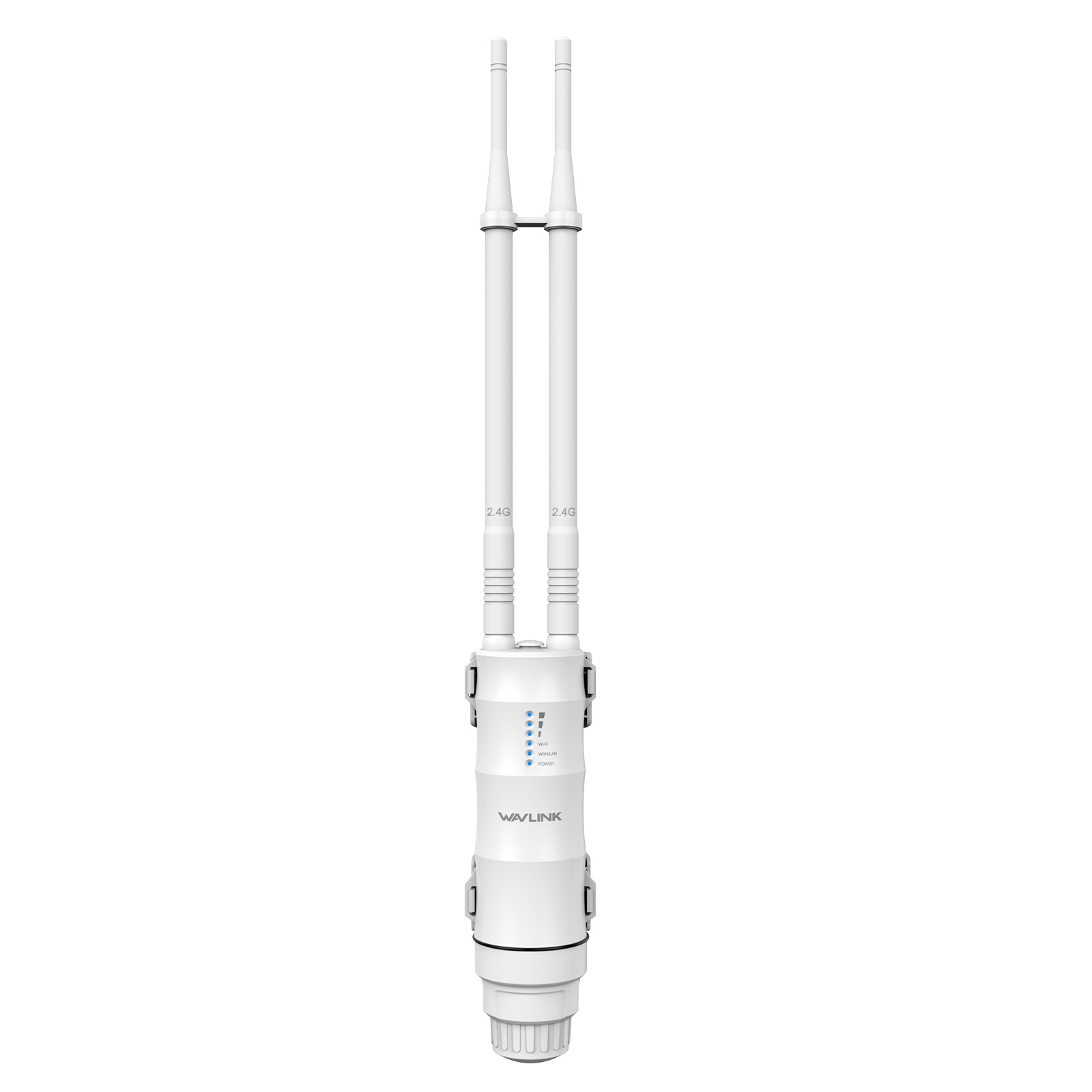

WAVLINK · OUTDOOR AP SERIES · 8 MODELSOutdoor WiFi Access Point & Extender300Mbps → 600Mbps → 1200Mbps → AX1800 → AX3000Eight configurations on one weatherproof platform. IP65/IP67 housing, active & passive PoE, Mesh roaming and up to 3km point-to-point transmission.⛅ IP65 / IP67⚡ 15kV ESD / 4-6kV Lightning🔌 Active + Passive PoE📡 Everything Mesh📡 Up to 3km PtP8Model Choices3000MbpsMax WiFi 6 SpeedIP67Weatherproof100mPoE Cable Run3kmPtP / PtMP LinkSelection GuideChoose Your Performance TierStart with the speed class that fits your bandwidth needs, then pick the antenna profile and port layout that matches your site.Tier 1 · Basic Coverage2.4GHz & Entry Dual-Band300Mbps/2.4G — 300Mbps / 2.4G · 2×7dBi omni · 150m outdoor range.
600Mbps/2.4G+5G — 600Mbps dual-band · 1000mW high-power chipset · 32–64 devices · 100–150m.
Best for: yards, small farms, single-building coverage, basic IoT sensor links.Tier 2 · AC Dual-Band1200Mbps · Wi-Fi 51200Mbps/2.4G+5G — 1200Mbps · 2×7dBi omni · 200m range · up to 32 devices.
1200Mbps/2.4G+5G/4x Antennas/Dual Gigabit Port — 1200Mbps · 4×7dBi omni · dual Gigabit ports · 64–96 devices · 300m range · IP65 · Fat/Fit AP.
Best for: HD surveillance backhauls, RV parks, marinas, mid-size venues needing wired uplink plus LAN out.WiFi 6Tier 3 · WiFi 6 FamilyAX1800 & AX3000WiFi 6/1800Mbps/2.4G+5G — AX1800 · 4×8dBi omni · 2.4G 574 + 5G 1201Mbps.
WiFi 6/3000Mbps/2.4G+5G — AX3000 · 4×8dBi omni · up to 256 devices · all-round coverage.
WiFi 6/3000Mbps/2.4G+5G/6x Omni Antennas — AX3000 · 6×7dBi omni · compact 552g chassis · 360° high-density coverage.
WiFi 6/3000Mbps/2.4G+5G/Directional Antennas(Built-in) — AX3000 · 4×12dBi directional built-in · 3km PtP / PtMP backhaul.
Best for: modern IoT deployments, 4K camera arrays, campus & industrial sites, long-range building-to-building links.Full LineupCompare All 8 802.11 b/g/n300Mbps
2.4G2 × 802.11 a/b/g/n/ac600Mbps
150+4332 × 802.11 a/b/g/n/ac1200Mbps
300+8672 × Antennas/Dual Gigabit Port 802.11 a/b/g/n/ac1200Mbps
300+8674 × 7dBi
OmniIP65Dual Gigabit300mWiFi 6/1800Mbps/2.4G+5G WiFi 6 (ax)1800Mbps
574+12014 × 8dBi
OmniIP67Gigabit—WiFi 6/3000Mbps/2.4G+5G WiFi 6 (ax)3000Mbps
573+24024 × 8dBi
OmniIP67Gigabit256 devicesWiFi 6/3000Mbps/2.4G+5G/6x Omni Antennas WiFi 6 (ax)3000Mbps
573+24026 × 7dBi
OmniIP67Gigabit360° / 552gWiFi 6/3000Mbps/2.4G+5G/Directional Antennas(Built-in) WiFi 6 (ax)3000Mbps
573+24024 × 12dBi
DirectionalIP67Gigabit3km PtPAll models support active PoE (802.3af/at) and passive PoE over a single Ethernet cable up to 100m / 328ft. The PoE converter itself is not waterproof — install it indoors.Core PlatformShared Across the Whole SeriesWhatever tier you choose, these fundamentals come standard.⛅Built for Harsh WeatherIP65 / IP67 dust- and water-resistant housings keep the unit running through rain, snow, wind and heat. Built-in 15kV ESD and 4–6kV lightning protection defend the electronics during electrical storms — essential for coastal, industrial and mountain deployments.🔌One Cable: Data + PowerEvery model supports 802.3af/at active PoE and passive PoE. Run a single CAT5E-or-better Ethernet cable up to 100m / 328ft to mount the unit on a pole, wall or rooftop — no outdoor power outlet and no electrician required.📡High-Gain Antenna DesignDetachable 7dBi / 8dBi omnidirectional fiberglass-tube antennas resist wind and corrosion while boosting coverage. The WN573HP3 instead uses built-in 12dBi directional antennas to concentrate energy for long-distance links.⚙Multiple Modes, Flexible UseSupports Mesh, AP, Router, Repeater and AP+Repeater modes (WN572HP3-B adds Fat/Fit AP; WN570HA1-B adds Fit AP). Router/AP mode converts wired connections into wireless networks; Mesh mode unifies everything under a single network name and password.🔒Wireless SecurityLegacy models use WPA-PSK / WPA2-PSK encryption. WiFi 6 models step up to WPA2-PSK / WPA2-WPA3-MIX. The WN572HP3-B additionally supports WPA3-SAE, WPA/WPA2-Enterprise and Open for business-grade guest isolation and centralized authentication.Warm TipsBefore You Install01The PoE converter is not waterproof — please install it indoors.02Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m / 328ft.03Please install the product 2–3 meters above the ground for better performance.04For the most reliable connection, select a wireless network with a signal strength greater than 70%.05Mesh interconnection support:
WN573HX1 → WN531AX2, WN583AX1, WN573HX1
WN573HX3 → WN586X3, WN572HP3 (latest firmware required), WN573HX3
WN573HP3 → WN586X3, WN583AX3, WN573HX3
WN588HX3 → WN586X3, WN583AX3, WN573HX3
WN572HP3-B → only with WAVLINK devices supporting Everything Mesh technology 06The real performance of the product may vary in accordance with different environmental conditions.WAVLINKOUTDOOR AP SERIES · 300M / 600M / 1200M / AX1800 / AX3000 · IP65 & IP67 · PoE · MESH
