300Mbps, Single Band, 2x High-gain Antennas WAVLINK N300 Wireless Outdoor Access Point with PoE Powered, WAN/LAN Port, Waterproof,
Outdoor Wi-Fi Extender Long Range with AP/Router/Repeater Modes, 2x7 dBi Directional Antennas

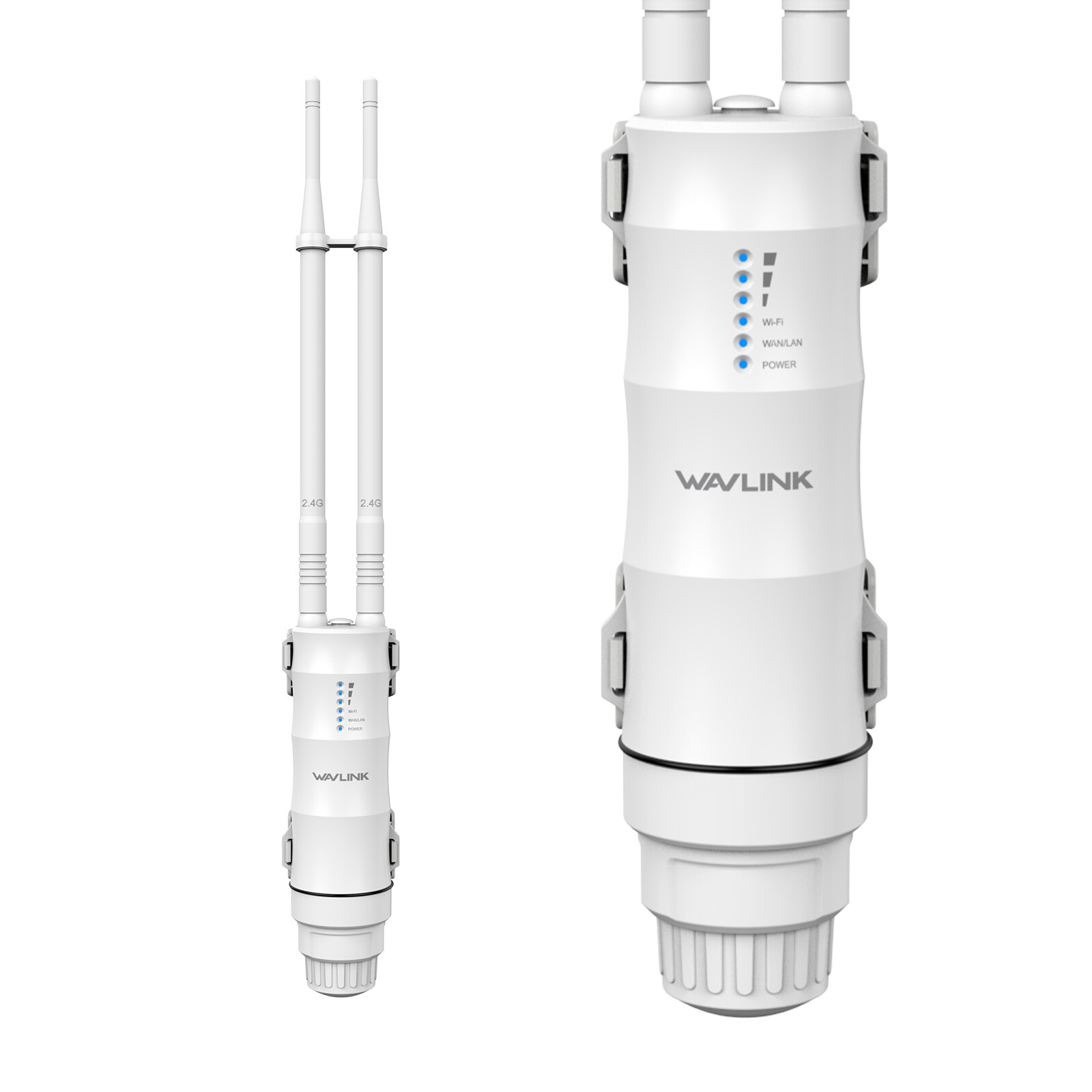

WAVLINK 300Mbps Outdoor Access Point
The WAVLINK HighPower Wi-Fi AP/Repeater/Extender is mainly used for providing free Wi-Fi service
in large areas such as factories, communities, streets, etc. The AP/Repeater/Extender can take an existing 2.4GHz
wireless signal, repeat it, and extend it to a longer range where it is too far away for the router or access point to reach.
And it can support 2.4G transmission speeds of up to 300 Mbps. It has two external antennas, providing even better
wireless performance, transmission rates, and stability. Automatically avoids channel conflicts using its channel selection feature.
Applicable to Kinds of Weather
IP67-rated weatherproof and heat-resistant housing ensures continued operation in harsh outdoor environments.
For example, it is sunny and exposed to the sun; it rains and is wet; it snows and freezes; and there is thunder and lightning.
Applicable to Multiple Scenarios
It is suitable for various large-scale outdoor scenes, whether it is your own yard, outdoor swimming pool,
school, park, playground, or outdoor parking lot.
Waterproof Case Design
The waterproof housing has an IP67 rating for impressive dust and water resistance, allowing it to operate reliably
even when exposed to harsh outdoor conditions or temporary rain.
7dBi Omni Directional Antenna
The high-gain antenna panel has two built-in 7-dBi omni directional antennas, which are designed to strengthen the
WiFi signal in one direction and make it more concentrated. And WiFi coverage in a specific direction is farther than omnidirectional antennas.
How to Install Antennas and Ethernet Cable?
1) Pass the RJ45 cable through the spiral cover.
2) Pass the RJ45 cable through the rubber seal.
3) Pass the RJ45 cable through the holder.
4) Connect the RJ45 cable to the RJ45 port.
5) Spin the 2.4G antenna into the 2.4G external RP-SMA connector.
6) Tighten to secure the holder.
7) Insert the rubber seal into the holder.
8) Secure the spiral cover by screwing it on.
Note: The PoE converter is not waterproof, please install it indoors. Please make sure
your Ethernet cable is CAT5E or above certified and shorter than 100m/328ft.
Installation Steps for the Device
1) Fasten the main body holder.
2) Plug the device into the holder.
3) Connect one end of an Ethernet cable to the "PoE" port of the PoE converter.
4) Connect one end of another Ethernet cable to the "LAN DATA IN" port of the PoE converter,
and connect the other end to a "LAN" port of your router.
5) Plug the Power Adapter into the power outlet.
6) Push the "ON/OFF" button on the PoE converter to power on.
Warm Tips
1.The PoE converter is not waterproof, please install it indoors.
2.Please make sure your Ethernet cable to the outdoor router is CAT5E or above certified and shorter than 100m/328ft.
3.Please install the product 2-3 meters above the ground for better WL-WN570HN2-B
2.Ports: 1 x WAN/LAN 100Mbps
3.Button: 1 x Reset(8s); Status LED: 1 x Power, 1xWAN/LAN, 1 x WiFi , 3 x Signal
4.Power Supply: DC 54V/0.3A Power over Ethernet(Passive), DC 48V Power over Ethernet(Active)
5.Wireless Standard: IEEE 802.11 b/g/n
6.Frequency Band/Speed: 2.4GHz(300Mbps)
7.Antenna: 2 x 7dBi Omni Directional Antennas
8.Wireless Security: WPA-PSK/WPA2-PSK encryption
9.Unit Size(without antennas): 18cm x 5cm x 5cm/ 7.1in x 2in x 2in (L x W x H ); Antenna Length: 25cm/9.8in
10.Ethernet Cable Length: 100cm/39.4in
11.Power Adapter Cable Length: 120cm/47in
12.Operating Temperature: Temperature: 150m(Change with the Actual Environment)
In the Box
1x N300 Outdoor Access Point
2x 7dBi High-gain Antennas
1x RJ-45 Ethernet Cable
1x Power Adapter
1x PoE Converter
1x Main Body Holder
2x Cable Ties
1x Screw Fitting Kit
1x Quick Start Guide
600Mbps, Dual Band, 2x High-gain Antennas
Features forAC600 Wireless Indoor/Outdoor Access Point, Outdoor WiFi Extender
Withstand Harsh Outdoor Climates- IP65-rated weatherproof housing that ensures continued operation in harsh outdoor environments or
in climates of extreme cold, heat or continuous moisture; Robust weatherproof case withstands harsh outdoor conditions;
Withstanding broad ranges of humidity and temperature (-30°C~70°C) (-22°F~158°F); 15KV ESD, 4KV lightning protection,
ensure stable connection in harsh outdoor conditions
Say Goodbye to Weak Wi-Fi Signal- This WiFi Signal Booster comes with next generation 802.11AC Wi-Fi technology,
dual band external antennas provides up to 2.4GHz 150Mbps and 5GHz 433Mbps. Resolve the problem with a weak signal in an excellent manner,
help to boost WiFi signal strength.The WAN port support 100Mbps.Multi Operation Modes- The Outdoor Wi-Fi Access Point has integrated Power over Ethernet (PoE) support, allowing it to be installed in areas where
power outlets are not readily available by combing your power and network data connection into a single RJ-45 cable.Support Repeater, AP,Router and
WISP as operating modes. In AP mode, it provides Access Point, Client, Client Repeater modes for wireless solutions,you can use
for different modes as you wish, Support 3 LEDs wireless signal strength.Built-in High Power Amplifiers- High Power Amplifiers PA+LNA 600mW and enhanced receiver design increase transmission power up to 5x .
More strong penetration & longer range coverage than the general access point, ideal for providing Wi-Fi service in big area such as factory,
community, street or etc. Feature 2 x RP-SMA connectors for external antennas, and higher antenna gain extensively strengthens Wi-Fi signal
and expands wider coverage in the open air.2 x 7dBi Detachable Omni Directional Antennas- Feature 2 x RP-SMA connectors for external antennas, and higher antenna gain
extensively strengthens Wi-Fi signal and expands wider coverage in the open air, stability technology automatically avoids channel conflicts
using its channel selection feature, meet outdoor long range coverage wireless network requirement, cover hard-to-reach dead zones.Specifications:
1.Operating Temperature: -30°C~70°C(-22 ~158F)
2.Storage Temperature: -40°C~70°C(-40~158F)
3.Power Plug: US Plug
4.Voltage: 100-240V
5.Support 2.4 GHz 5GHz
6.Standard:802.11 ac/a/b/g/n
7.Maximum WLAN security with WPA2,WPA and WEP(128/64)
8.Distance:Outdoor 150m(Change with the Actual Environment), If you use another outdoor wavlink device to
repeat the signal of the 1st wavlink outdoor device,the signal could reach 1000m.What’s in the package?
1 x WiFi AP/Router
2 x Antenna
1 x power Adapter
1 x POE Converter
1 x RJ-45 Networking Cable
1 x Main body holder
1 x Screw fitting
2 x Cable ties
1 x Quick Installation GuideNote:1. Make sure to use a certified CAT5e/CAT6 Ethernet cable with RJ45 connectors.2. Make sure the length of the Ethernet cable is less than 60 meters (196 ft).3. Not Compatible with Mesh Routers.4. Select the wireless network with a signal strength greater than 70% to get the most reliable connection.5. The outdoor antenna should be installed at a height of 2 meters above the roof or in a high open place for better reception.1200Mbps, Dual Band, 4x High-gain Antennas
WiFi Range Extender Signal Booster for Home, Yard, Backyard,
Garage and Swimming Pool ,ect1. AC1200 Outdoor WiFi Extender- Complies with IEEE 802 11 ac/a/b/g/n standards.
Dual-Band maximum speed up to 5GHz 867Mbps and 2.4GHz 300Mbps.
With abrand-new chip MT7621Aand Easy Mesh supported, it lets youkeep more
devices(64~96)connected simultaneously with the dual bands and enables
Wavlink mesh router /AP/repeater to work together, which is superior choice
for seamless HD streaming, online gaming and other bandwidth-intensive tasks.
2.Multiple Operation Modes & Power Over Ethernet- WN572HP3 supportsMesh Extender Mode,
Access Point (AP) Mode, Router Mode and Repeater Mode. Integrated Power over Ethernet (PoE) supported,
allowing it to be installed in areas where power outlet is not available by combing your power and
network data connection into a single RJ-45 cable.Dual Gigabit 1000Mbps
WAN/LAN Ethernet ports, support 10/100/1000Mbps speeds,10x faster thana standard Ethernet port,
giving you an excellent network speed experience.3.Weatherproof Outdoor WiFi Repeater-IP65-rated Weatherproof & Heat-resistant case
that ensures continued operation on harsh outdoor environments or in climates of extreme cold,
heat or continuous moisture, withstanding broad ranges of humidity and temperature
(-30°C~70°C) (-22°F~158°F); 15KV ESD, 4KV lightning protection, ensure stable connection
in harsh outdoor conditions.Note: The PoE part of the router is not waterproof4.4 x 7dBi Detachable Omni Directional Antennas- Meet outdoor long range coverage
wireless network requirement, cover hard-to-reach dead zones.High Power Amplifiers PA
800mWand enhanced receiver design for more strong penetration
& longer range coverage than the general access point, ideal for providing Wi-Fi service
in big area such as factory, community, street or etc.5.What You Get- All Wavlink products come with a high-quality after-sale service.
Please feel free to contact us anytime if you have any question, we will do our best to help you.
In the Box: AC 1200 Dual Band Outdoor Ap/Range Extender, 2x 2.4 G Omni Antennas,
2x 5G Omni Antennas, 1x RJ 45 Networking Cable, 1x Power Adapter, 1x PoE Converter,
1x Main Body Holder, 2x Cable Ties, 1x Screw Fitting Kit, 1x Quick Start Guide.
Specifications for Outdoor WiFi Range Extender Wireless Signal Booster Dual Band
Frequency & StandardDual Band （2.4GHz & 5GHz）, IEEE 802.11b/g/n/a/acAntennas4 x 7dBi Detachable Omni Directional AntennasInterfaces1 x 1000Mbps LAN，1 x 1000Mbps WAN , 1 x Reset buttonOperation modesRepeater mode, Router mode, Access Point mode, Mesh Extender modeChipsetBrand-new chip MT7621ASecurityWPA-PSK/ WPA2-PSK encryptionPower adapterInput:100-240 Va.c. 50/60Hz ; DC24V / 0.5A Power over Ethernet ( Passive PoE)DistanceOutdoors 200m, Indoor 150m (According to the actual environment change)FunctionTime Setting, DDNS, Static Router, DHCP Server, Wireless SettingInstallation note 1Select the wireless network with a signal strength greater than 70% to get the most reliable connection.Installation note 2The outdoor antennas should be installed at a height of 2 meters above the roof or
in a high open place for better reception.
Package content about WiFi Extender Outdoor Weatherproof
AC 1200 Dual Band Outdoor Ap/Range Extender
2x 2.4 G Omni Antennas
2x 5G Omni Antennas
1x RJ 45 Networking Cable
1x Power Adapter
1x PoE Converter
1x Main Body Holder
2x Cable Ties
1x Screw Fitting Kit
1x Quick Start Guide
ATTENTION:
1. Ensure that you use a certified CAT5e/CAT6 Ethernet cable with RJ45 connectors.2. Make sure the length of the Ethernet cable from POE to the device is less than 60 meters（196 ft).
