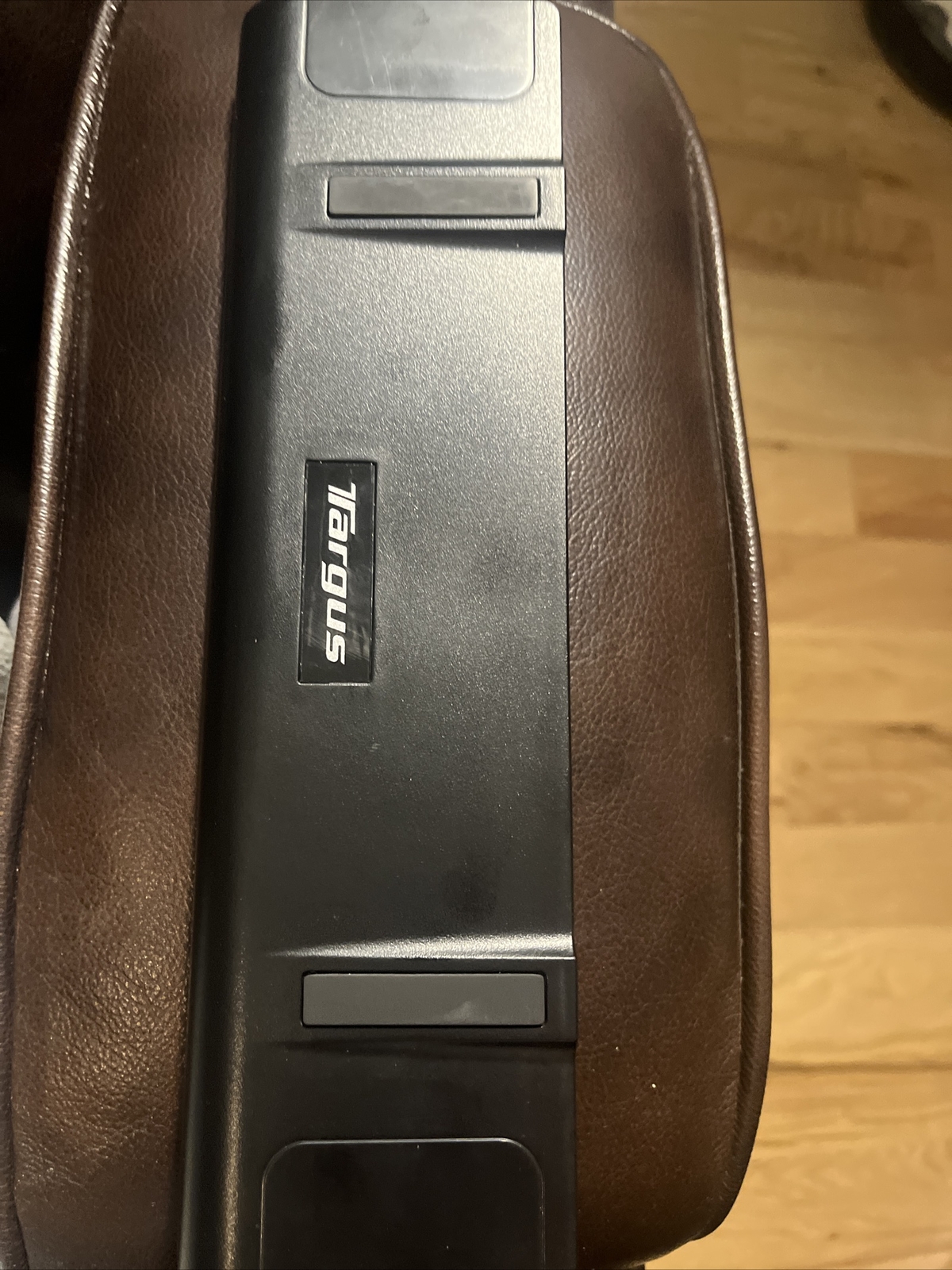

ACP45 Driver (14.2Mb) Targus Universal Docking Station w/digital audio.

Congratulations on your purchase of the Targus Universal Laptop Docking Station. This portable expansion module allows you to connect through a single USB connection up to 4 USB devices, a network (Ethernet/LAN) connection, speakers and microphone, PS/2 mouse and keyboard, and a serial and parallel device. Also, the lock slot and universal lock support provided helps you secure your docking station to your desktop.

The docking station also featuresTargus Always Ontechnology, Targus USB Power Port providing twice the USB specification for higher power requirement devices, and USB ports that are widely spaced to acommodate larger adapters.Targus Always Onprovides power to the USB ports even when the laptop is shut-down, disconnected from the docking station or in hibernate/ stand-by mode. This allows USB devices that charge via the USB port to keep charging under any circumstance.

features

Heat dissipation by natural convection:

Place the back edge of your laptop on the rubber pads of the Docking Station. Most laptops dissipate heat through the bottom and the more air that’s allowed to flow under the bottom, the better chance that heat will dissipate by natural convection.

Comfort

The raised platform also provides a more comfortable position for the hands.

The docking station provides the following ports:

• Two PS/2 ports

• IEEE 1284 DB25 Connector parallel (USB emulated)

• Two 3.5 mm Audio: (1) stereo out and (1) microphone in

• RS232 serial (USB emulated)

• One S/PDIF Digital Audio Output (not supported in Windows 2000)

• RJ-45 Ethernet 10/100

• Four USB 2.0 Ports:

  - Two High-Speed USB 2.0 ports
  - Two High-Speed USB 2.0 Always-On ports with extra

  power
