AD360

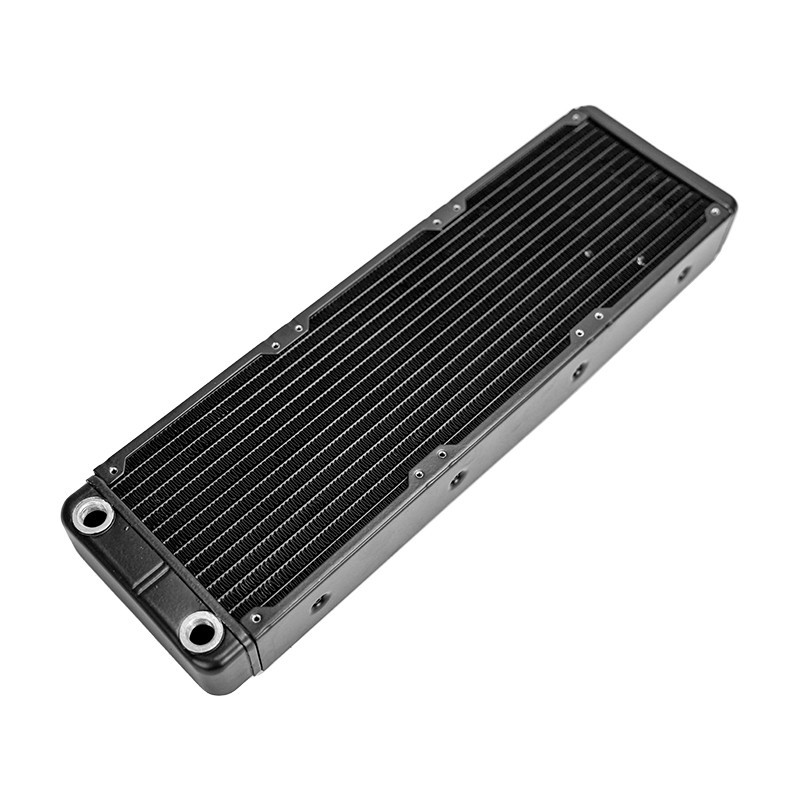

360mm 45mm Thick Aluminum Radiator — 13 Double-Layer Waterways, G1/4
Extra-Thick 45mm — Double-Layer Channels, Toothed Fins, EU RoHS
405x120x45mm
Extra-Thick Build45mm Thick
vs 27mm Standard13 Channels
Double-Layer DesignTooth Fins
Enhanced ContactG1/4 x2
Threaded PortsKey Features📏45mm Extra-Thick — 67% More Thermal Mass Than Standard
At 45mm thick, this is one of the thickest aluminum radiators available. Nearly double the thickness of standard 27mm rads. The extra depth means significantly more fin surface area and sustained cooling under heavy sustained loads.
💧13 Double-Layer Water Channels — Unique Design
Dual-layer water channel architecture maximizes thermal contact surface within the 45mm thickness. Coolant flows through two stacked channel layers, extracting heat from the fin array more efficiently than single-layer designs.
🧮Toothed Fin Design — Enhanced Heat Transfer
Unlike standard flat fins, the AD series uses a toothed (serrated) fin profile that increases air-to-fin contact surface. More turbulence at the fin surface means better heat transfer to the passing airflow — especially effective with low-RPM fans.
💪0.2 MPa Rated — Factory Pressure Tested
Each unit is individually tested to 0.2 MPa before shipping. Built in OCOCOO's source factory with over a decade of cooling expertise. 78 units sold, zero quality complaints.
⚠ Aluminum Only:Never mix with copper/brass loop components. Use all-aluminum fittings and coolant.Technical (LxWxH)405 x 120 x 45 mmThickness45 mm — Extra-ThickMaterialPure aluminum (toothed fins)Waterways13 double-layer channelsConnectorG1/4 thread x 2 portsFan Support3 x 120mm fansMax Pressure0.2 MPaCertificationEU RoHSPlease Note:Fittings, fans, tubing, coolant NOT included. Screws designed for standard 25mm-thick 120mm fans. For thinner fans, ensure screws do not protrude more than 5mm past fan surface.
Need a thick 360mm aluminum rad with double-layer cooling?
Message us for bulk pricing!
