The ADLink Express-ADP i7-12800HE retails at approximately $1,100+ new from
industrial distributors. The i5-12600HE variant of this same module lists for
over $1,100 on Mouser — this is the higher i7 SKU.The Innodisk 32GB DDR5 5600MHz SO-DIMM installed on this unit is an industrial-grade
stick retailing at $1,450–1,600 new. Innodisk suspended DDR5 shipments in Q1 2026 due to
supply constraints — these are not easy to source right now.Combined new value of what you are receiving: approximately $2,550–$2,700.
Asking price: $875.This is a POST-verified, working unit — not an untested surplus COMPUTE MODULE SPECS• Manufacturer: ADLink Technology — Express-ADP Series
• Form Factor: COM Express Type 6 Basic (125 x 95mm)
• Spec Revision: PICMG COM.0 Rev. 3.1
• CPU: Intel Core i7-12800HE (BGA soldered)
– 14 cores / 20 threads (6 P-cores + 8 E-cores, Alder Lake hybrid)
– Base: 2.4GHz | Boost: up to 4.6GHz
– Cache: 24MB Intel Smart Cache
– TDP: 45W — industrial embedded variant, rated for 24/7 continuous operation
• Graphics: Intel Iris Xe — 96 EU, quad 4K60 display support
• Networking: Intel I225 2.5GbE + Intel GbE (dual NIC onboard)
• PCIe: Gen4 lanes via 440-pin COM Express connector
• I/O: 4x USB 3.2, 4x USB 2.0, 2x SATA III, 2x UART, 8x GPIO
• Storage: Onboard M.2 2242/2280 slot (Key M, NVMe capable)
• Memory slots: 2x DDR5 SO-DIMM — one populated, second slot open
• Connector: Samtec QSH/QTH 440-pin (2x 220-pin)
• Operating Temperature: 0°C to 60°C industrial
• SEMA Board Controller onboard (watchdog, health MEMORY INCLUDED• Brand: Innodisk — Taiwan industrial DRAM manufacturer
• Capacity: 32GB DDR5 SO-DIMM
• Speed: 5600MHz (PC5-44800)
• Grade: Industrial
– Anti-sulfuration conformal coating
– Wide-temperature rated
– Long-lifecycle industrial sourcing
– Not consumer RAM — same grade used in defense, medical,
and automation platforms
• New retail: $450–600 from industrial distributors
• Second SO-DIMM slot open — expandable to 64GB dual-channel TESTED & VERIFIED✔ POST-verified on COM Express Type 6 Basic carrier board
✔ All 14 cores confirmed present in BIOS
✔ 32GB DDR5 5600MHz validated at rated speed
✔ No thermal, electrical, or mechanical anomalies detected

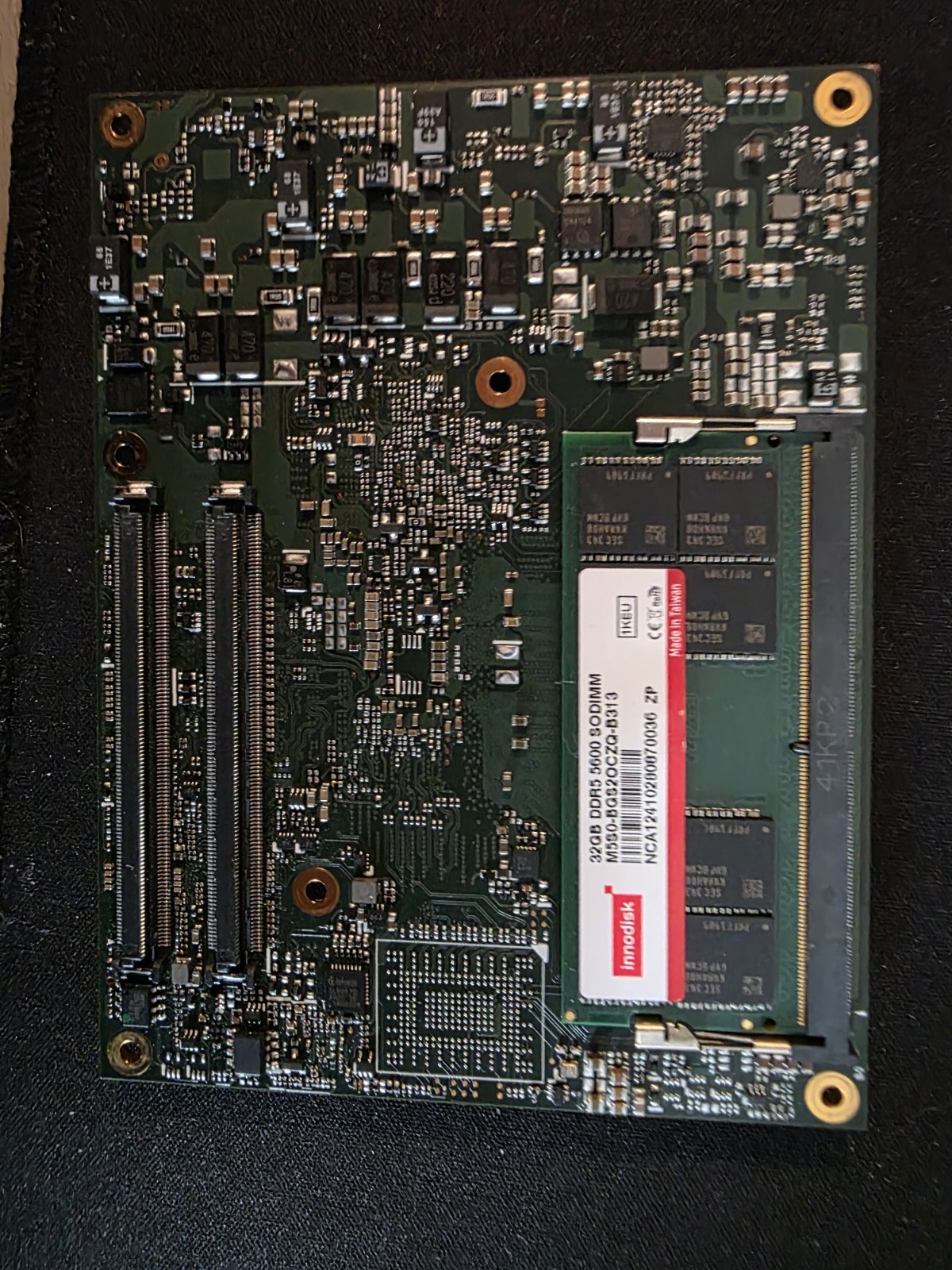

✔ 440-pin connector inspected — clean, no WHAT YOU RECEIVE• 1x ADLink Express-ADP i7-12800HE COM Express Type 6 module
• 1x Innodisk 32GB DDR5 5600MHz SO-DIMM (installed)
• No carrier board, no SHIPPINGShipped in anti-static bag inside foam-padded box.
Fully insured. Tracked shipping only.
USA standard. International — message for quote before purchasing.▶ MULTIPLES AVAILABLE
7 units of this exact configuration available.
Message for lot pricing on 2 or more — happy to discount.▶ RETURNS
No returns. Item tested working as described.
Please read fully and ask all questions before SPECIFICS:
• Brand: ADLink
• MPN: Express-ADP-i7-12800HE
• Form Factor: COM Express Type 6 Basic
• Processor: Intel Core i7-12800HE
• Cores: 14
• Threads: 20
• RAM Installed: 32GB DDR5 5600MHz Innodisk
• Max RAM: 64GB DDR5
• Condition: Used / Tested Working / POST Verified
• Compatible Carrier: COM Express Type 6 Basic
