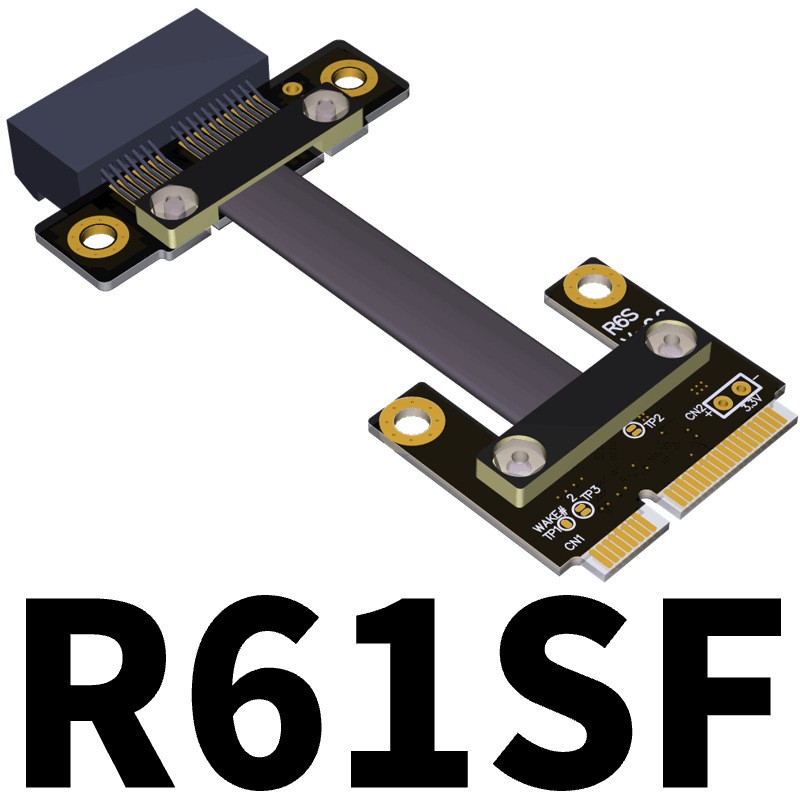

ADT R61 mPCIe to PCIe x1 Riser Cable, PCIe 3.0, for WiFi Card, Custom Length 3cm~100cm

Product Overview

Brand: ADT
Model: R61 Series
Product Name: mPCIe Adapter Extension Cable
Bandwidth: PCIe 3.0 x1, 8Gbps full speed stable transmission
Cable Length: 3cm -100cm, custom length available
Application: Convert motherboard mPCIe interface to PCI-E X1, suitable for WiFi cards

This item is engineered for professional engineers only. It is NOT for general consumer use.

Included Accessories

A SATA power adapter cable is included in every package. It must be connected to supply 12V power.

Product Advantages

1. Premium Cable & ConnectorUses imported German patented flat cable and Taiwan imported connectors, supports stable full-speed PCIe 3.0 (8G/bps) transmission. Custom lengths from 3cm up to 100cm. Low impedance cable, full PCIe3.0 speed supported for lengths ≤60cm.
2. Via-less Differential Signal DesignEliminates signal attenuation & interference caused by parasitic capacitance and inductance. Prevents CAF micro-short circuit for long service life.
3. High-Grade PCB & Gold FingerPrecision PCB fabrication with 1oz thick copper. Gold-plated fingers with sufficient gold content deliver excellent conductivity, reducing blue screen & crash risks from oxidation and rising impedance.
4. Robust Mechanical Structure3mm thick PCB pads reinforce metal solder joints, secured with screws & hex nuts. Tensile resistant, anti-interference, prevents broken wires or pad lifting. The flat cable is bendable without performance impact.
5. Low-Profile & Enlarged PCB DesignLow-profile design avoids GPU blocking. Enlarged & lengthened PCB makes installation easier and lowers risk of damage.

Bracket Option

The board ships with half-height bracket by default.If you need a full-height bracket, leave a note: Include Full Height Bracket during checkout, we will send the full-height bracket for free. Once fitted, it works with full-height slots.

Cable Spec & Shielding

• Cable thickness: 1.4mm, relatively rigid but bendable for installation.
• No metallic foil shielding. Adopts advanced EMI shielding conductive polymer flat cable.Conductive polymer fully covers each cable for EMI protection, blocks incoming/outgoing RF interference, minimizes performance degradation and keeps the extender lightweight.

FAQ

Q1: Why do cheap PCIe risers crash or blue-screen after less than 1 year?A: All PCIe risers look similar, but material quality and PCB design differ greatly. Poor PCB material and bad design plus harsh operating environments trigger CAF micro-shorts, causing system instability. Our products use high TG160 grade PCB and refined manufacturing to minimize failure risk under tough working conditions.

Q2: What about cable quality and shielding?A: No metal foil shield. We adopt advanced EMI conductive polymer shielding on flat cable. It provides full electromagnetic interference coverage, suppress RF noise, reduce performance loss and keep the extender light weight.

Q3: Cable thickness, flexibility?A: 1.4mm thick, relatively stiff, but bendable and works normally after bending.

Important Purchase Notes (Critical Warning)

1. Check orientation before plugging inAlways confirm the correct direction. Reverse or offset insertion will burn your hardware. Hold the socket firmly while plugging; do not apply excessive force to avoid breaking socket pins.
2. Signal loss exists for all extension cables.Motherboards & devices have different signal driving capability. Our internal test results do not guarantee identical results on your hardware. If zero signal loss is required, do NOT purchase.
3. Aging electronics not supportedNetwork cards and motherboards degrade & oxidize over time. This product is NOT compatible with hardware older than 4 years. Do not buy for aged devices.
4. Professional-use onlyFor qualified engineering purchasers only. Do NOT buy if you lack DIY assembly skills.
5. Interface CompatibilityThe mPCIe layout varies on different motherboards.

• NOT support WWAN (3G cellular card) interface
• NOT support mSATA (SSD) interface
• ONLY works for mPCIe WIFI card interface

6. Compatibility riskAll riser adapters carry compatibility risks. Verify compatibility with your motherboard and devices before ordering. Do not purchase if you cannot confirm compatibility.
7. Interface ConfirmationThis riser only works with mini PCI-E WiFi port. Please confirm your motherboard has this exact interface before checkout.
8. BIOS Whitelist Warning for LaptopsHP and Lenovo laptops have known BIOS whitelist restrictions which may block your WiFi card. Verify laptop + card compatibility before buying.
