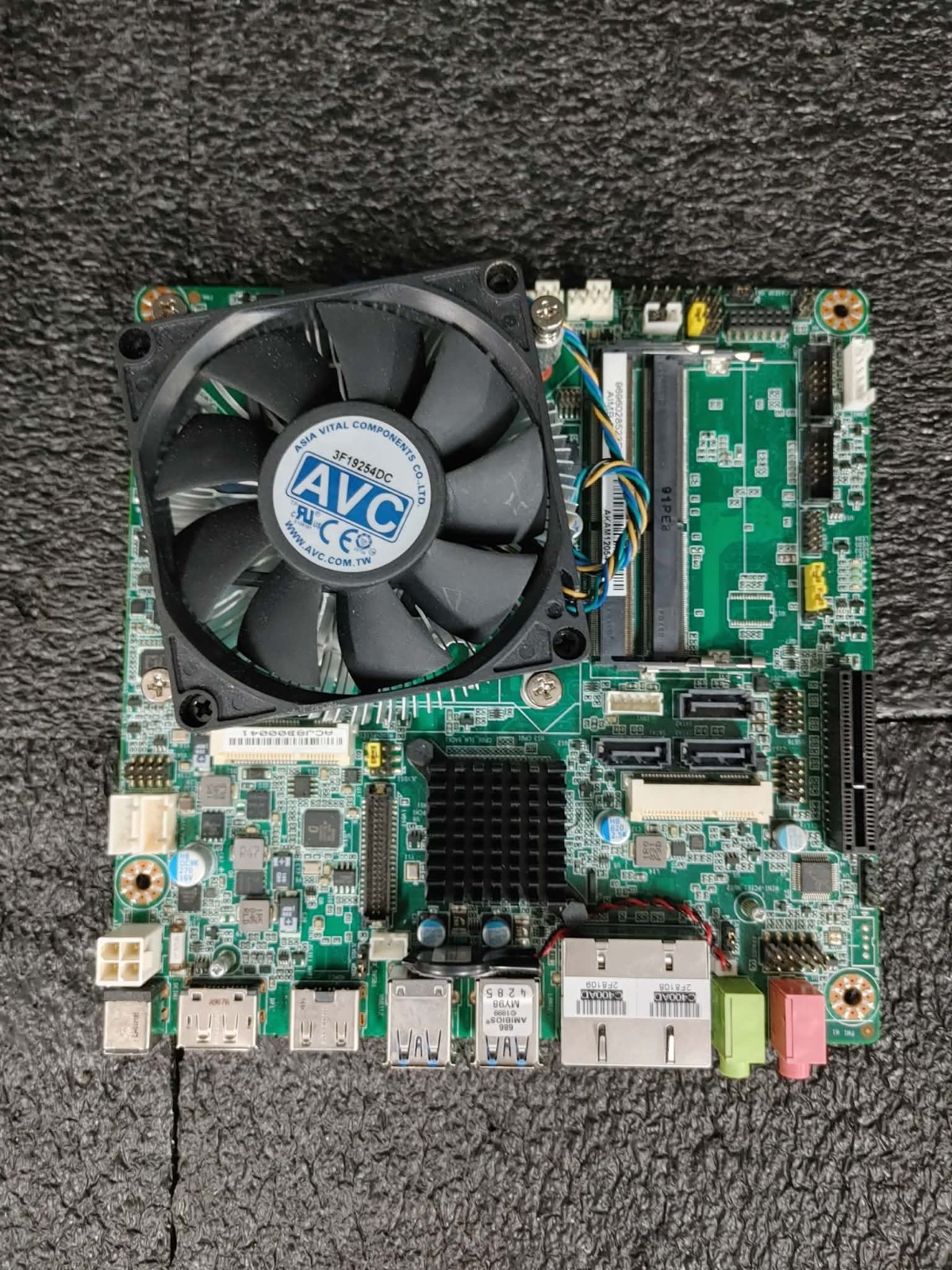

ADVANTECH AIMB-285 Mini-ITX H110 Intel DDR4 Industrial Motherboard

no CPU/Memory is included

Working Pull, Tested and Functional.Advantech AIMB-285 — Key Specifications

• Form factor: Mini-ITX, 170 × 170 mm
• CPU socket: LGA1151
• Chipset: Intel H110
• CPU support: Intel 6th/7th Gen Core i7/i5/i3, Pentium, Celeron
• Memory: 2 × 260-pin SO-DIMM
• RAM: Up to 32 GB DDR4
• Memory speed: DDR4-2133/2400, depending on CPU/configuration
• Expansion: 1 × PCIe x4; 2 × Mini PCIe on G2 versions
• Storage: 3 × SATA III (6 Gb/s); mSATA supported through Mini PCIe
• LAN: 2 × Gigabit Ethernet
• USB: 4 × USB 3.0 + 4 × USB 2.0 internal headers
• Display: HDMI, DisplayPort, VGA; dual-display capable
• Serial: 2 × COM, including RS-232/422/485 support
• Audio: HD Audio / Realtek codec
• GPIO: 8-bit GPIO
• Power: 12V DC input / ATX power depending on version
• Operating temperature: 0–60°C
• Industrial features: Watchdog timer, optional TPM, wide I/O connectivity.

WAREHOUSE LOCATION: A-4-TOP
Please see pictures of this item!Please Note the following:1. Fast shipping.2. If you have any questions regarding this item, please contact me _before_ check SH via shipping calculator. Expedited shipping can be arranged upon requestOther Notes of InterestShipments : All items will ship within 1 business days of payment receipt.Please see actual pictures. There’s no other parts, manuals, software include
