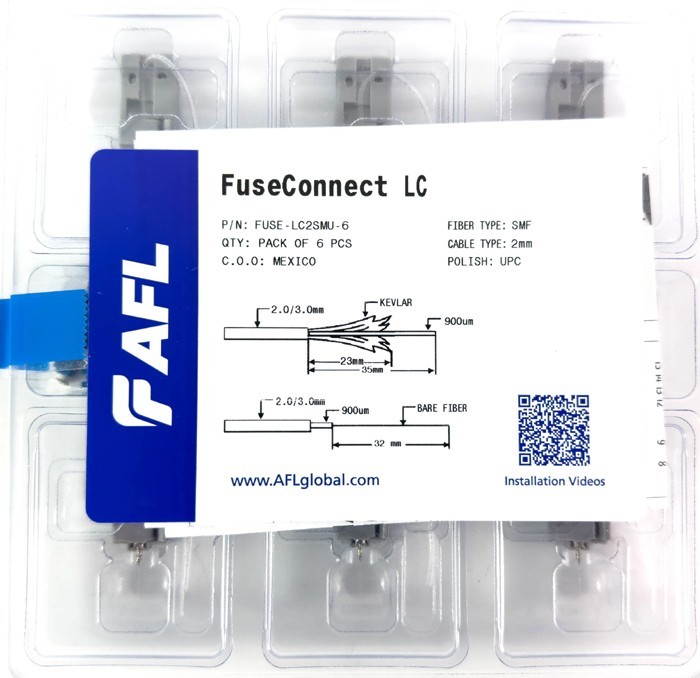

Part # FUSE-LC2SMU-6

These fiber optic FUSEConnect fusion-spliced LC connectorsare factory pre-polished, field-installable connectors that completelyeliminate the need for hand polishing in the field. FUSEConnect Connectors arecompatible with 900 µm optical fibers, as well as 2 mm and 4.8 mm cordage. Theconnectors are color coded per industry standard requirements to aid inidentification during and after installation. They utilize a fusion splicer toterminate the connector in the field, addressing return loss concerns presentin analog optical networks.

Features

• Field installable
• No adhesives, crimping or polishing
• True UPC performance
• Compatible with most fusion splicers

Applications

• Connectorization in RF-overlay FTTP networks
• Connectorization in cable TV backbone networks
• Connectorization in outside plant
• Connectorization in FTTDesk
• Connectorization in MDU FTTP cabling
• Data center installation
• Central office connector replacement

Physical Characteristics

Color

Blue

Cable Diameter

900um

Fiber Size

9/125 micron

Fiber Type

Singlemode

Operating Temperature

-40°C to +75°C

Fiber Classification

SM

AFL P/N

FUSE-LC2SMU-6

Connector

Connector

LC Simplex Male

Performance

Insertion Loss

Average: 0.15 dB, Maximum: 0.25 dB

Return Loss

≤ -55 dB

Package Information

Package Quantity

6
