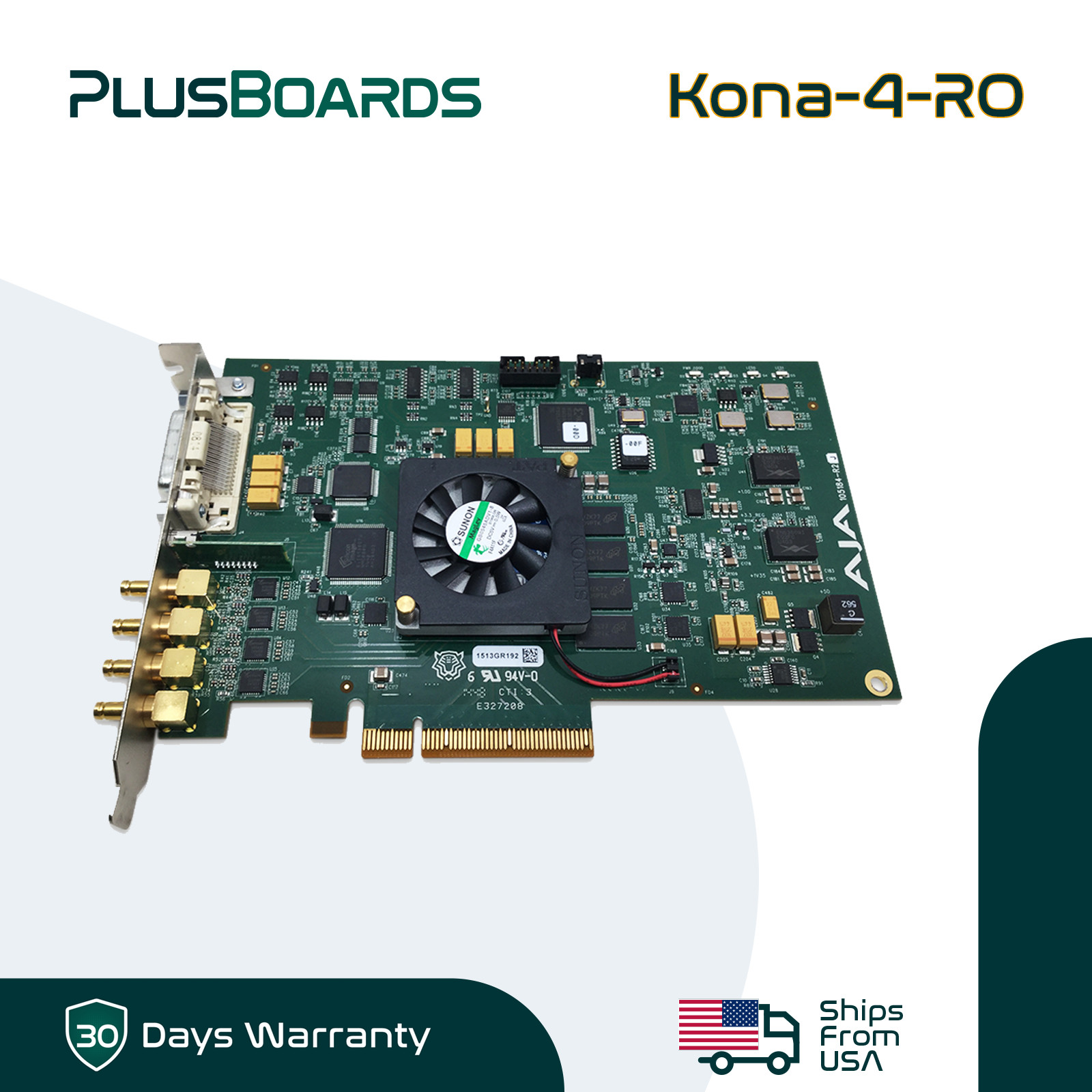

AJA KONA 4-RO 4k 4 channel SD HD FHD 3g-SDI HDMI input Video Capture Card PCIeTECHNICAL SPECIFICATIONS Brand: AJA Model: KONA 4-R0 Type: Professional Video I/O (Input/Output) Card
Video Formats: -(4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
-(UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
-(2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
-(2K) 2048 x 1080PsF 23.98, 24, 25
-(HD) 1080i 50, 59.94, 60
-(HD) 1080PsF 23.98, 24, 25, 29.97, 30
-(HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
-(HD) 720p 23.98*, 24*, 25*, 29.97*, 30*, 50, 59.94, 60
-(SD) 625i 50
-(SD) 525i 23.98*, 59.94
*These formats are dependent on specific software functionality and arenot normal over the wire formats. Video Input Digital: -3G-SDI, SMPTE 425
○RGB 4:4:4 12-bit*, YCbCr 4:2:2 10-bit
-1.5G-SDI, SMPTE 292M
○Single Link HD-SDI YCbCr 4:2:2 10-bit
○Dual Link RGB 4:4:4 12-bit*, Dual Link YCbCr 4:2:2 10-bit
-270 Mbps SDI, SMPTE 259M-C
○YCbCr 4:2:2 10-bit, 8-bit
*Bit depth support is application dependent. Check with your softwaremanufacturer for compatibility Video Output
Digital: -3G-SDI, SMPTE 425
○RGB 4:4:4 12-bit*, YCbCr 4:2:2 10-bit
-1.5G-SDI, SMPTE 292M
○Single Link HD-SDI YCbCr 4:2:2 10-bit
○Dual Link RGB 4:4:4 12-bit*, Dual Link YCbCr 4:2:2 10-bit
-270 Mbps SDI, SMPTE 259M-C
○YCbCr 4:2:2 10-bit, 8-bit
-HDMI v1.4b
○30/36-bits/pixel, RGB or YUV, 2.25 Gbps
○2K, HD, and SD with HFR support up to 60p 4:2:2 10-bit
○4K/UltraHD with LFR support up to 60p 4:2:2 10-bit and HFRsupport up to 60p 4:2:0 8-bit
*Bit depth support is application dependent. Check with your softwaremanufacturer for compatibility. Power: 22W typical, 24W maximum ABOUT USAbout Us
