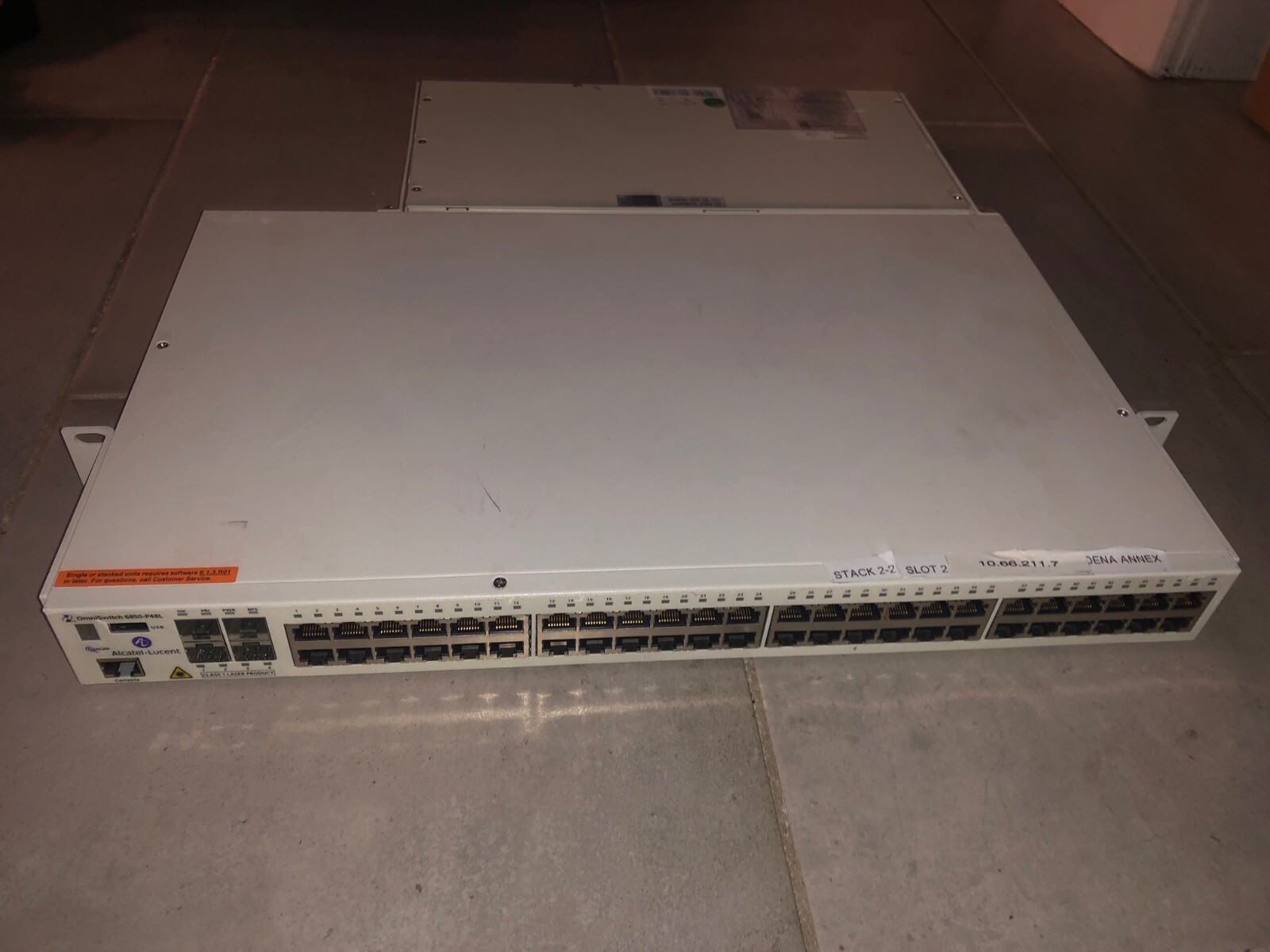

The OS6850 switch family addresses the needs of modern enterprise and triple-play
networking: flexible, stackable configuration; Power over Ethernet, high
availability, first-packet wire-speed performance, and dramatically improved
network response time.Similar to the existing Alcatel OmniSwitch, the OS6850
series uses the Alcatel Operating System (AOS). This ensures an easy and
economical way to upgrade or deploy an Ethernet network. The flexible
configuration options offered by the OS6850 family make them suitable for a
small/medium network in the core or at the edge of a large network. Plus, the
OS6850 is future-proof for networks with native support of IPv4 and IPv6
switching.

Product Identifiers
Brand Alcatel-Lucent
Model 6850-48L
MPN OS6850-P48L-US

Key Features
Form Factor External
Ports Qty 44
Data Transfer Rate 100 Mbps
Data Link Protocol Ethernet, Fast Ethernet
Compatibility PC

Features
Other Features Flow control, layer 3 switching, layer 2 switching, IP-routing,
DHCP support, power over Ethernet (PoE), auto-negotiation, BOOTP support, ARP
support, LDAP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping,
Syslog support, port mirroring, DiffServ support, manageable, MAC address
filtering, Broadcast Storm Control, IPv6 support, High Availability, firmware
upgradable, DHCP snooping, Access Control List (ACL) support, Quality of Service
(QoS), MLD snooping, DNS proxy, Virtual Chassis technology
Status Indicators Port status, link activity, power, system

Networking
Networking Type Switch
Connectivity Technology Wired
Switching Protocol Ethernet
Remote Management Protocol HTTP, HTTPS, RMON 1, RMON 2, RMON 3, RMON 9, SNMP
1, SNMP 2, SNMP 2c, SNMP 3, SSH, Telnet
Power Over Ethernet (PoE) Yes
Routing Protocol IGMP, IGMPv2, IGMPv3, IS-IS, MLD, OSPFv2, PIM-SM, RIP-1,
RIP-2, RIPng, SAP, VRRP
Stackable Stackable

Connectors
Interfaces 1 x USB - 4 pin USB Type A female, 1 x management - console - RJ-
45 female, 2 x network stack device, 4 x network - Ethernet 10Base-T/100Base-
TX/1000Base-T - RJ-45 female, 44 x network / power - Ethernet 10Base-T/100Base-TX
- RJ-45 female

Power
Power Consumption Operational 367 Watt
Power Source AC 120/230 V ( 50/60 Hz )
Power Supplay Power supply - hot-plug / redundant - external

Technical Features
Encryption Algorithm DES, MD5, PKI, RC2, RC4, SSL, Triple DES

Memory
Flash Memory 64 MB flash
RAM Memory 256 MB SDRAM

Dimensions
Width 17.32 in.
Height 1.73 in.
Depth 10.63 in.
Weight 9.48 lbs
