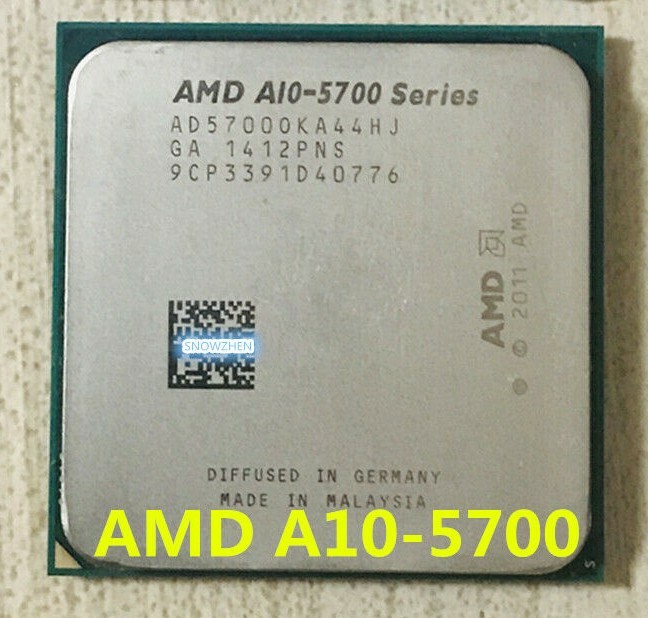

General information Type CPU / Microprocessor Market segment Desktop Family AMD A10-Series Model number? A10-5700 CPU part numbers
Frequency? 3400 MHz Maximum turbo frequency 4000 MHz Package 904-pin organic lidded micro Pin Grid Array (UOF904) Socket Socket FM2 Size 1.57" x 1.57" / 4cm x 4cm Weight 1.4oz / 39g (CPU)
9.5oz / 269.4g (box) Fan/heatsink Z7LH01R201 Introduction date July 2012 (shipped in OEM PCs)
October 2, 2012 (boxed processors) Price at introduction $122 Architecture / Microarchitecture Microarchitecture Piledriver Platform Virgo Processor core? Trinity Core stepping? TN-A1 CPUID 610F01 Manufacturing process 0.032 micron
1303 million transistors Die 246mm2 Data width 64 bit The number of CPU cores 4 The number of threads 4 Floating Point Unit Integrated (shared between two cores in each module) Level 1 cache size? 2 x 64 KB 2-way set associative shared instruction caches
4 x 16 KB 4-way set associative data caches Level 2 cache size? 2 x 2 MB 16-way set associative shared exclusive caches Level 3 cache size None Cache latency 3 (L1 cache) Multiprocessing Uniprocessor Features
- MMX instructions
- Extensions to MMX
- SSE / Streaming SIMD Extensions
- SSE2 / Streaming SIMD Extensions 2
- SSE3 / Streaming SIMD Extensions 3
- SSSE3 / Supplemental Streaming SIMD Extensions 3
- SSE4 / SSE4.1 + SSE4.2 / Streaming SIMD Extensions 4?
- SSE4a?
- AES / Advanced Encryption Standard instructions
- AVX / Advanced Vector Extensions
- BMI1 / Bit Manipulation instructions 1
- F16C / 16-bit Floating-Point conversion instructions
- FMA3 / 3-operand Fused Multiply-Add instructions
- FMA4 / 4-operand Fused Multiply-Add instructions
- TBM / Trailing Bit Manipulation instructions
- XOP / eXtended Operations instructions
- AMD64 / AMD 64-bit technology?
- AMD-V / AMD Virtualization technology
- EVP / Enhanced Virus Protection?
- Turbo Core 3.0 technology
Low power features
- Core C1, C1E, C6 and CC6 states
- Package S3, S4 and S5 states
- PowerNow!
Integrated peripherals / components Integrated graphics GPU Type: Radeon HD 7660D
Shader cores: 384
Base frequency (MHz): 760 Memory controller The number of controllers: 1
Memory channels: 2
Supported memory: DDR3-1866
Maximum memory bandwidth (GB/s): 29.9 Other peripherals
- PCI Express 2.0
- Unified Video Decoder 3.2?
Electrical / Thermal parameters V core? 0.825V - 1.475V Maximum operating temperature? 71.3°C Thermal Design Power? 65 Watt
