AMD Athlon K6-3+ 400 ATZ WPAW CPU works at 550Mhz 2.2V
This CPU is anAMD Athlon K6-3 400+ ATZ WPAWCPU and ist new old stock (never used).
I tested some of these CPUs (I have several) on a Super Socket 7 mainboard (Epox EP-MVP3G5) and it is running fine at 550 Mhz in my tests.
Check your board to make sure it will support the low 1.6V voltage of this CPU, or use a higher voltage with higher clocks like 500Mhz or 550Mhz.
This makes it oneof the fasted available CPUs for Super Socket 7 mainboards. This K6-III+ is one of the most efficient Socket 7 CPUs and has it´s own L2 Cache. The mainboard cache will be used as L3 cache which allows not only high performance but a maximum memory footprint. In other words: You can install as much memory as you want without performance degradation observed otherwise, e.g. with a K6-2 CPU.
This AMD K6-3+ CPU which is even better than normal K6-3 CPUs.
While the CPU is listed as "embedded" it works with all mainboards which will work with the regular K6-3 CPUs
Same features, lower energy and voltage requirement.
It has a TDP of only 9.5 watts and will work with passive cooling.
At least with it´s stock 400 Mhz clock. If you set higher clocks like 550Mhz you will need cooling of course.

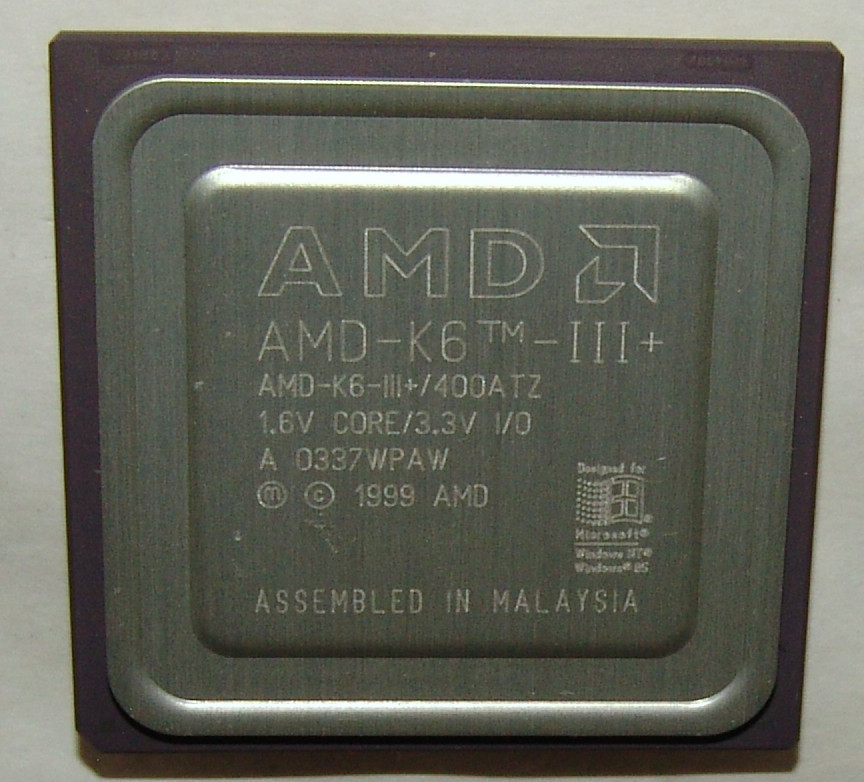

Under the picture you can find the specs of this CPU.
General informationTypeCPU / MicroprocessorMarket segmentEmbeddedFamilyAMD K6-IIIE+CPU part number
- K6-III+/400ATZ is an OEM/tray microprocessor
Frequency400 MHzBus speed100 MHzClock multiplier4Package321-pin ceramic staggered PGA
1.95" x 1.95" (4.95 cm x 4.95 cm)SocketSuper 7Introduction dateSep 25, 2000Price at introduction$89Architecture / MicroarchitectureInstruction setx86MicroarchitectureK6Manufacturing process0.18 micronData width32 bitFloating Point UnitIntegratedLevel 1 cache size32 KB 2-way set associative instruction cache with additional 20 KB pre-decode cache
32 KB 2-way set associative dual-ported writeback data cacheLevel 2 cache size256 KB full-speedPhysical memory4 GBExtensions & Technologies
- MMX instructions
- 3DNow! technology
- Extensions to 3DNow!
Low power featuresPowerNow!Electrical / Thermal parametersV core1.6V ± 0.1VMin/Recommended/Max V I/O or secondary3.135V / 3.3V / 3.6VMinimum/Maximum operating temperature0°C - 85°CTypical/Maximum power dissipation7.1 Watt / 9.5 Watt International shipping
