Manufacturer: APC

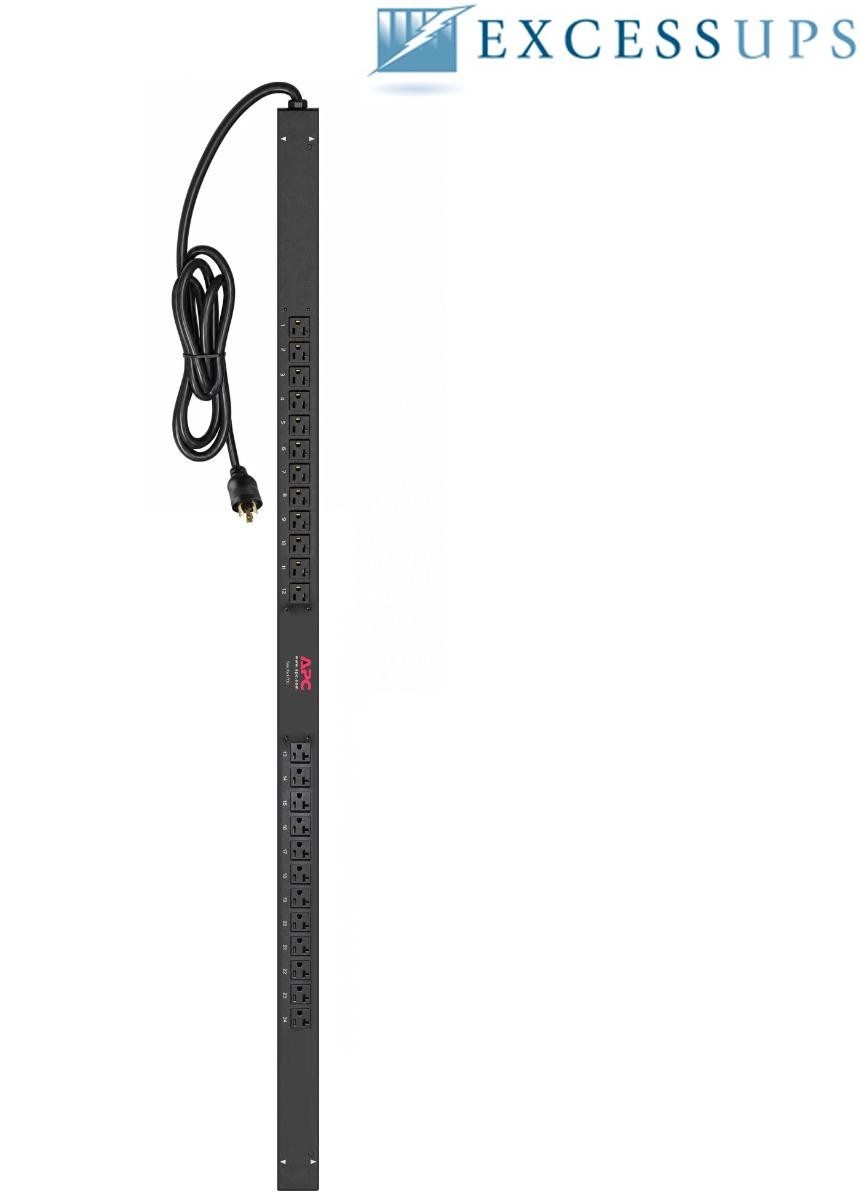

Model: APC Rack PDU Basic, Zero U, 20A, 100–120V
Condition: Refurbished PDU
Part Number: AP7530
Input: NEMA L5-20P, 100–120V AC / 20A
Output: (24) NEMA 5-20R
Load Capacity: 1920VA
PDU Type: Basic
Rated Current: 16A
Maximum Input Current: 20A
Form Factor: Vertical Zero U
Network Management: None
Outlet Switching: No
Load Monitoring: No
Protection: No Circuit Breaker
Warranty: 1 Year Full Replacement Warranty
Description: The APC AP7530 is a Basic Zero U rack PDU designed for reliable power distribution in 100–120V rack environments. It features a NEMA L5-20P input and (24) NEMA 5-20R outlets, providing up to 1920VA of power capacity with a 20A input current limit and 16A rated operating current. Its vertical Zero U design mounts along the side of the rack without consuming equipment rack space, making it suitable for servers, switches, networking equipment, and other IT hardware. As a Basic PDU, the AP7530 provides straightforward power distribution without network management, remote outlet switching, or load metering. Refurbished and backed by a 1 Year Full Replacement Warranty. The current Schneider datasheet confirms the 100/120V input, L5-20P connection, 24 NEMA 5-20R outlets, 1920VA capacity, 20A input limit, 16A rated current and Zero U configuration.
APC Rack PDU Basic, Zero U, 20A, 100–120V - User Manual
AP7530 - APC Rack PDU Basic / Schneider ElectricProduct FamilyRack PDUModelAP7530Product TypePower Distribution Unit (PDU)PDU TypeBasicForm FactorZero U / 0UInstallationVertical RackmountMain Input Voltage100V / 120VMain Output Voltage120VLoad Capacity1920VARated Current16AInput Current Limit20AMaximum Current Draw16AInput ConnectionNEMA L5-20POutput Receptacles(24) NEMA 5-20RTotal Outlets24Network Frequency50/60 HzColorBlackConditionRefurbished PDUWarranty1 Year Full Replacement Warranty Input Nominal Input Voltage100V / 120V ACPermissible Input Voltage100–120V ACInput ConnectionNEMA L5-20PInput Frequency50/60 HzInput Current Limit20ARegulatory Derated Input Current16ARated Current16AMaximum Current Draw16ALoad Capacity1920VANumber of Power Cords1Input Cord Length9.8 ft (3 m) Output Nominal Output Voltage120V ACOutput Receptacle TypeNEMA 5-20ROutput Receptacles(24) NEMA 5-20RTotal Output Receptacles24Maximum Total Current Draw16APDU Output TypeBasic Power DistributionIndividual Outlet SwitchingNoRemote Outlet SwitchingNoRemote RebootNoOutlet Power CyclingNoCircuit Breaker ProtectionNoProtection TypeWithout Circuit Breaker Metering & Power Monitoring Current MeteringNoLoad MeteringNoReal-Time Load MonitoringNoPer-Outlet MeteringNoRemote Load MonitoringNoLoad Threshold AlertsNoEnergy MonitoringNo Communications & Management Network ManagementNoneBuilt-In Network InterfaceNoNetwork Management CardNot Supported / Not Required for Basic PDU OperationEthernet PortNoWeb ManagementNoSNMP ManagementNoSSH ManagementNoTelnet ManagementNoRemote MonitoringNoRemote Outlet ControlNoRemote RebootNoEnvironmental MonitoringNoUSB ManagementNoSerial ManagementNo Power Management Features Basic Power DistributionYesIndividual Outlet SwitchingNoOutlet SequencingNoRemote Power On / OffNoRemote Power CyclingNoRemote RebootNoLoad MonitoringNoNetwork ManagementNoRack-Level Power DistributionYes Physical Form FactorZero U / 0URack Units0UMounting ModeRack-MountedMounting PositionVerticalMounting LocationSideHeight63.7 in (1619 mm / 161.9 cm)Width2.2 in (56 mm / 5.6 cm)Depth1.7 in (44 mm / 4.4 cm)Net Weight10.71 lb (4.86 kg)ColorBlackCable Length9.8 ft (3 m)Number of Cables1Rack Mounting BracketsIncludedToolless Mounting KitIncludedCord Retention Temperature23–113°F (-5–45°C)Operating Relative Humidity5–95%Operating Altitude0–15,000 ftStorage Temperature-13–149°F (-25–65°C)Storage Relative Humidity5–95%Storage Altitude0–50,000 ft (0–15,240 m) Conformance cUL ListedYesUL ListedYesCSA StandardCSA C22.2 No. 60950-1-03UL StandardUL 60950-1EU RoHSCompliantREAChFree of Substances of Very High Concern Above Threshold Packaging Package TypePCEUnits per Package1Shipping Height84.02 in (213.4 cm)Shipping Width5.0 in (12.7 cm)Shipping Depth / Length6.0 in (15.2 cm)Shipping Weight12.72 lb (5.77 kg)SCC14731304207962 Condition & Warranty PDU ConditionRefurbishedWarranty1 Year Full Replacement WarrantyAdditional WarrantyAvailable
